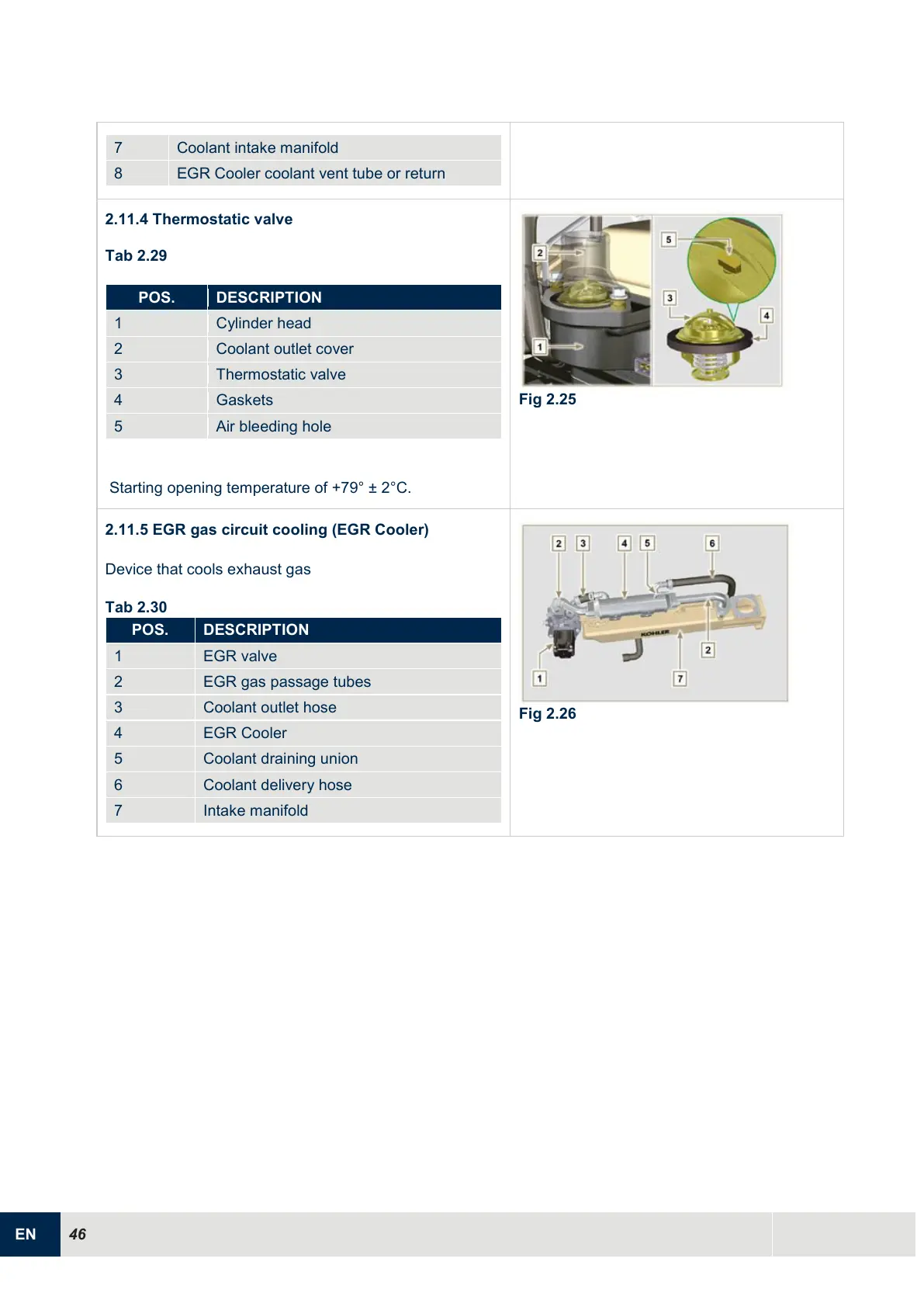

Kohler KDI 1903 TCR Workshop Manual

EN
46
7
Coolant intake manifold
8
EGR Cooler coolant vent tube or return
2.11.4 Thermostatic valve
Tab 2.29
POS.
DESCRIPTION
1
Cylinder head
2
Coolant outlet cover
3
Thermostatic valve
4
Gaskets
5
Air bleeding hole
Starting opening temperature of +79° ± 2°C.
Fig 2.25
2.11.5 EGR gas circuit cooling (EGR Cooler)
Device that cools exhaust gas
Tab 2.30
POS.
DESCRIPTION
1
EGR valve
2
EGR gas passage tubes
3
Coolant outlet hose
4
EGR Cooler
5
Coolant draining union
6
Coolant delivery hose
7
Intake manifold
Fig 2.26
