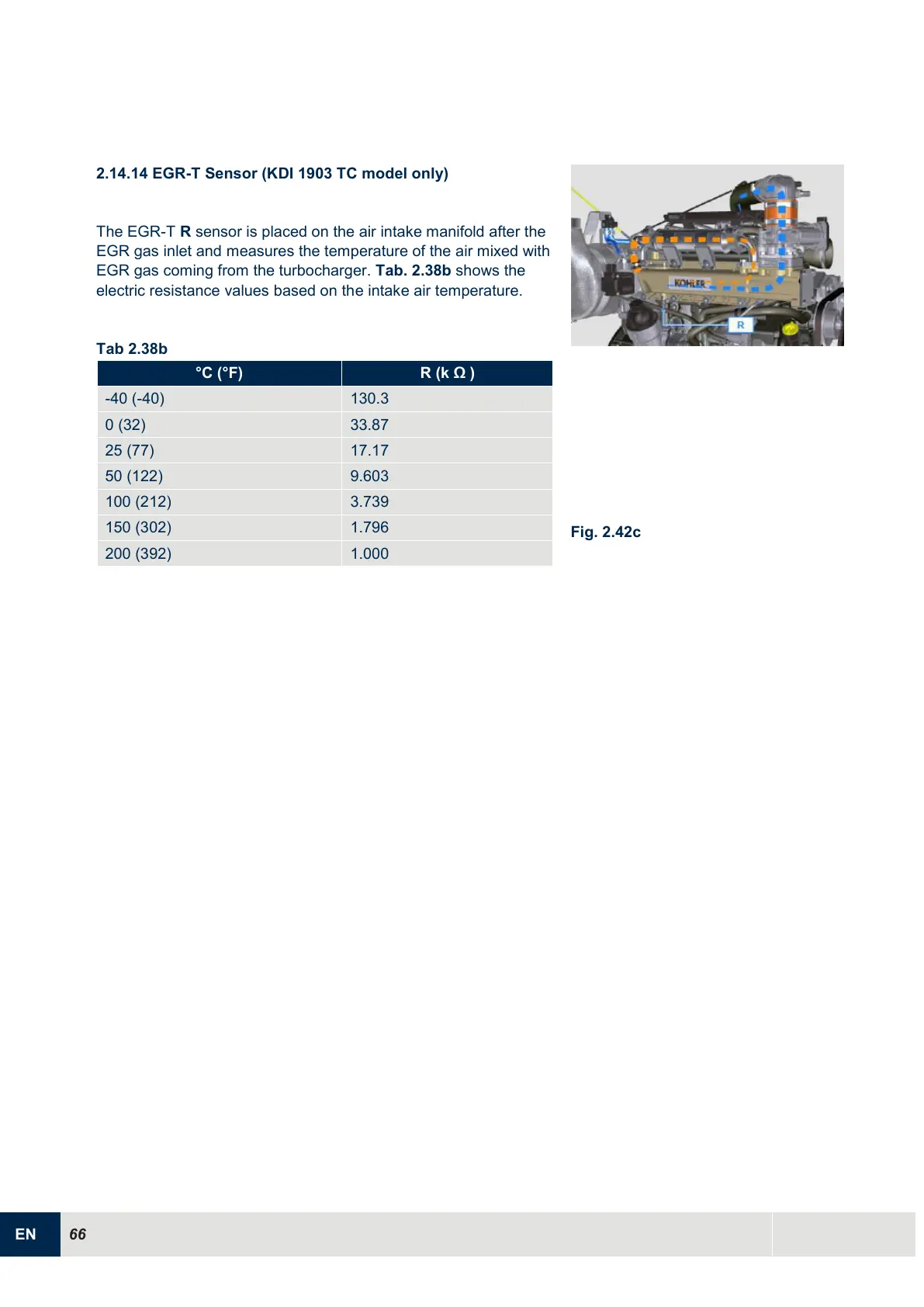

2.14.14 EGR-T Sensor (KDI 1903 TC model only)
The EGR-T
R
sensor is placed on the air intake manifold after the
EGR gas inlet and measures the temperature of the air mixed with
EGR gas coming from the turbocharger.
Tab. 2.38b
shows the
electric resistance values based on the intake air temperature.
Tab 2.38b
°C (°F)
R (k Ω )
-40 (-40)
130.3
0 (32)
33.87
25 (77)
17.17
50 (122)
9.603
100 (212)
3.739
150 (302)
1.796
200 (392)
1.000
Fig. 2.42c
