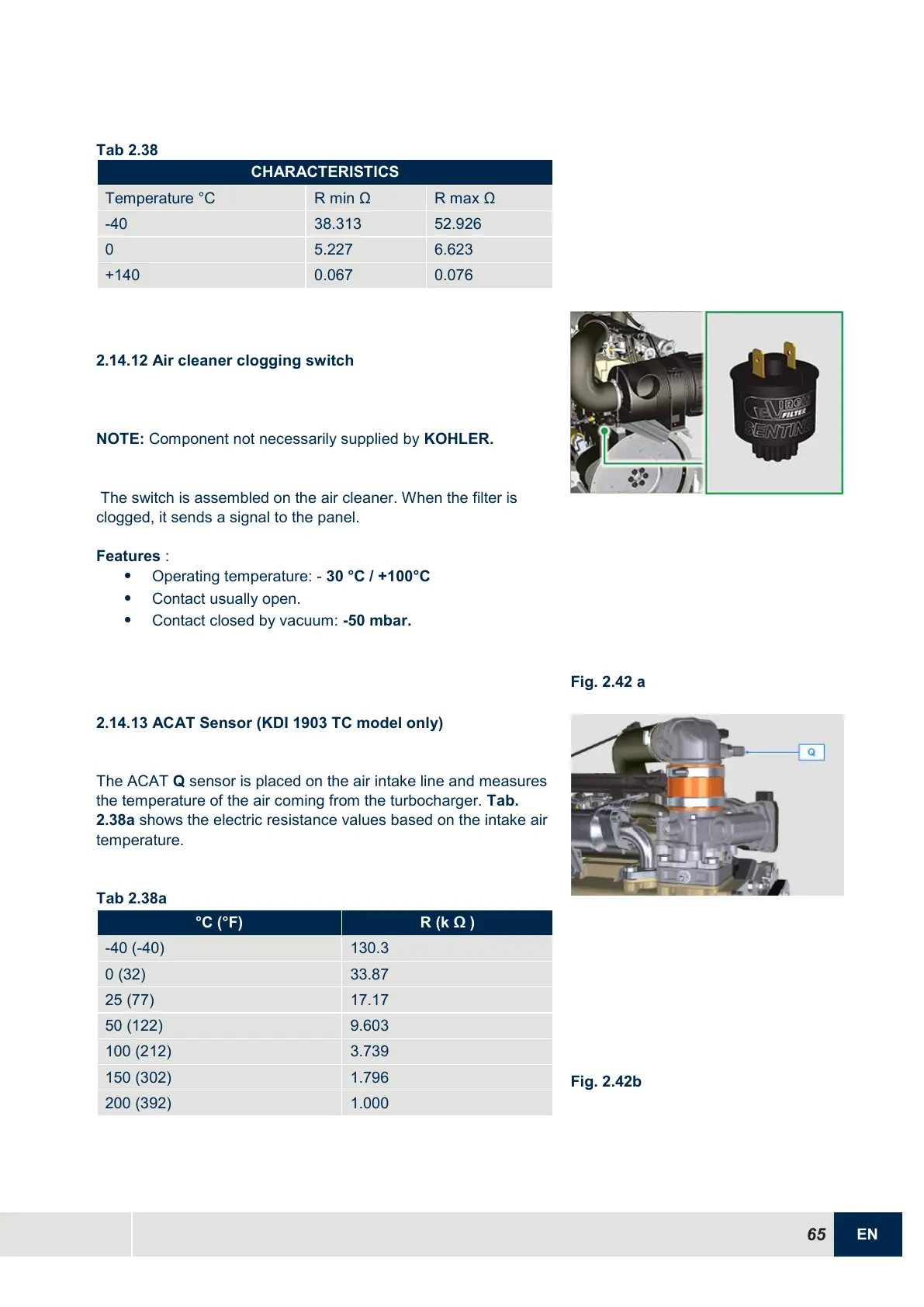

Kohler KDI 1903 TCR Workshop Manual

65
EN
Tab 2.38
CHARACTERISTICS
Temperature °C
R min Ω
R max Ω
-40
38.313
52.926
0
5.227
6.623
+140
0.067
0.076
2.14.12 Air cleaner clogging switch
NOTE:
Component not necessarily supplied by
KOHLER.
The switch is assembled on the air cleaner. When the filter is
clogged, it sends a signal to the panel.
Features :

Operating temperature: - 30 °C / +100°C

Contact usually open.

Contact closed by vacuum: -50 mbar.
Fig. 2.42 a
2.14.13 ACAT Sensor (KDI 1903 TC model only)
The ACAT
Q
sensor is placed on the air intake line and measures
the temperature of the air coming from the turbocharger.
Tab.
2.38a
shows the electric resistance values based on the intake air
temperature.
Tab 2.38a
°C (°F)
R (k Ω )
-40 (-40)
130.3
0 (32)
33.87
25 (77)
17.17
50 (122)
9.603
100 (212)
3.739
150 (302)
1.796
200 (392)
1.000
Fig. 2.42b
