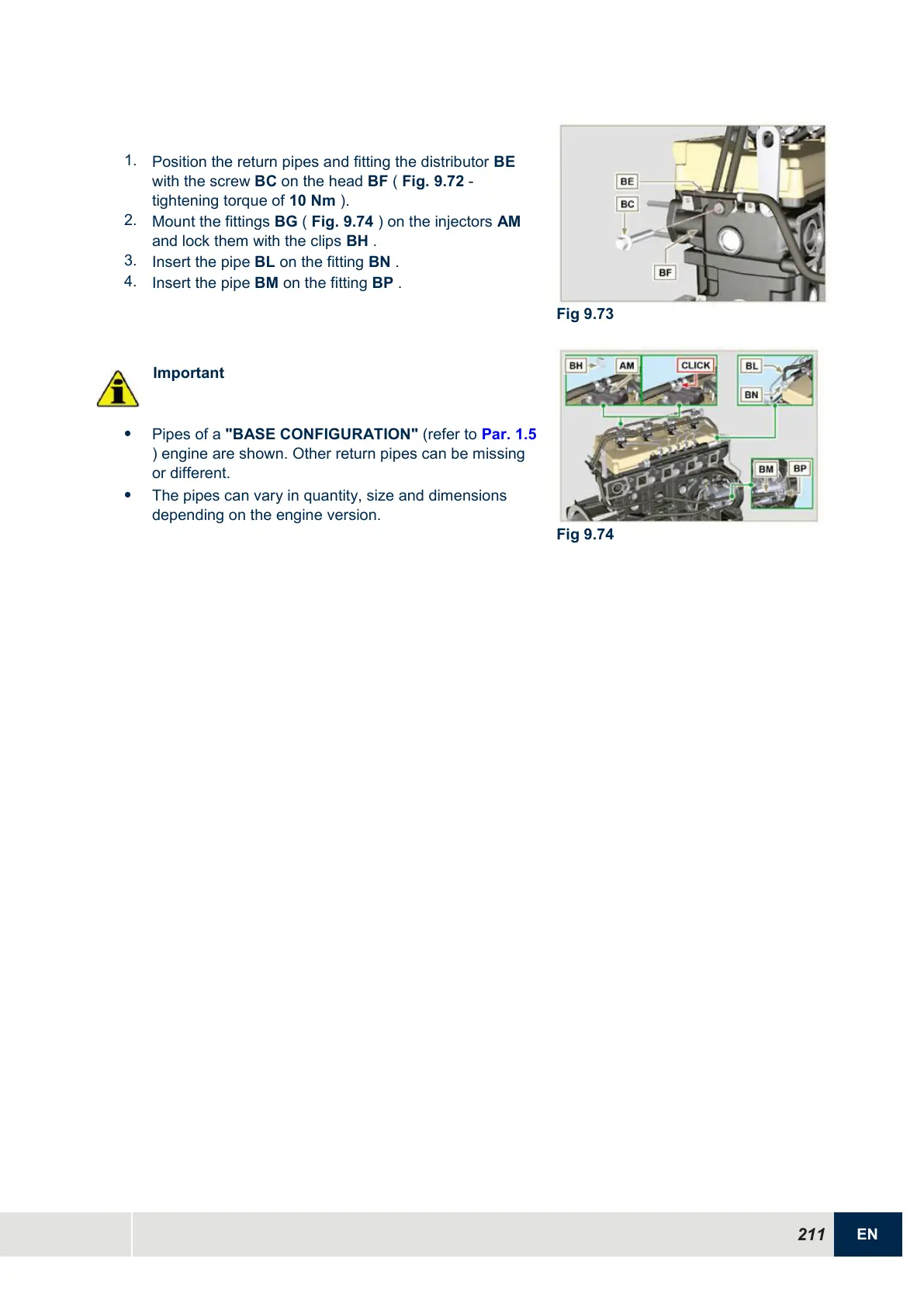

Kohler KDI 1903 TCR Workshop Manual

211
EN
1.
Position the return pipes and fitting the distributor BE
with the screw BC on the head BF ( Fig. 9.72 -
tightening torque of 10 Nm ).
2.
Mount the fittings BG ( Fig. 9.74 ) on the injectors AM
and lock them with the clips BH .
3.
Insert the pipe BL on the fitting BN .
4.
Insert the pipe BM on the fitting BP .
Fig 9.73
Important

Pipes of a "BASE CONFIGURATION" (refer to Par. 1.5
) engine are shown. Other return pipes can be missing
or different.

The pipes can vary in quantity, size and dimensions
depending on the engine version.
Fig 9.74
