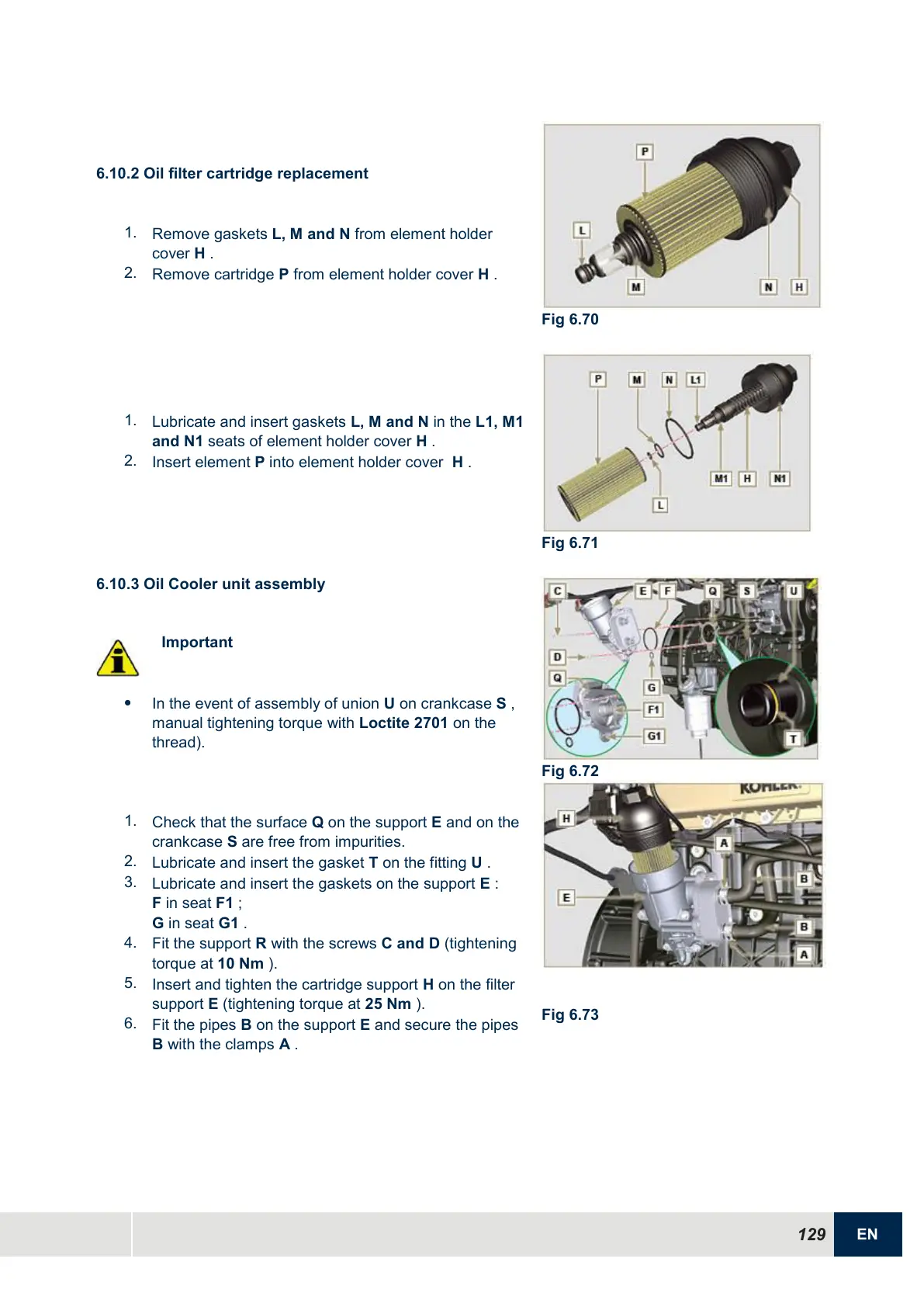

6.10.2 Oil filter cartridge replacement
1.
Remove gaskets L, M and N from element holder
cover H .
2.
Remove cartridge P from element holder cover H .
Fig 6.70
1.
Lubricate and insert gaskets L, M and N in the L1, M1
and N1 seats of element holder cover H .
2.
Insert element P into element holder cover H .
Fig 6.71
6.10.3 Oil Cooler unit assembly
Important

In the event of assembly of union U on crankcase S ,
manual tightening torque with Loctite 2701 on the
thread).
1.
Check that the surface Q on the support E and on the
crankcase S are free from impurities.
2.
Lubricate and insert the gasket T on the fitting U .
3.
Lubricate and insert the gaskets on the support E :
F in seat F1 ;
G in seat G1 .
4.
Fit the support R with the screws C and D (tightening
torque at 10 Nm ).
5.
Insert and tighten the cartridge support H on the filter
support E (tightening torque at 25 Nm ).
6.
Fit the pipes B on the support E and secure the pipes
B with the clamps A .
Fig 6.72
Fig 6.73
