2.10.2 Oil pump
The oil pump rotors are trochoidal
(with lobes) and are activated from the crankshaft by
means of the key.
The pump body is situated inside the distribution
guard.
It is imperative to assemble the rotors with reference
A visible by the operator.
Tab 2.23
POS.
DESCRIPTION
1
Internal rotor
2
External rotor
3
Oil pump crankcase
4
Pump control key
5
Timing system crankcase
6
Crankshaft

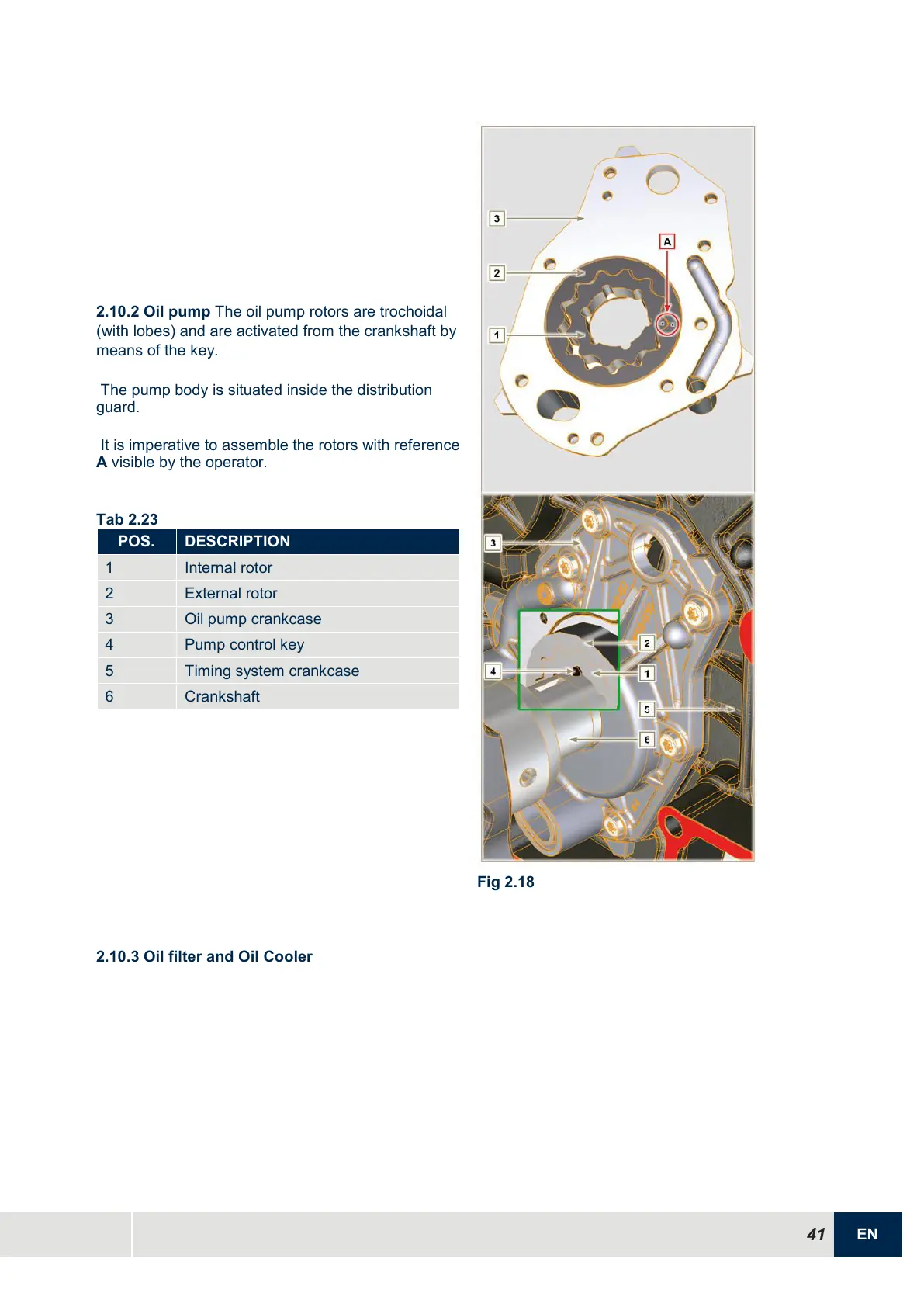

Fig 2.18
