Leica GR30 - Slot-In Devices

228
missing SIM or PIN.
Flashing every 4 s
registered to network but no data
transfer in progress.
Flashing every 2s
packet service data transfer in
progress.
Flashing every 1 s
circuit switched data transfer in
progress (GSM/UMTS only).
GFU14 with
Satelline 3AS
red or flashing red
the communication link, Data
Carrier Detection, is okay on the
roving receiver.
off
the DCD is not okay.
Power LED
GFU29 with Cinterion
PXS8
off
power is completely off
OR
GSM module is shut down. 10 s
power down are required to
restart.
green
power is on
AND
GSM module is ready.
any device
off
power is off.
green
power is okay.
Slot-in Devices
Devices fitting into the slot-in port (P3)
Digital cellular phones fitting into the slot-in port (P3)
Digital cellular phone
Device
Telit 3G GSM/GPRS/UMTS
SLG1-2
CINTERION MC75i GSM/GPRS/UMTS
SLG2-2
Radios fitting into the slot-in port (P3)
Radio
Device
Satelline TA11
SLR1-2

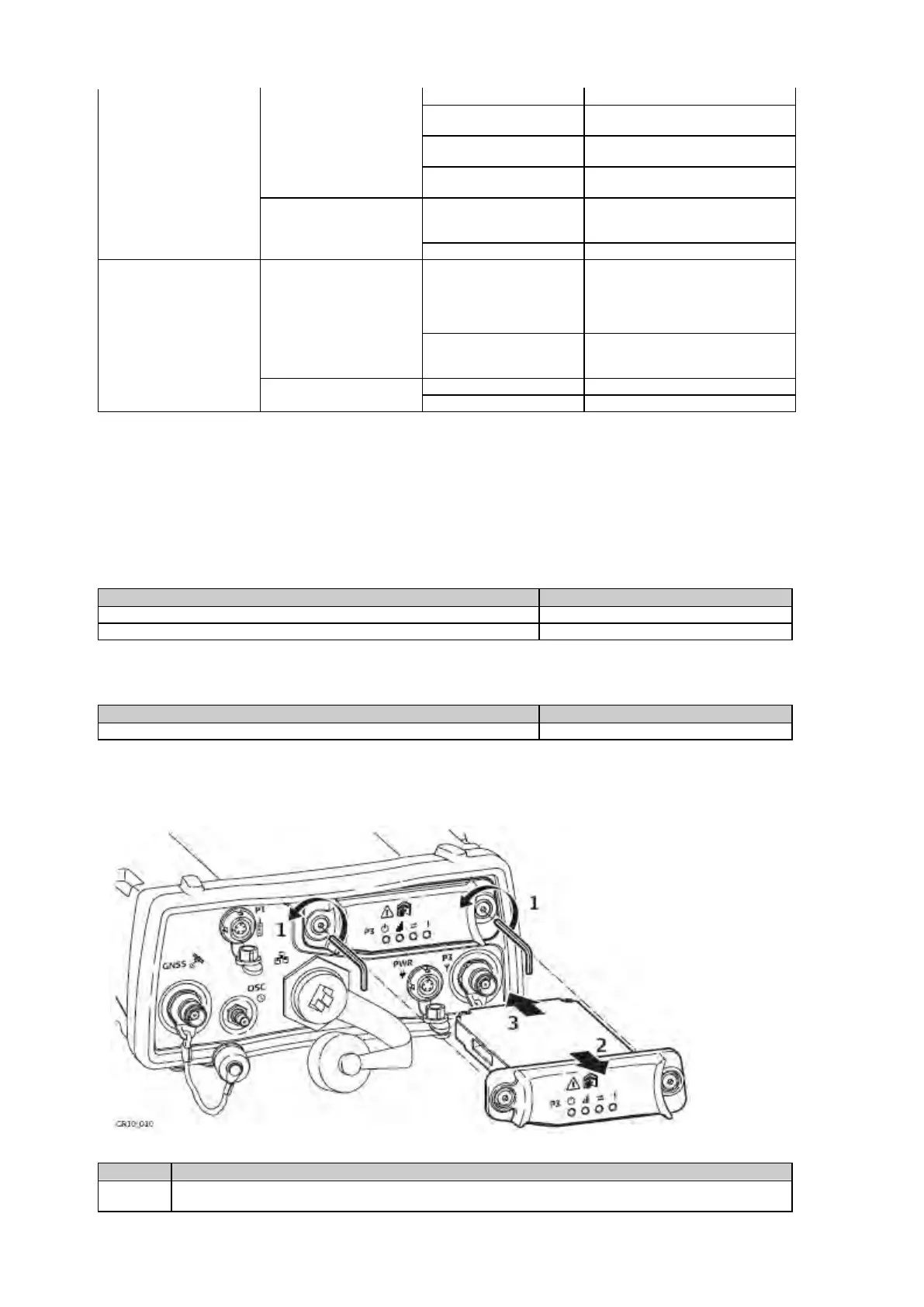

Insert and remove a slot-in-device step-by-step
Step
Description
1
Loosen the screws of the Communication Slot-in port (P3) with the Allen key that is supplied with the slot-in
device.
