LEMKEN Primus 10 - Remove Safety Chain; Fitting Stand

Uncoupling the implement
145

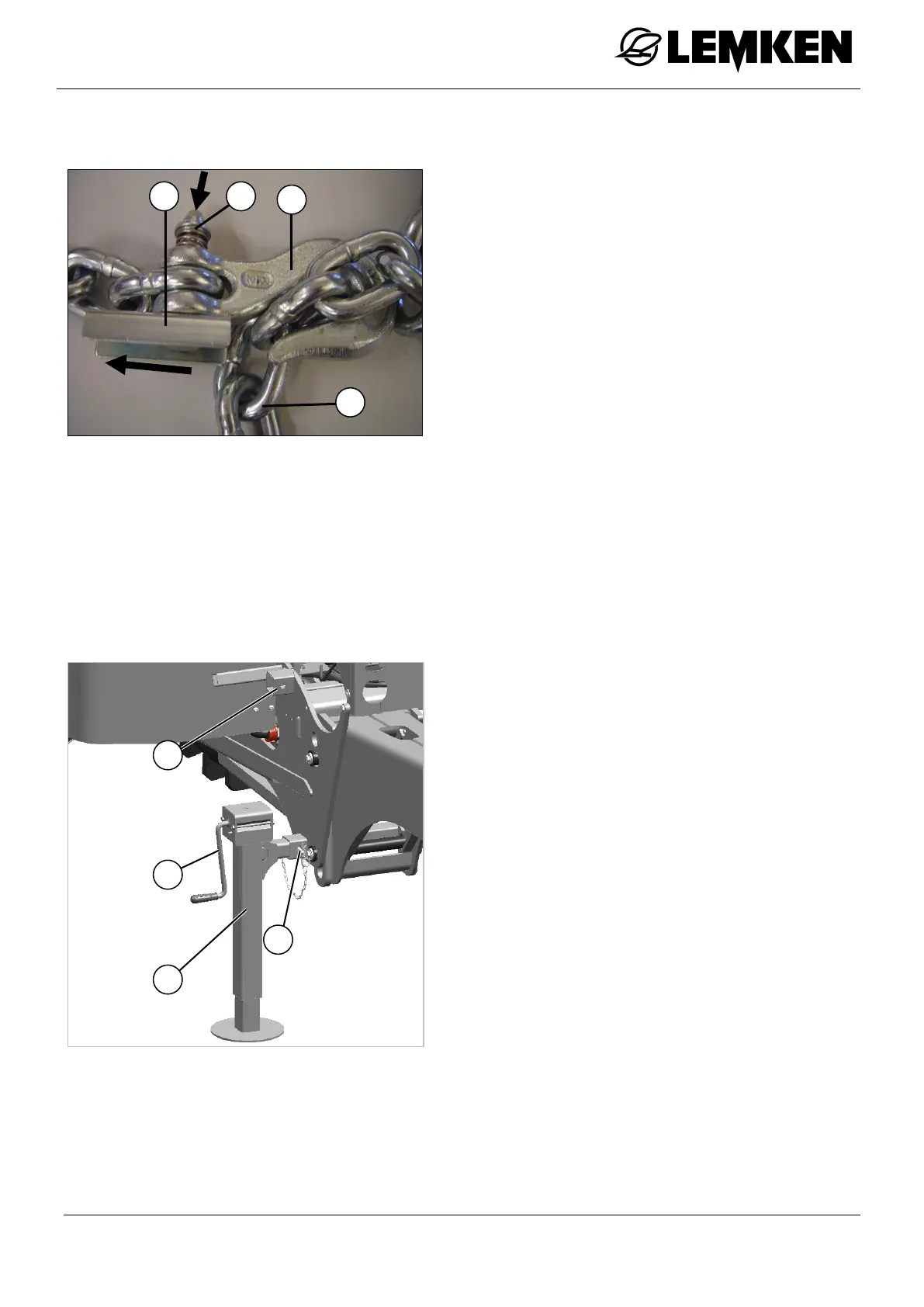

8.2.2 Remove safety chain
Only for a device without a braking system:
 Push bolt (1) of the safety chain inwards.
 Unlock the bolt (2):
 Press the bolt against the hook (3).
 Or cross ledger (2).
 Remove the safety chain (4) from the
hook (3).
 Release the safety chain (4) from the
tractor.
 Place the safety chain (3) over the pul-
ling device of the implement.
8.2.3 Fitting stand
 Unlock the bolt at the parking position
(1) and remove it.
 Remove supporting leg (2).
 Install supporting leg (2) in the parking
position.
 Insert bolts (3) into the safety bore and
secure.
 Extend the parking support (1) with the
crank (4) until the correct height is
reached.
1
2
3
4
3
2
4
1
