115
6.13 Working on rugged terrain or on a slope
By changing the centre of gravity to com-
pensate for a slope, the position of the
boom can be adjusted to adapt to rugged
terrain or a slope so it is parallel to the
ground.
The position of the sprayer boom is ad-
justed using the control system.
To learn how to change the position of the
sprayer boom, refer to the operating in-
structions for the SPRAYER controller MI-
DI, Chapt. 6.2.4 and Chapt. 6.2.5.
To learn how to adjust the sprayer boom to
a slope when turning, refer to Chapt. 6.2.6.
6.14 Switch on the spraying cone lighting
The spraying cone lighting can be switched
via the control unit.
See operating manual SPRAYER control-
ler MIDI, Chapter 6.10 Operating additional
functions - activate/deactivate working
lights.
6.15 Working with drop hoses
6.15.1 Attaching drop hoses

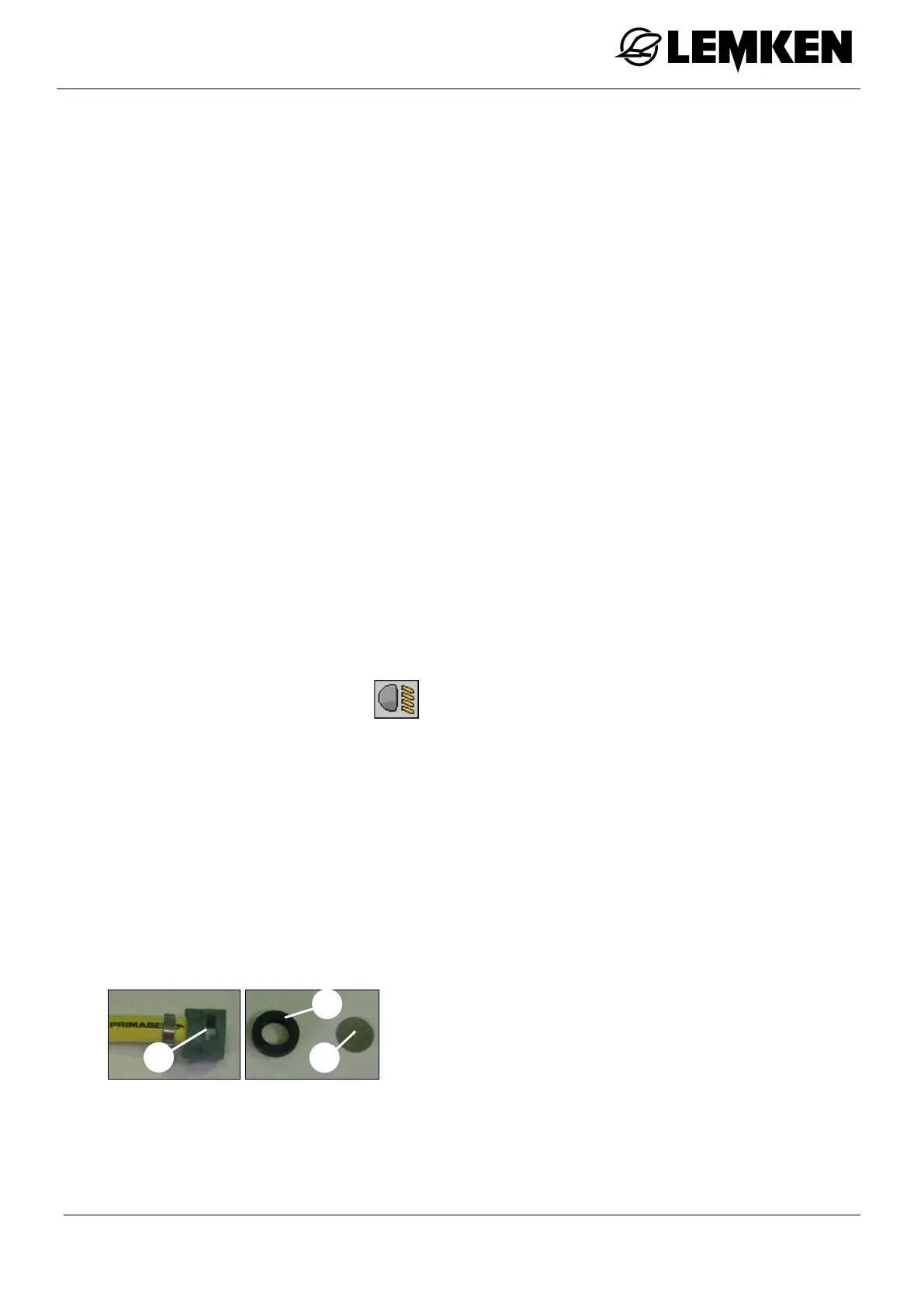

Place metering disk (1) in the seal (2).
Place seal with the inserted metering
disk in the bayonet cap (3).
Completely extend sprayer boom.
Secure sprayer boom from unintentional
lowering.
