36

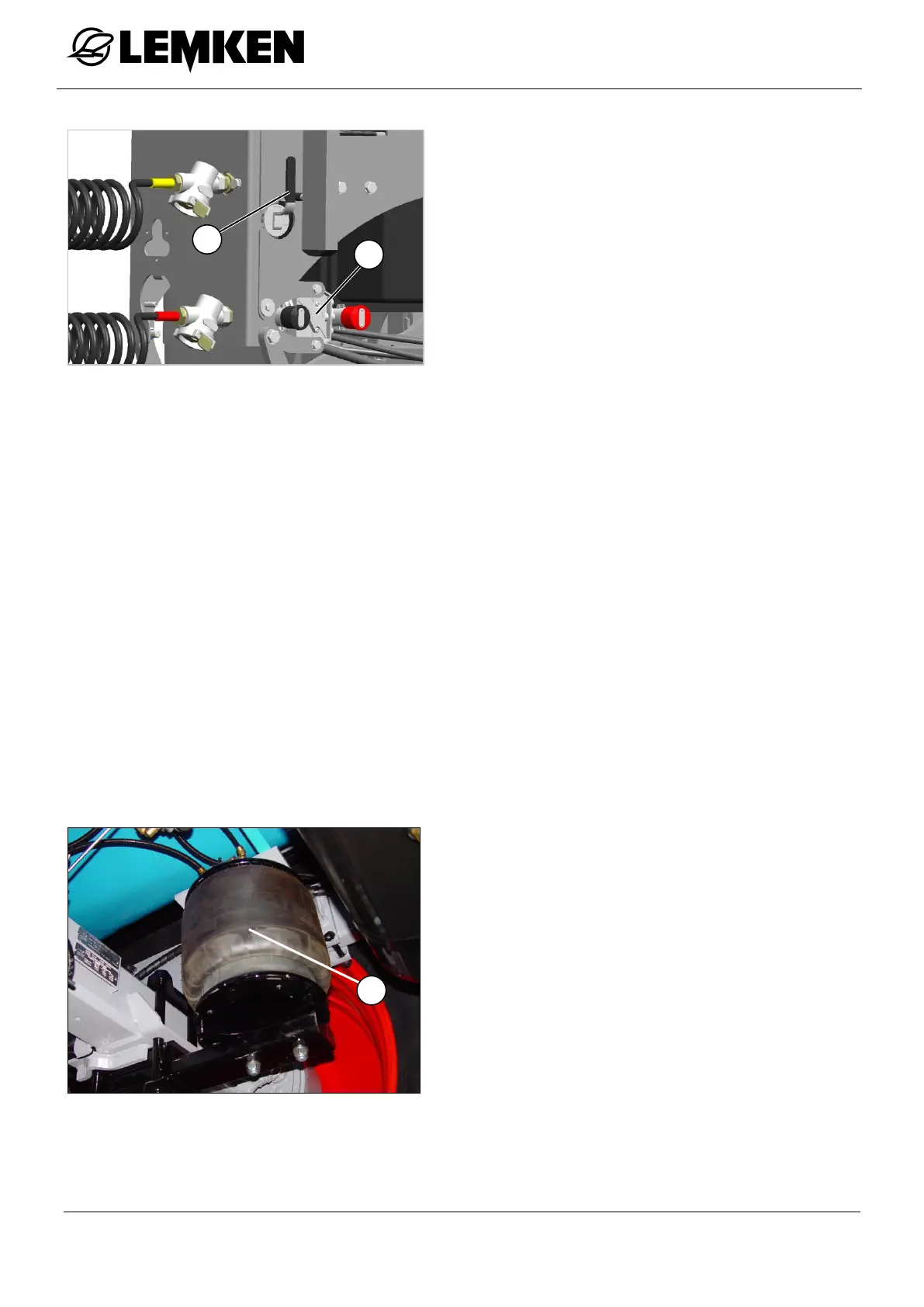

With the black button (1) the service brake
can be activated or released.
The manual control (2) can be used to ad-
just the braking force to suit the filling level
of the device.
Shear brake
If the brake lines are interrupted when the
device is disconnected from the tractor,
emergency braking is automatically enga-
ged, using the operating pressure of the
compressed air reservoir.
4.4.3 Air brake system with an automatic, load-dependent compressed air
brake valve and pneumatic suspension
With the air brake system with automatic, load-dependent brake valve and pneu-
matic suspension, the brake pressure is automatically adjusted by an automatic.
load-dependent regulator.
This results in a control pressure in the
spring bellows (1) which depends on the
weight of the implement.
