Preparations
83
5.7 Calibration of the speed sensor
5.7.1 Check speed sensor
For automatic metering with the operation
terminal, the distance impulses have to be
taken from the device and calibrated to
100 m.

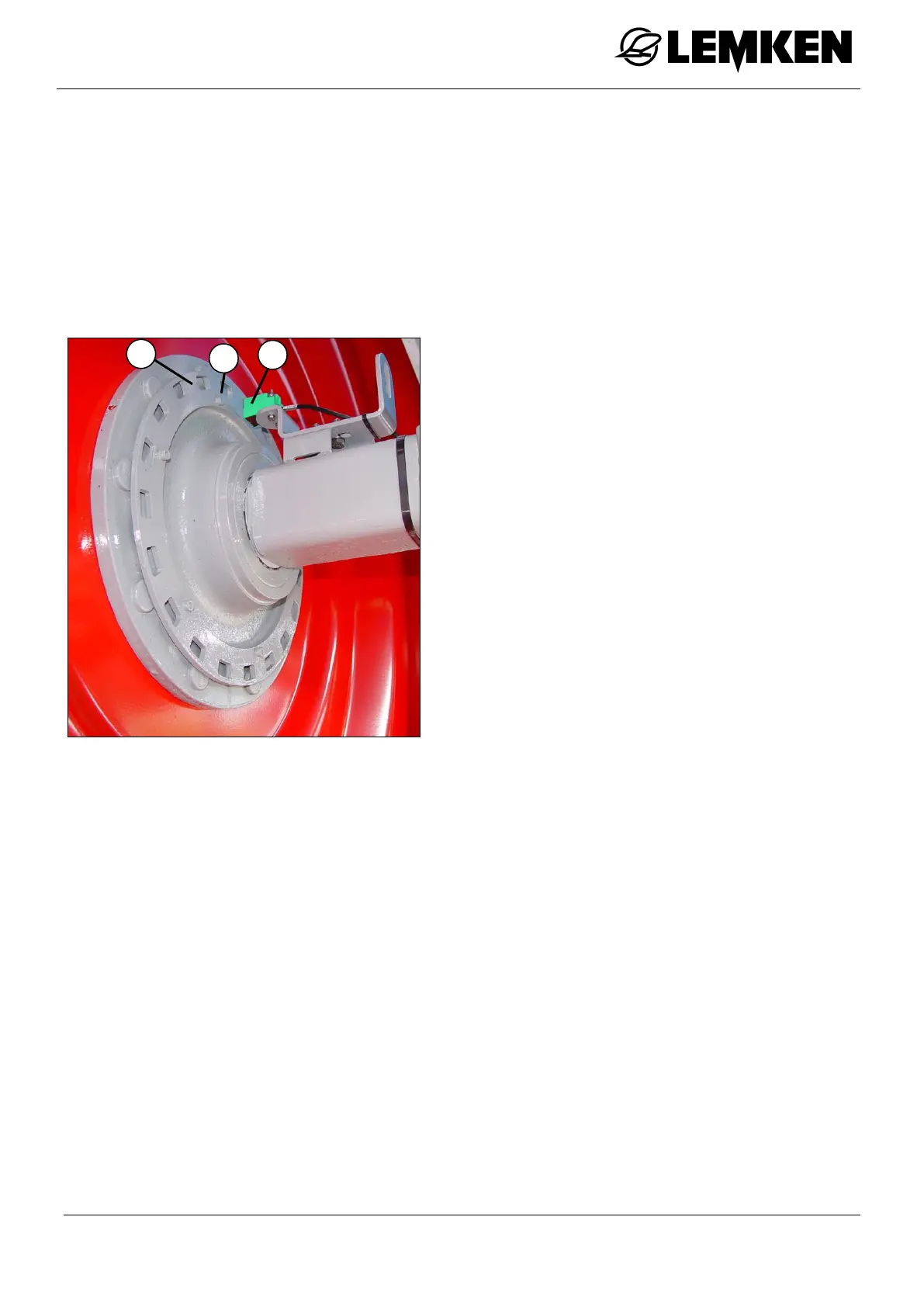

 Before calibration, check that the speed
sensor (1) on a device with a running ax-
le is located 5 - 10 mm from the screws
(2) of the pulse disc (3).
5.7.2 Calibrate the speed sensor
The speed sensor is calibrated with the
control of the device.
The operating instructions in the "SPRA-
YER controller MIDI" manual describe how
to calibrate the speed sensor in chapter
"7.6 Selecting and configuring the speed
sensor".
1
2
3
