LEMKEN Primus 10 - External Filling Connection

Operation
92

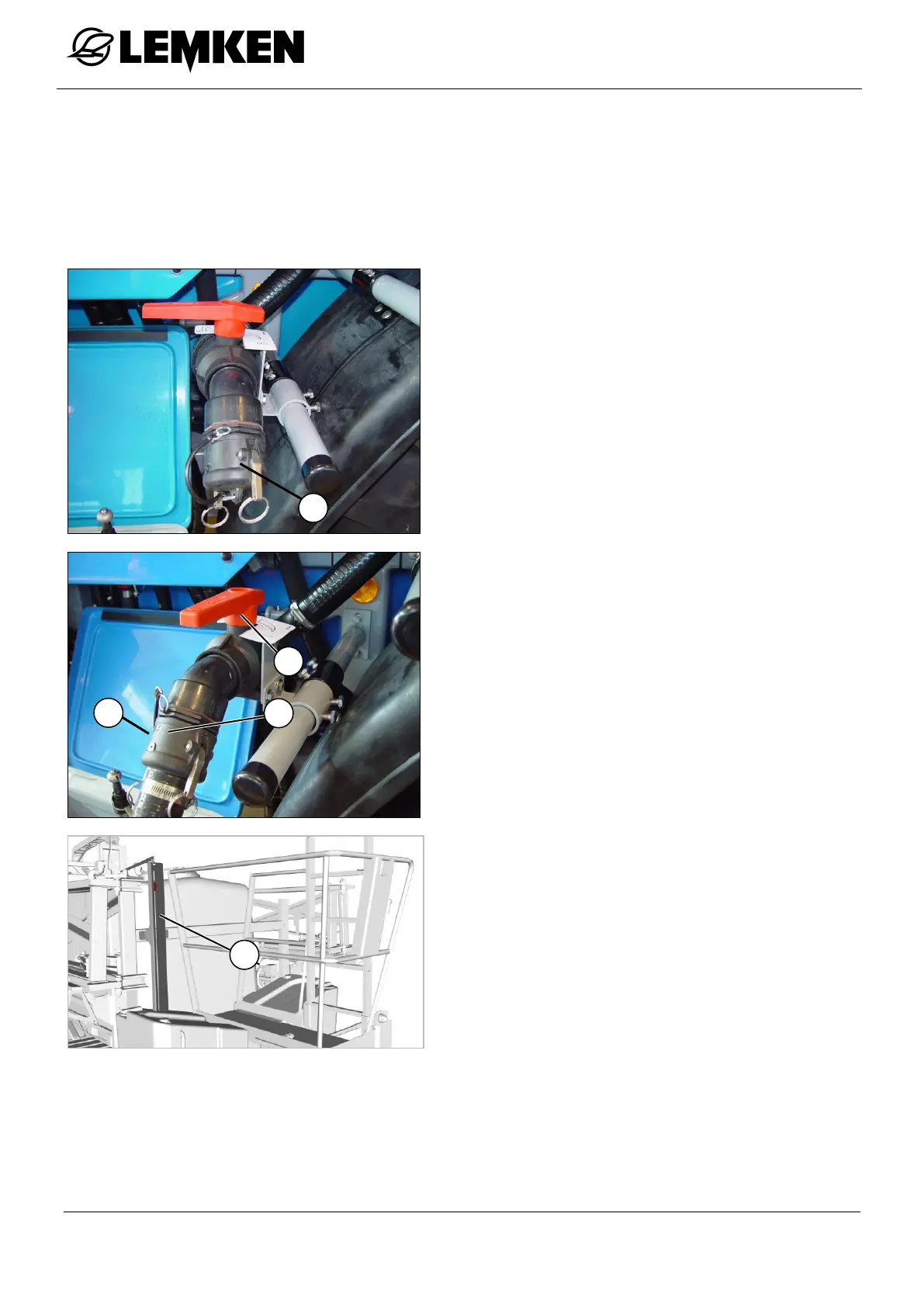

6.4.2 External filling connection
Application: Pump water or ready-mixed
spraying fluid with an external pump into
the main tank.
 Remove the blind cap (1) of the filling
connection.
 Attach the filling hose (2) to the filling
port.
 To fill the main container with water:
Turn the filling valve (3) counterclockwi-
se.
The filling speed can be continuously ad-
justed with the filling valve (3).
 Monitor the filling of the main tank with
the following aids:
 Fill level indicator (4)
 Display unit at the operating and ad-
justment centre
 Operation terminal
 To ensure the main container does not
overflow: Stop filling the main tank in ti-
me.
1
2
3
2
4
