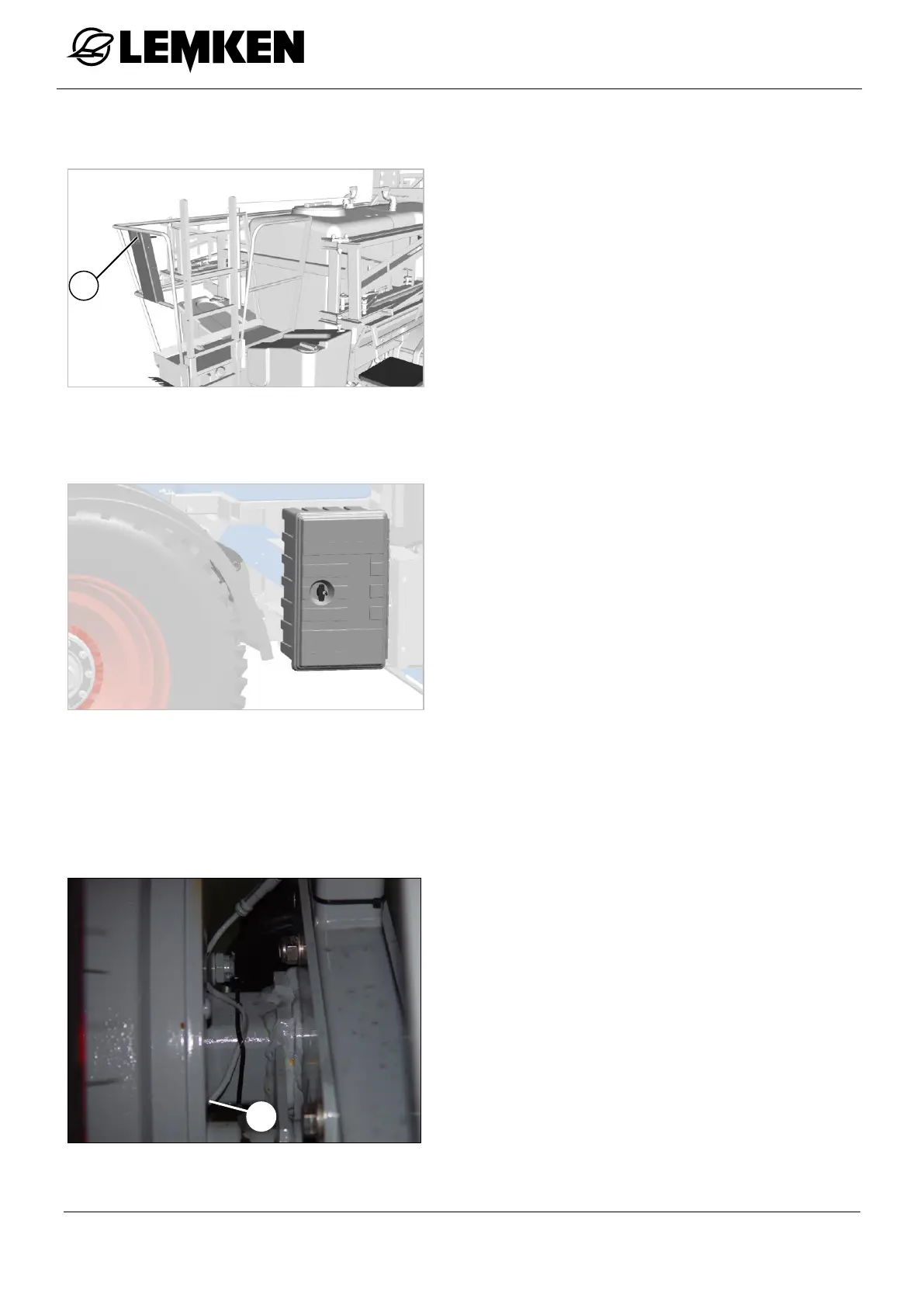

4.12 Filling hose holder
Water or spraying fluid can be extracted
from external tanks via a filling hose.
A holder (1) is also available for the filling
hose.
4.13 Storage compartment
There is a storage compartment on the
right-hand side of the machine in the direc-
tion of travel.
The storage compartment repels both wa-
ter and dirt.
4.14 Distance detection
The distance pulses for automatic operation of the implement are detected from
the wheel.
In the case of braked axles, the speed is
detected by means of a pole wheel which
is integrated into the brake drum (1).
