LEMKEN Primus 10 - Description of the Spraying Pricess with 4500 L

Layout and description
43
A
Selection valve, spray pump
F
Flush valve
B
Selection valve agitator pump
G
Drain valve pressure filter
C
Switchover valve spraying agent /
clean water
H
Spraying pump
D
Distributing valve
I
Agitator pump
E
Agitator control
J
Suction valve

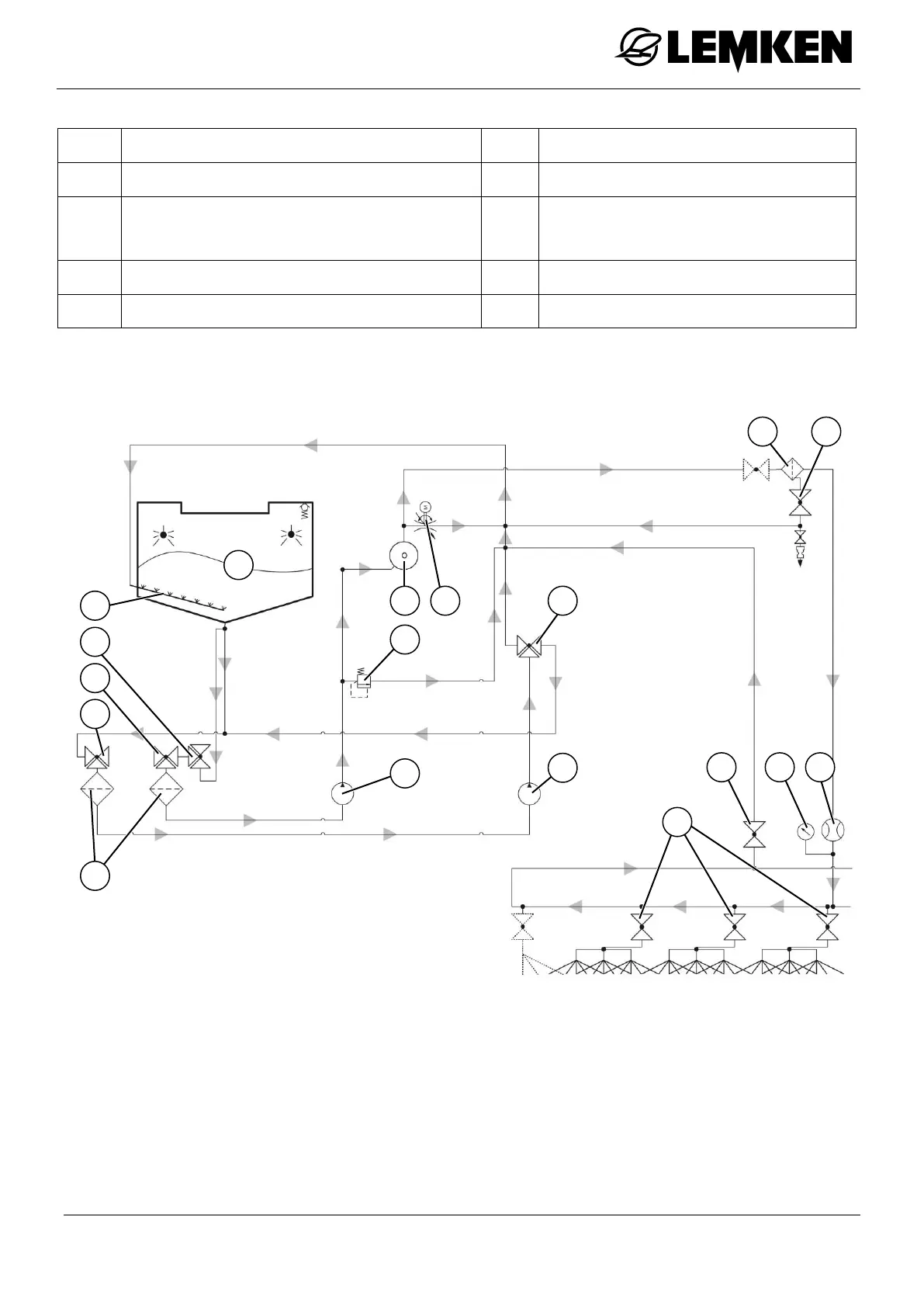

4.5.4 Description of the spraying pricess with 4500 l
During the spraying process, the spray pump (H) draws the spraying fluid from the
main tank (7) via the switching valve (C), the selection valve (A) and the suction
filter (9). The spraying fluid is then pumped to the nozzles via the diverting valve
(D) and the pressure filter (3).
D
17
B
H
3
A
F
4
5
23
21
2
E
I
9
C
20
7
