Layout and description
49
2
Drive
3
Intake connection
4
Pressure connection
5
Oil filling opening
6
Oil level indicator
7
Drain screw

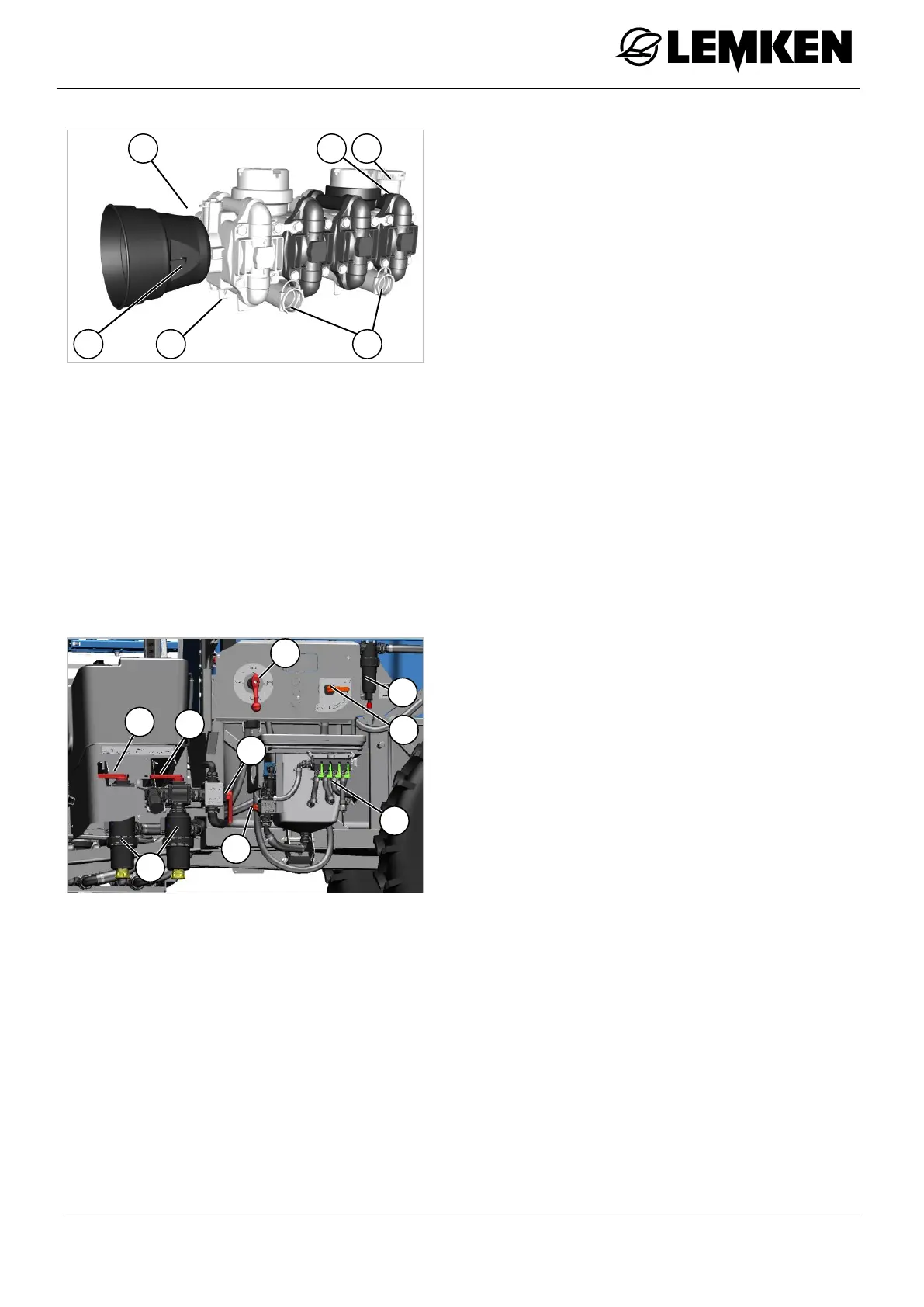

4.11 Control and connection centre
The following positional designa-
tions correspond to the position
markings of the fluid lines, see
"Liquid flow, page 39".
A
Selection valve spray pump
B
Selection valve agitator pump
C
Switching valve for spraying
fluid/clean water
D
Distributing valve
E
Agitator control
J
Suction valve
3
Pressure filter
9
Suction filter
27
Induction hopper fitting
Display TANK control indica-
tor (not shown)
3
2
7
6
5
4
D
B
C
3
J
27
9
E
A
