LEMKEN Primus 10 - Overview of 4500 L

Layout and description
42

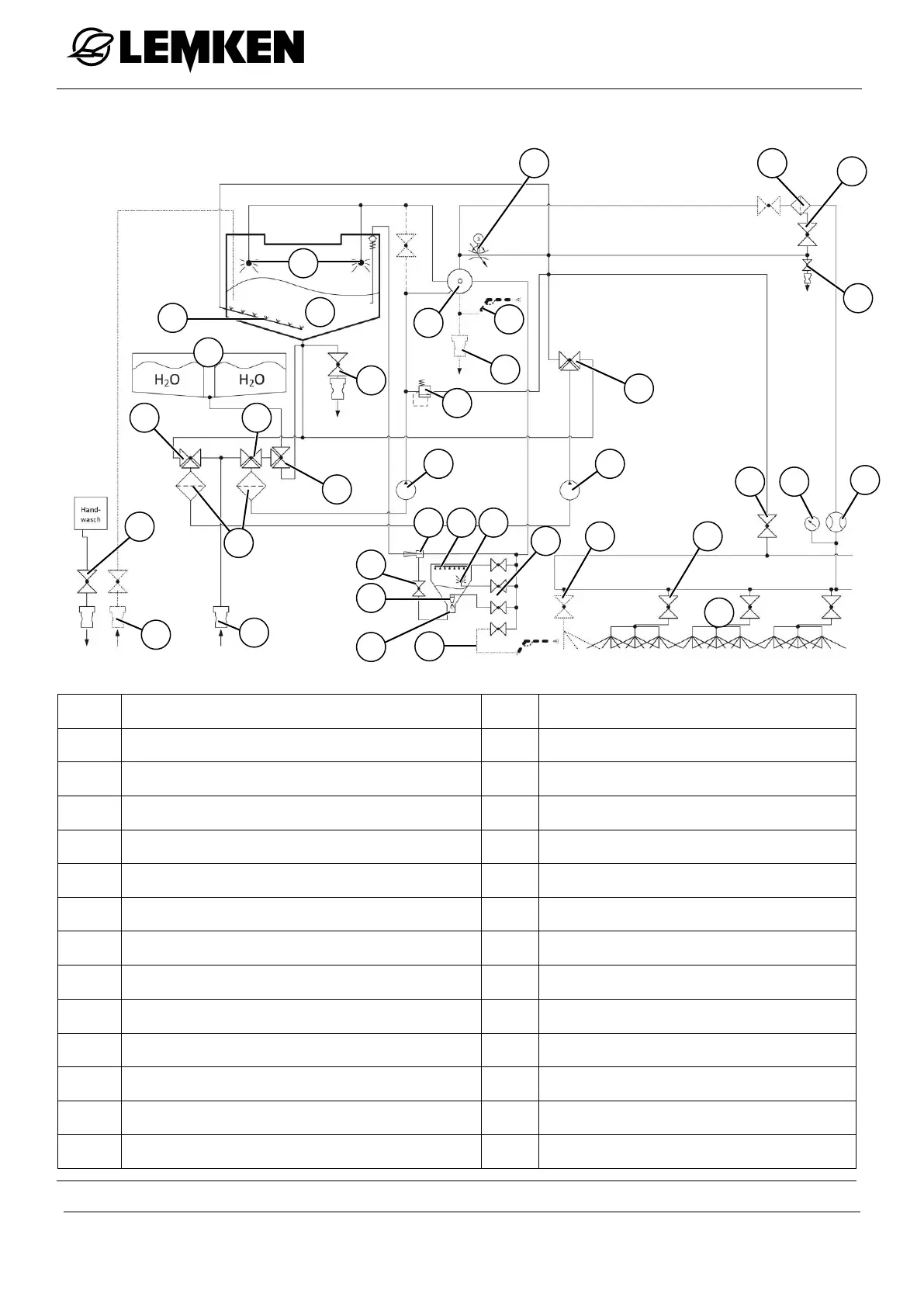

4.5.3 Overview of 4500 l
1
Clean water tank
15
Canister rinsing nozzle
2
Control valve
16
Connection for cleaning gun
3
Self-cleaning pressure filter
17
Pressure control valve
4
Flowmeter
18
External cleaning
5
Agitator
19
Nozzle line
6
Internal cleaning of main tank
20
Part-width section valves
7
Main tank
21
Central bypass valve
8
Drain valve
22
Pump off connection
9
Suction filter
23
Pressure sensor
10
Intake connection
24
Edge nozzle
11
Chemical inductor
25
External filling connection
12
Agitator nozzle
26
Hand washing tank valve
13
Edge moistening
27
Induction hopper fitting
14
Injector
1
19
7
26
25
10
C
5
8
3
2
6
21
23
4
G
F
16
24
20
E
22
17
H
D
18
5
11
12
15
J
14
13
9
B
I
A
27
