4-12 Service Manual
5060-4xx
Front lower right cover
1. Remove tray.
2. Remove front right handle cover assembly. See “Front right handle cover assembly” on page 4-13.

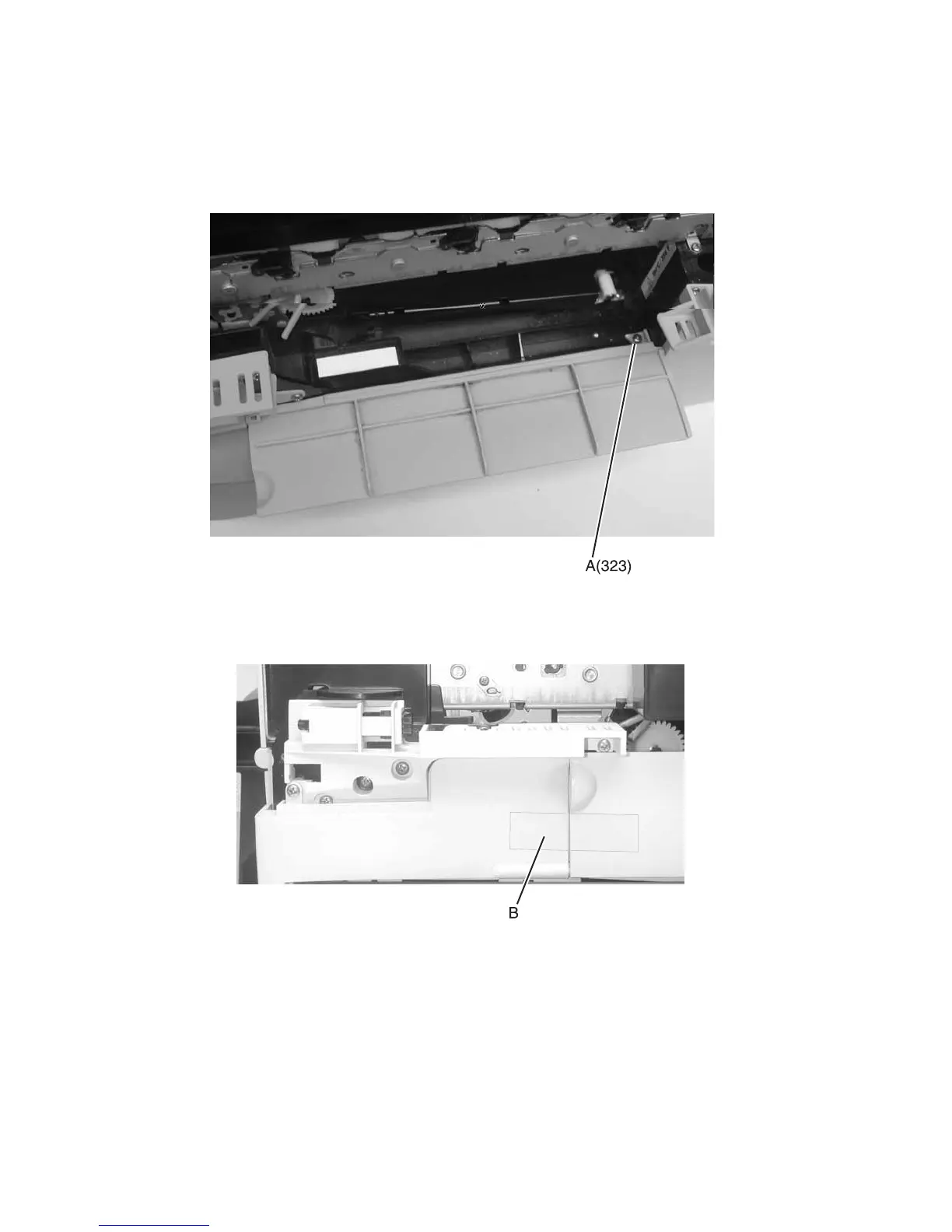

3. Open the paper path access door and remove the left lower cover screw (A) type “323” on page 4-3.
4. Close the paper path access door and tape front jam access door (B) if tape is available, to help hold the
door in place.
The spring loaded latch is difficult to reassemble. Avoid unlatching the left side, if you just need access to
the right screw.
