Repair information 4-31
5060-4xx

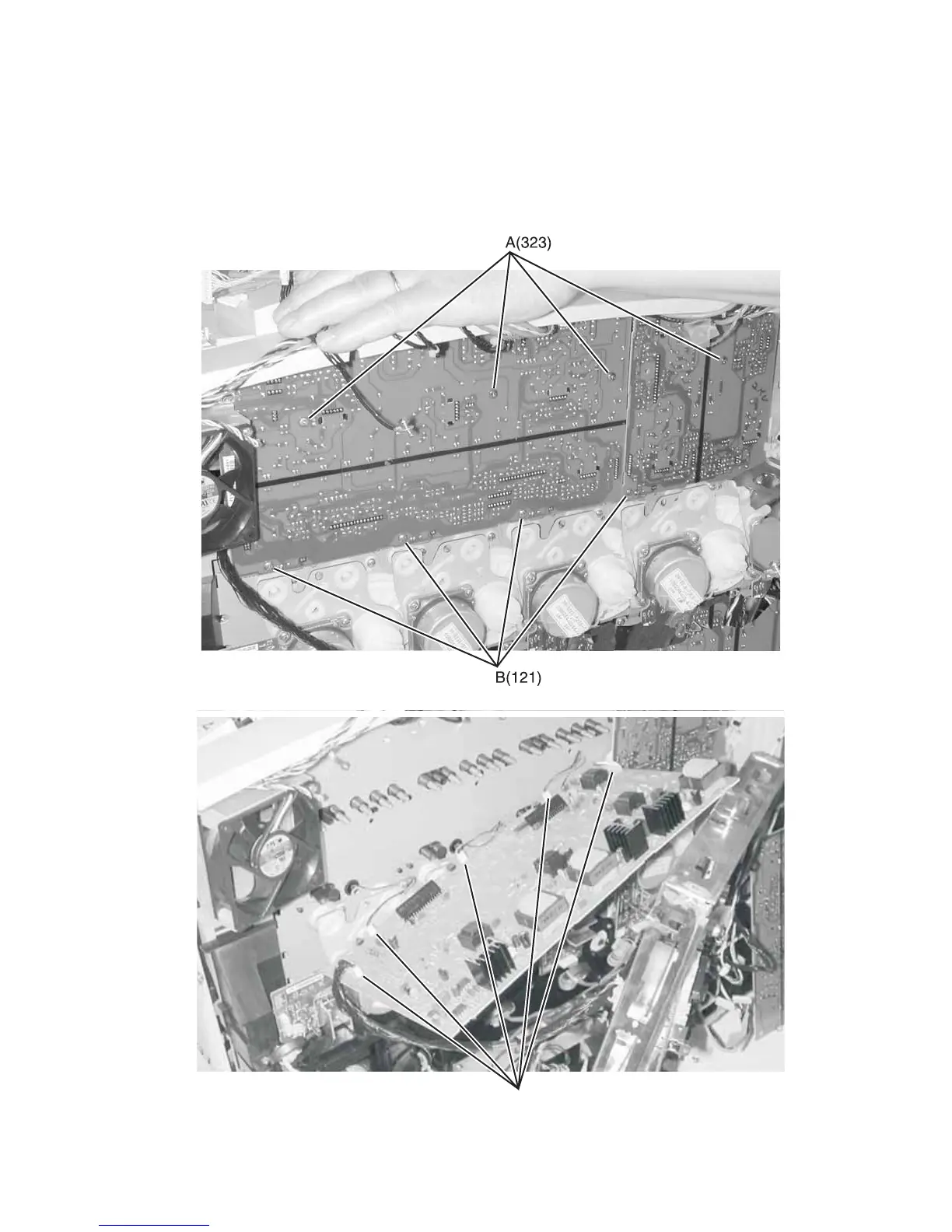

Developer HVPS board
Go to “Developer HVPS board” on page 7-34 for part numbers.
1. Remove inner system board shield. See “Inner system board shield” on page 4-43.
2. Remove four top machine screws (A) type “323” on page 4-3 and four bottom screws (B) type “121” on
page 4-2 from the developer HVPS board.
3. Remove all connectors (C) from the left board.
C
