4-28 Service Manual
5060-4xx
BOR drive assembly
See “Motor assembly, Lift/BOR” on page 7-27 for part numbers.
1. Open the front cover.
2. Remove the yellow toner cartridge.
3. Remove the front right light shield cover. See “Front right light shield” on page 4-34.

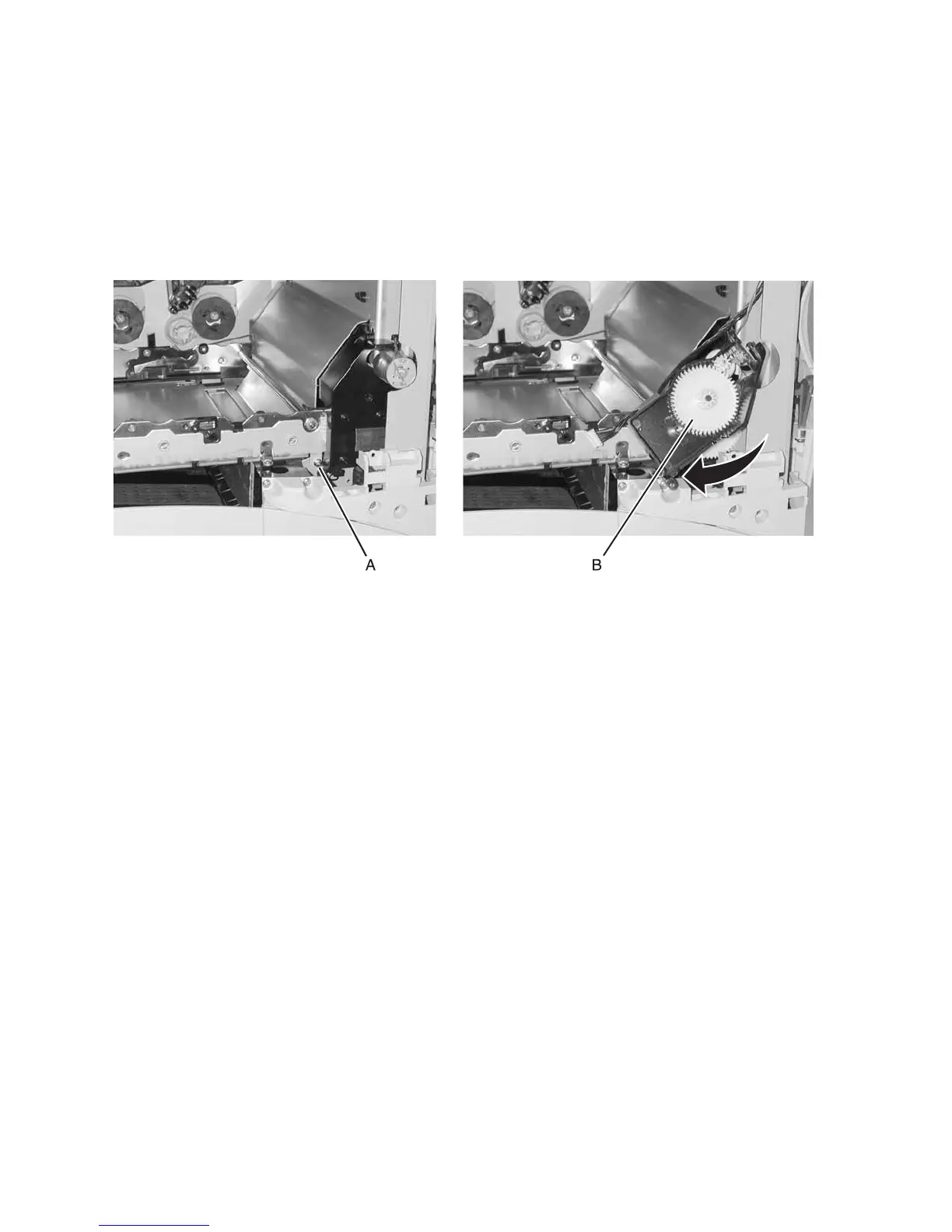

4. Remove the BOR housing assembly screw (A) type “323” on page 4-3 and remove the assembly.
Note: Gear (B) can easily fall from the assembly. Be careful not to drop the gear.
