7-14 Service Manual

5060-4xx

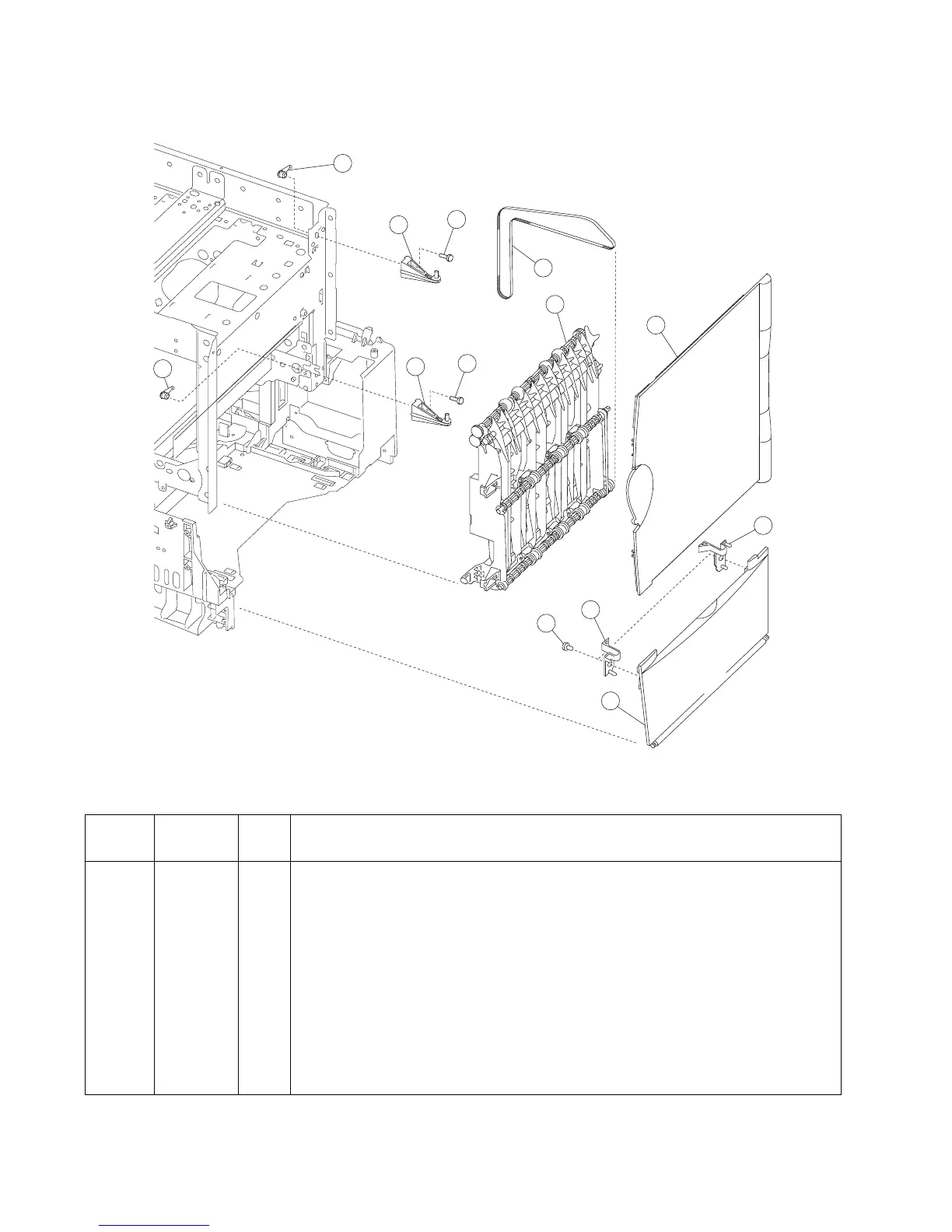

Assembly 8: Paper feed output (redrive)

Asm-

index

Part

number

Units Description

8–1 56P0167 8 Anchor, bracket mounting

2 12G6493 2 Upper door hinge

3 2 Screw, parts packet 12G6533

4 56P2204 1 Redrive belt 300 T

5 12G6492 1 Redrive assembly

6 56P2836 1 Redrive door assembly

7 56P1532 1 Lower right door latch

8 56P1533 1 Lower left door latch

9 2 Screw, parts packet 12G6530

10 56P2837 1 Lower right door assembly
