4-44 Service Manual
5060-4xx
ITU assembly
Go to “ITU assembly” on page 7-22 for part number.
1. Open the front cover.
2. Remove the toner cartridges.
3. Open the MPF to the lowest position.

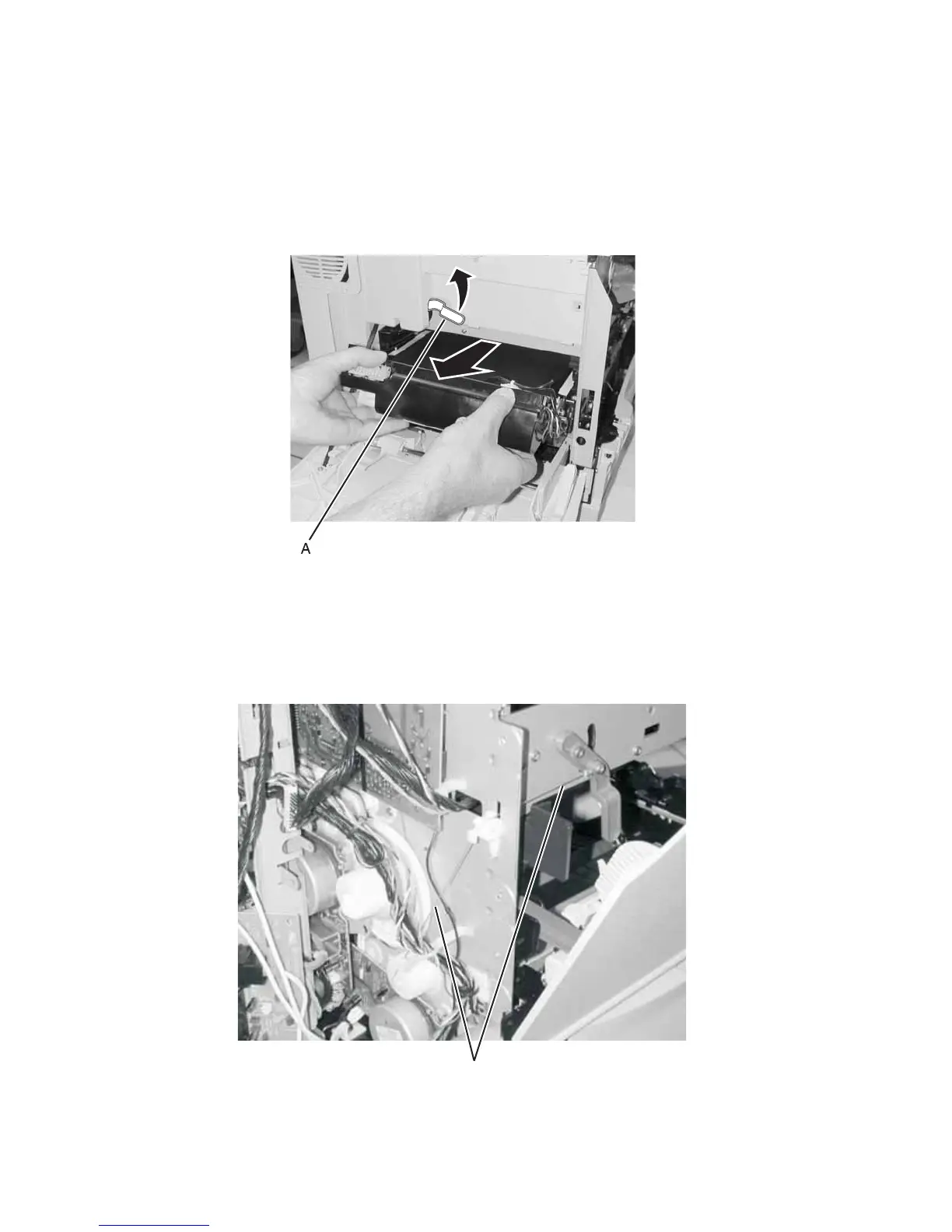

4. Raise the ITU release lever (A) and slide the ITU from the printer.
ITU drive assembly
Go to “ITU drive assembly with motor and waste toner full switch” on page 7-41 for part number.
1. Remove the black cartridge drive assembly. See the removal for the “Cartridge drive assembly” on
page 4-30.
2. Disconnect the ITU drive coupling cable (A).
A
