Lorex LHA4100 series User Manual

Using the Main Menu12

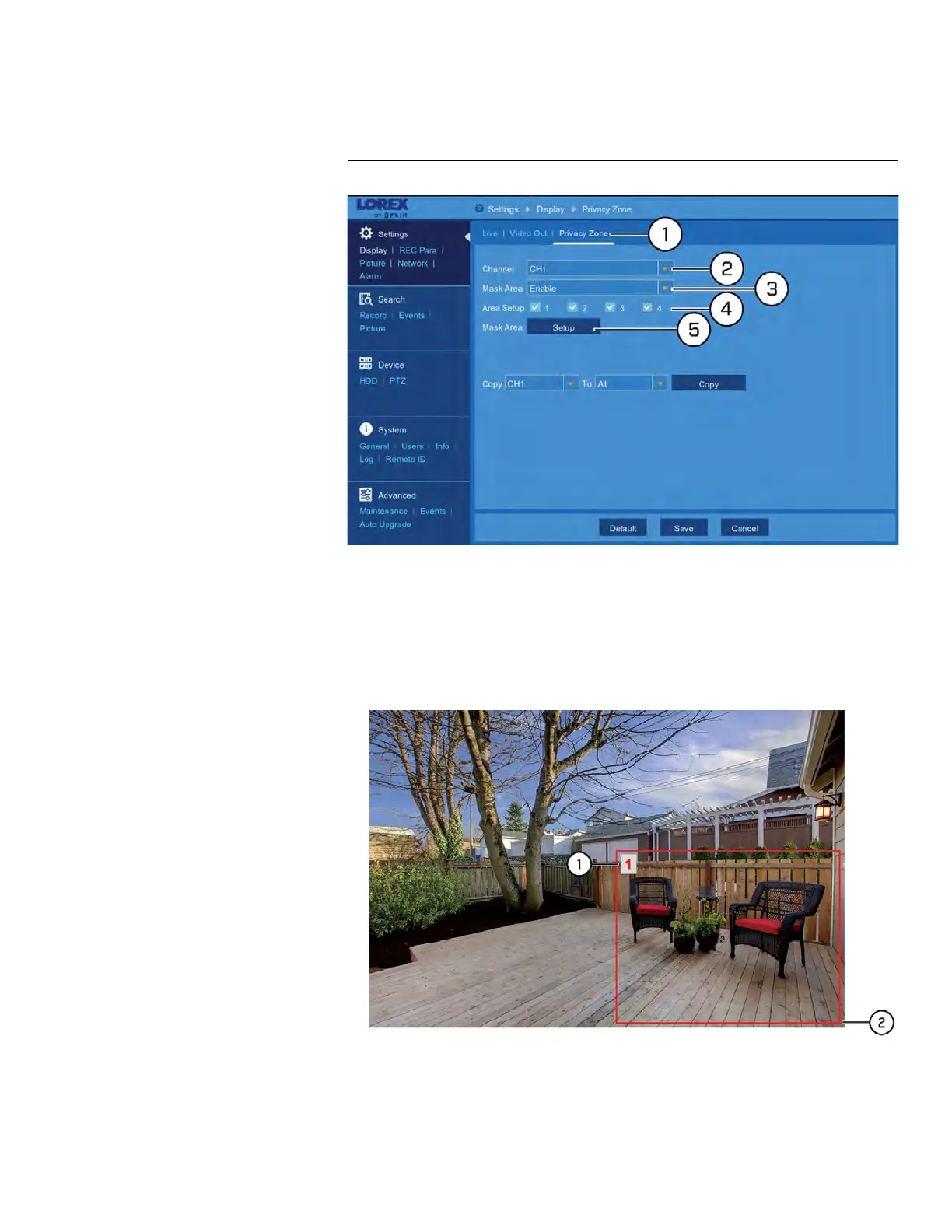

1. Under Settings, click Display, then click on the Privacy Zone tab.
2. Use the dropdown next to Channel to select a channel to set a privacy zone for.
3. Select Enable from the dropdown next to Mask Area.
4. Check the boxes next to Area Setup for each privacy zone you wish to set for the se-
lected channel. For example, if you wish to set up 4 privacy zones, check all 4 of the
boxes.
5. Click Setup. The camera image appears in full-screen. Click-and-drag to draw privacy
zones on the camera image. Right-click to return to the menu.
5.1. Click the number in the top-left corner of an existing privacy zone to move it to
another area of the image.
5.2. Click-and-drag to the edge of an existing privacy zone to resize it.
6. Click Save.
#LX400086; r. 1.0/39246/39246; en-US
57
