Maintenance
Page 172 Lorrca Maxsis User Manual
Version 5.04 MRN-231-EN

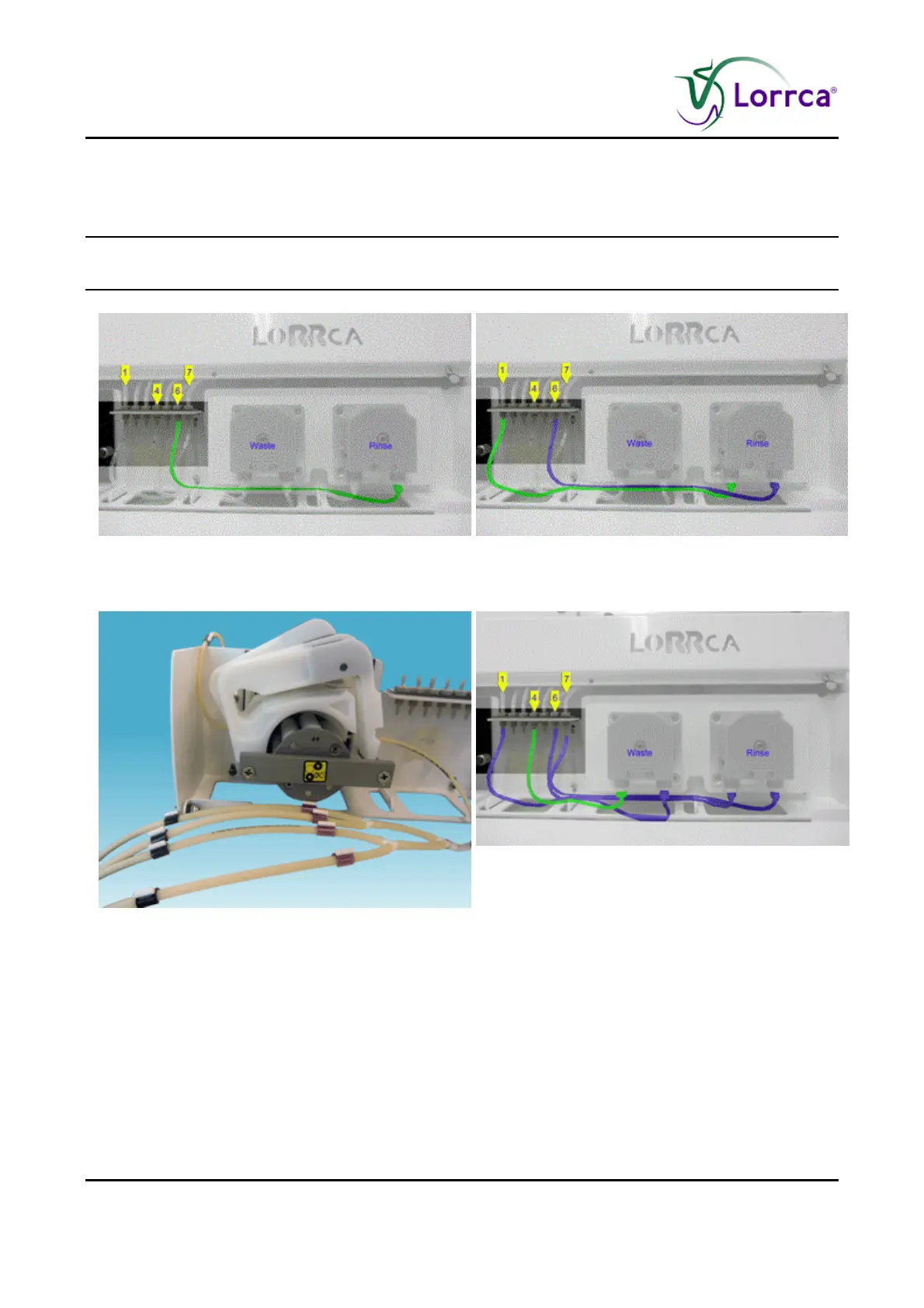

10.10.4.2. Pump connection tubing
Pumps to Needle assembly (LORC070904)
Note: Start to install with the tube end with label 6 which is shown GREEN in the picture.
Next picture: The installed tube is now BLUE continues with the next GREEN tube.
-
1. Connect tube with label 6 to the output port of
the Rinse pump
2. Connect tube with label 1 to the Input port of
the Rinse pump.
3. Connect tube with label 7 to the output port of
the Waste pump.
4. Connect tube with label 4 to the Input port of
the Waste pump.
