Maintenance
Lorrca Maxsis User Manual Page 181
Version 5.04 MRN-231-EN

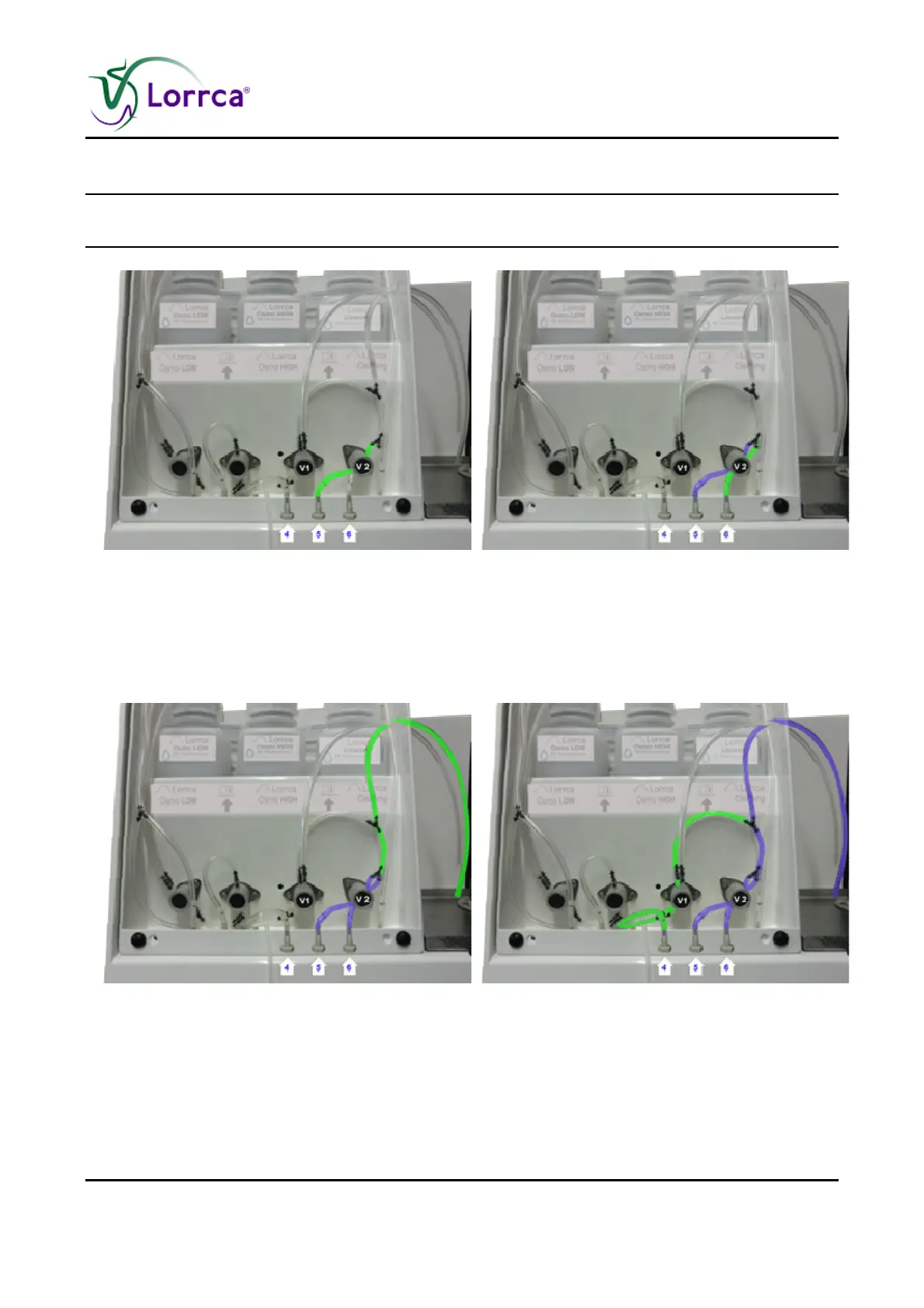

10.10.5.4. Install LORC070903 tubing set 2
Note: Start to install with the tube end with label 5 which is shown GREEN in the picture.
Next picture: The installed blue tube is now BLUE, continue with the next GREEN tube.
-
Start with tube end with label 5.
1. Put the short tube into the pinch valve V2 in
the back port.
2. Connect tube with "5" on the connector 5.
3. Put the other short tube into the pinch valve V2
at the front port.
4. Connect tube with label 6 on the connector 6.
5. Take the long end of the tube and run this
through the back hole
6. Take connection tube and put the short tube in
V1 through the back port.
7. Connect the tube with label 4 to connector 4
