Maintenance
Lorrca Maxsis User Manual Page 179
Version 5.04 MRN-231-EN
10.10.5.3. Install LORC070902 tubing set 1

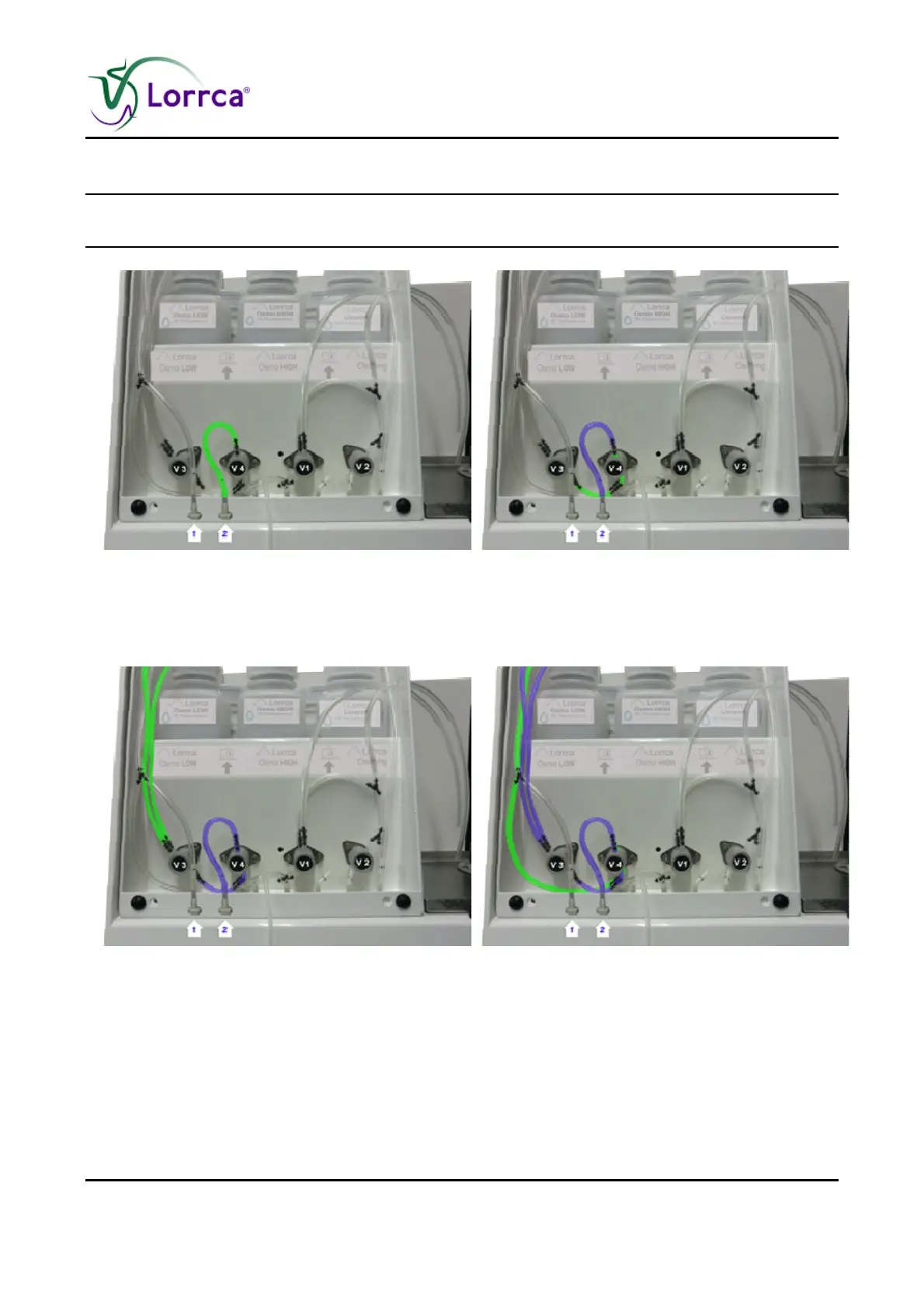

Note: Start to install with the tube end with label 2 which is shown GREEN in the picture.
Next picture: The installed tube is now BLUE, continue with the next GREEN tube.
-
1. Put both small tubes into the pinch valve V4
(short end at the front)
2. Connect tube with label 2 on the connector 2
3. Put both small tubes into the pinch valve V3:
The tube with label Osmo HIGH is at the back of
V3, the tube with label Osmo LOW is at the front
of V3
4. Install both long tubes to the PVP bottles.
Connect tube "Osmo LOW" onto the bottle
Osmo LOW bottle
5. Connect tube "Osmo HIGH" onto the Osmo
HIGH bottle
6. Take connection tube from V4 and connect the
tube "H2O" onto the H2O bottle.
