Maintenance
Page 176 Lorrca Maxsis User Manual
Version 5.04 MRN-231-EN

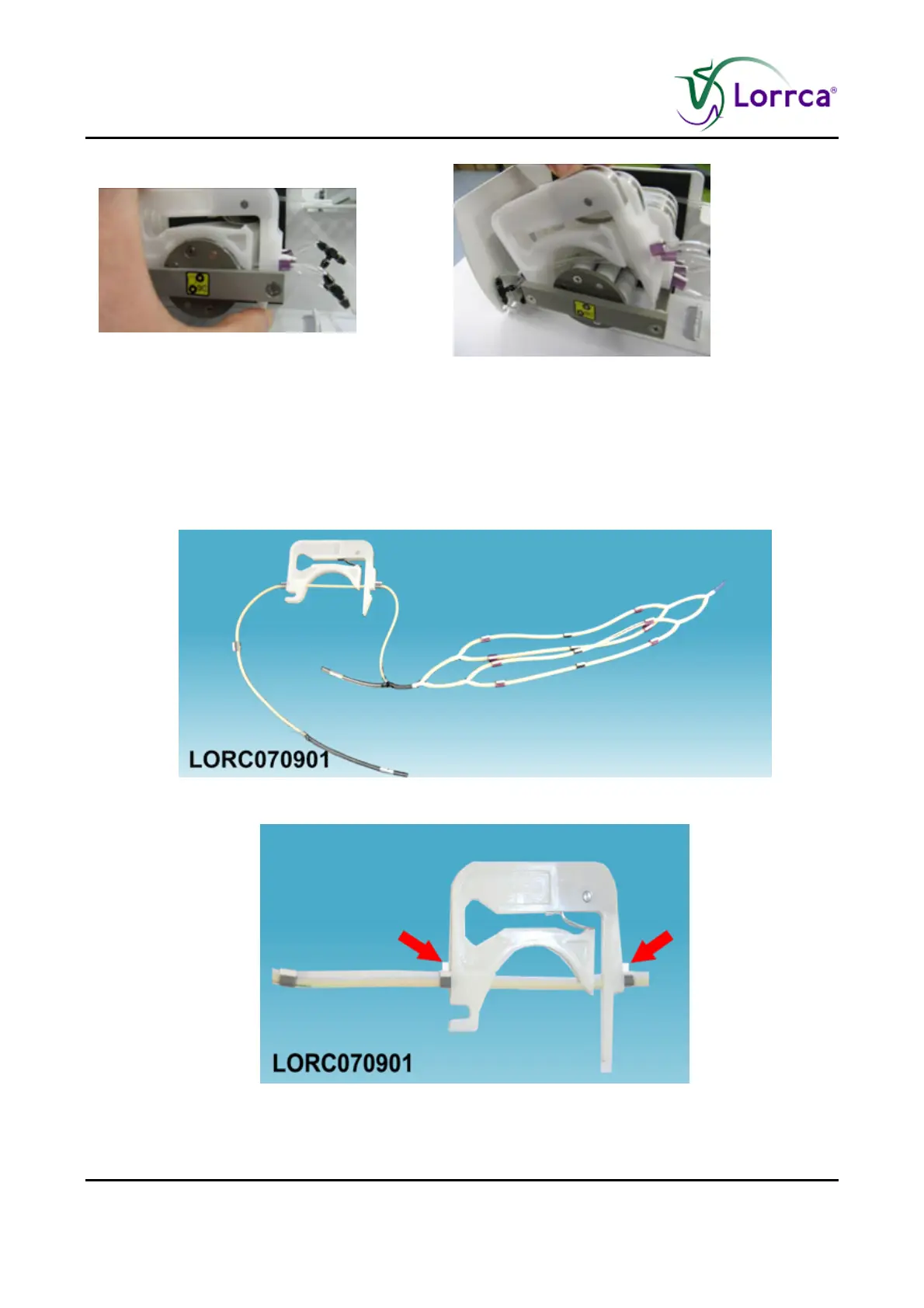

Release the tube cassette.
Replace the tube assembly with new tube
assembly following Install LORC070901
tubing (on page 177) (see also Appendix -
Parts list (on page 191) spare- and
replacement parts)
10.10.5.2. Install LORC070901 tubing
Put the waste tubing labeled with 3 and 5 into the first tube bracket
Assure that the tubing is not twisted and the locking ridge is pointing up
