General operation procedure
Page 126 Lorrca Maxsis User Manual
Version 5.04 MRN-231-EN

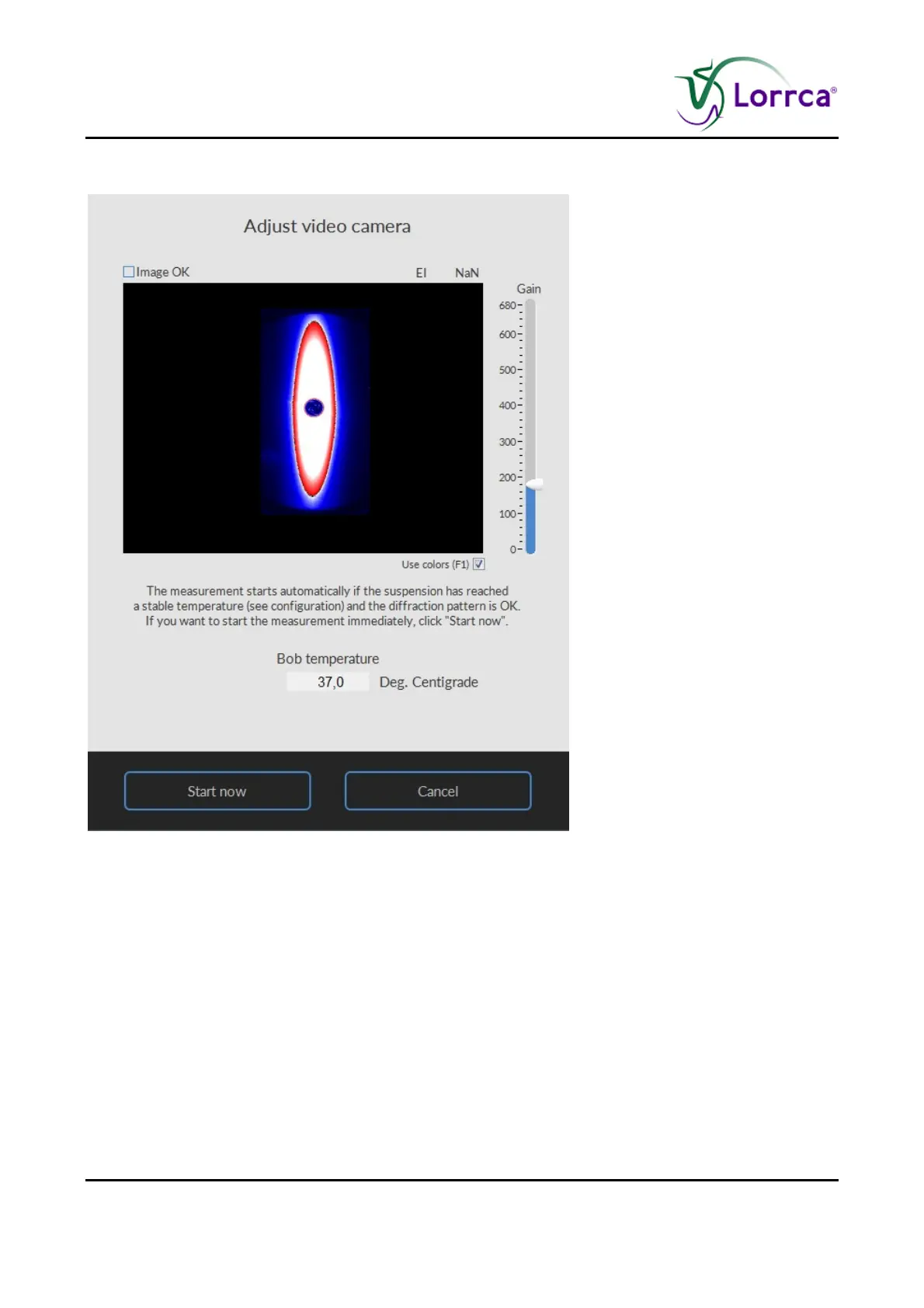

7.6.3. Adjust video camera membrane screen
It displays a coloured version of the diffraction pattern:
It is optional to adjust the camera gain (bar on the right side) until the diffraction pattern image
fills the entire viewing field (green light upper right of screen).
In case the "auto start" is enabled the measurement starts automatically when the temperature
has reached the correct value.
Press <START NOW>.
The measurement starts and the curve starts to appear.
