5.5.3. Camera
With this test, the laser is turned ON (continuous) and the motor speed is maintained as set in any

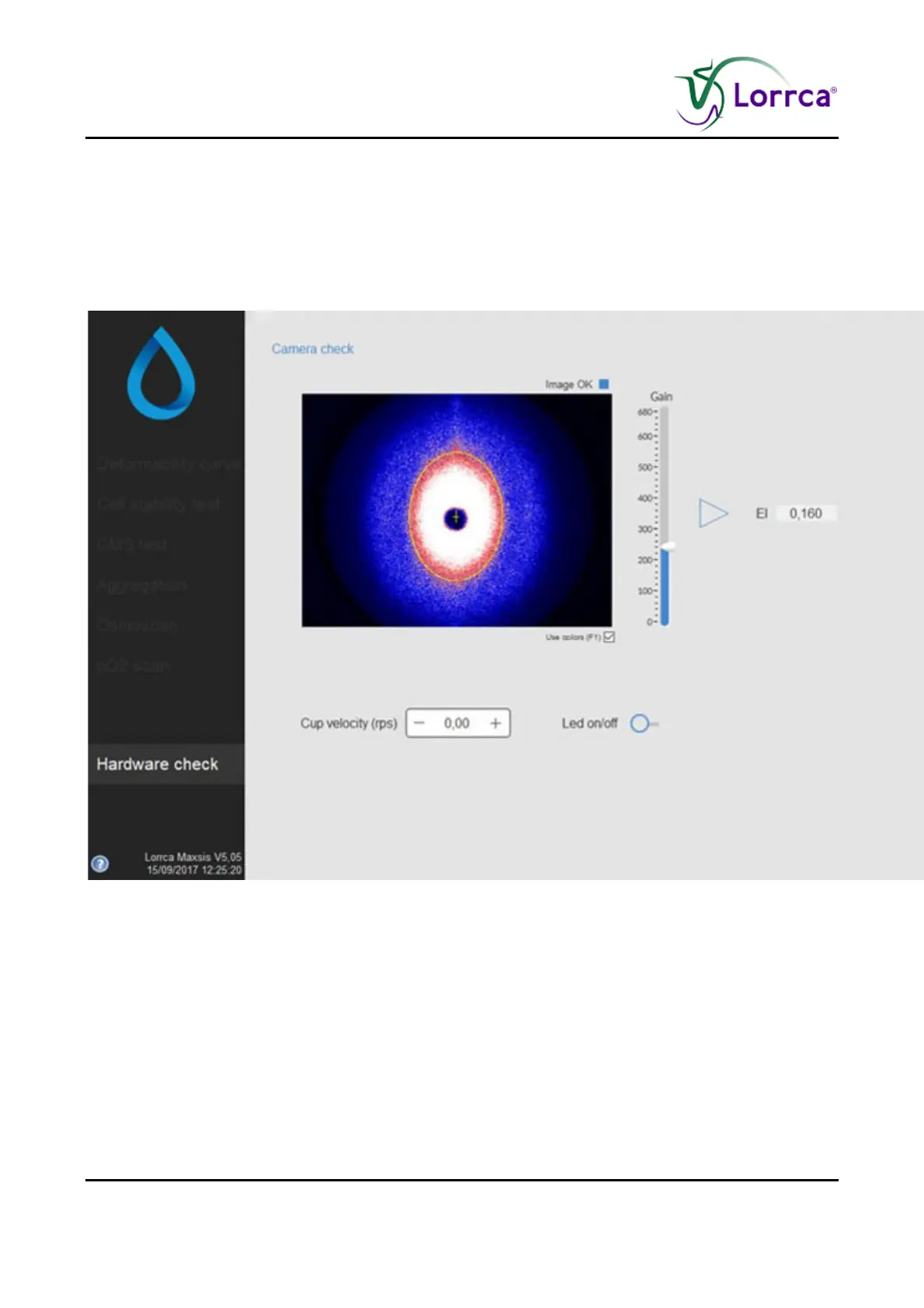

of the other tabs. The image shows a coloured version of the diffraction pattern (see screen). The
“Use colors” check box can be cleared to view the underlying gray scale image.
