Maintenance
Page 180 Lorrca Maxsis User Manual
Version 5.04 MRN-231-EN

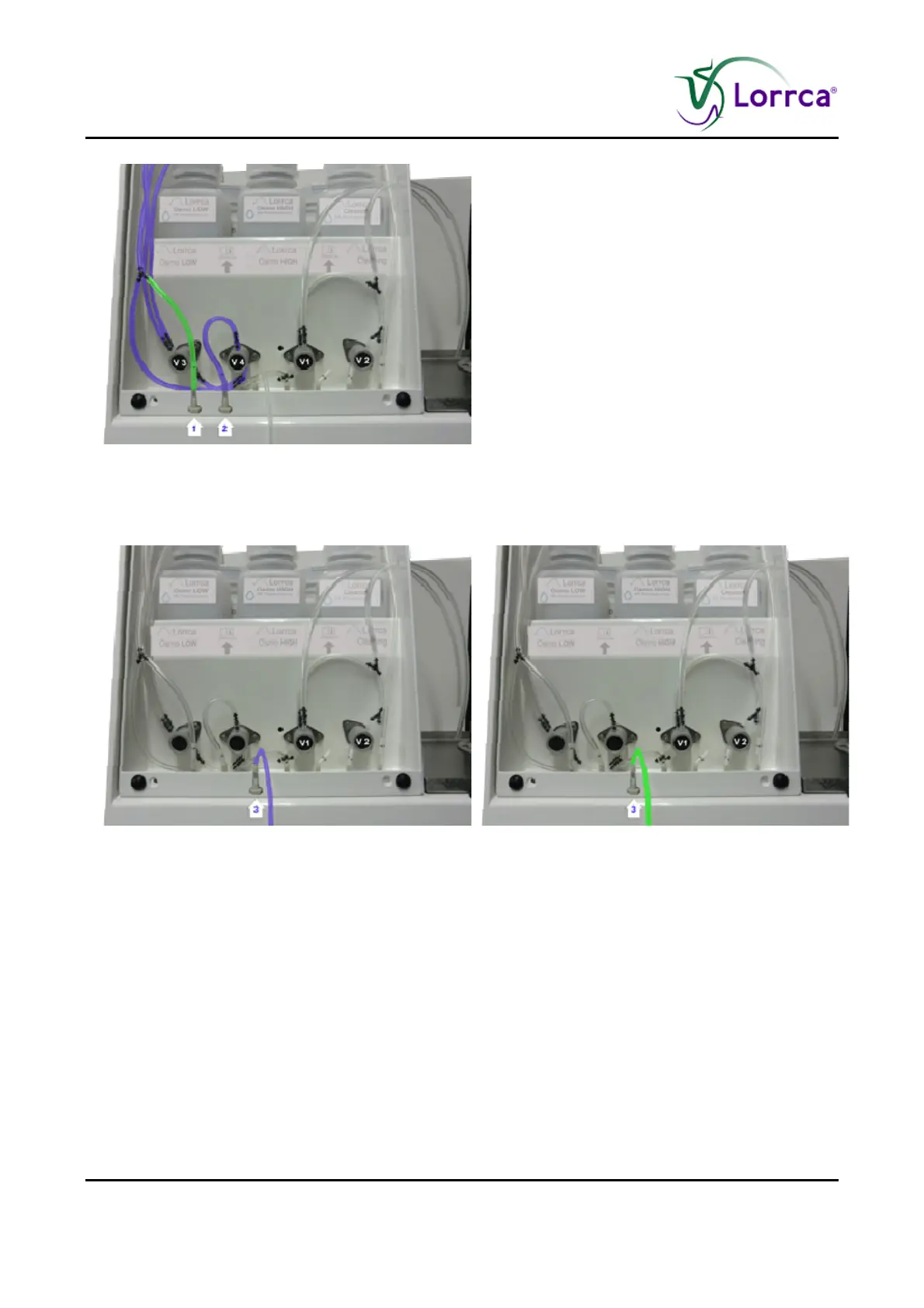

7. Connect the tube "1" onto connector 1.
Tube to needle assembly
1. Connect tube with label 3 on the connector 3 2. Connect the other end to the needle assembly
