Installation
Page 38 Lorrca Maxsis User Manual
Version 5.04 MRN-231-EN

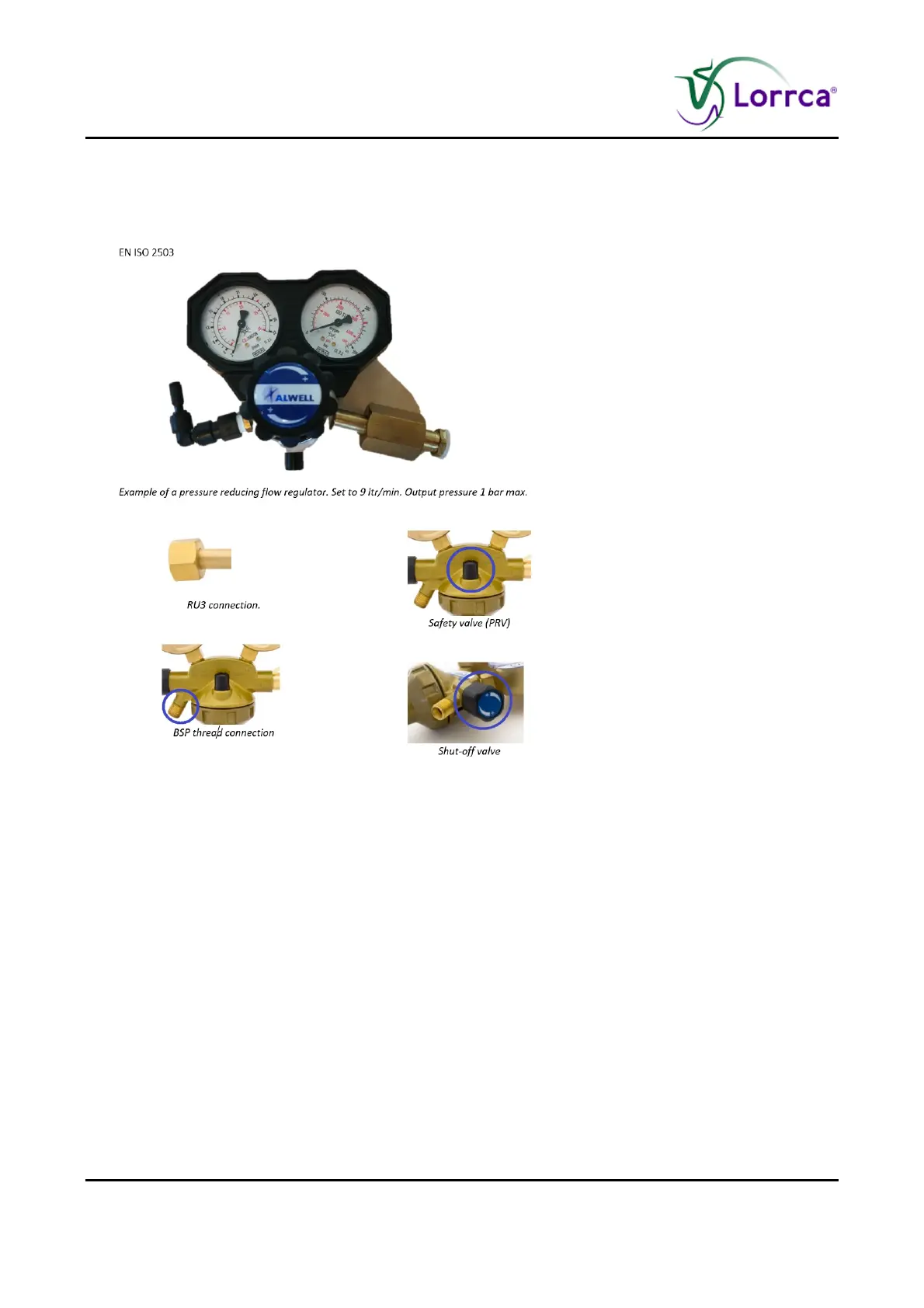

AR-CO2 gas pressure reduction valve / flow regulator: FOR EXAMPLE Alwell type EN ISO
2503 (as depicted) set to 9 ltr/min. Output pressure 1 bar max. RU3 compatible.
Low pressure gas tube connection between pressure reduction valve and pO2 Scan black
tube, which is the PUN system at 4.0 mm outer diameter.
