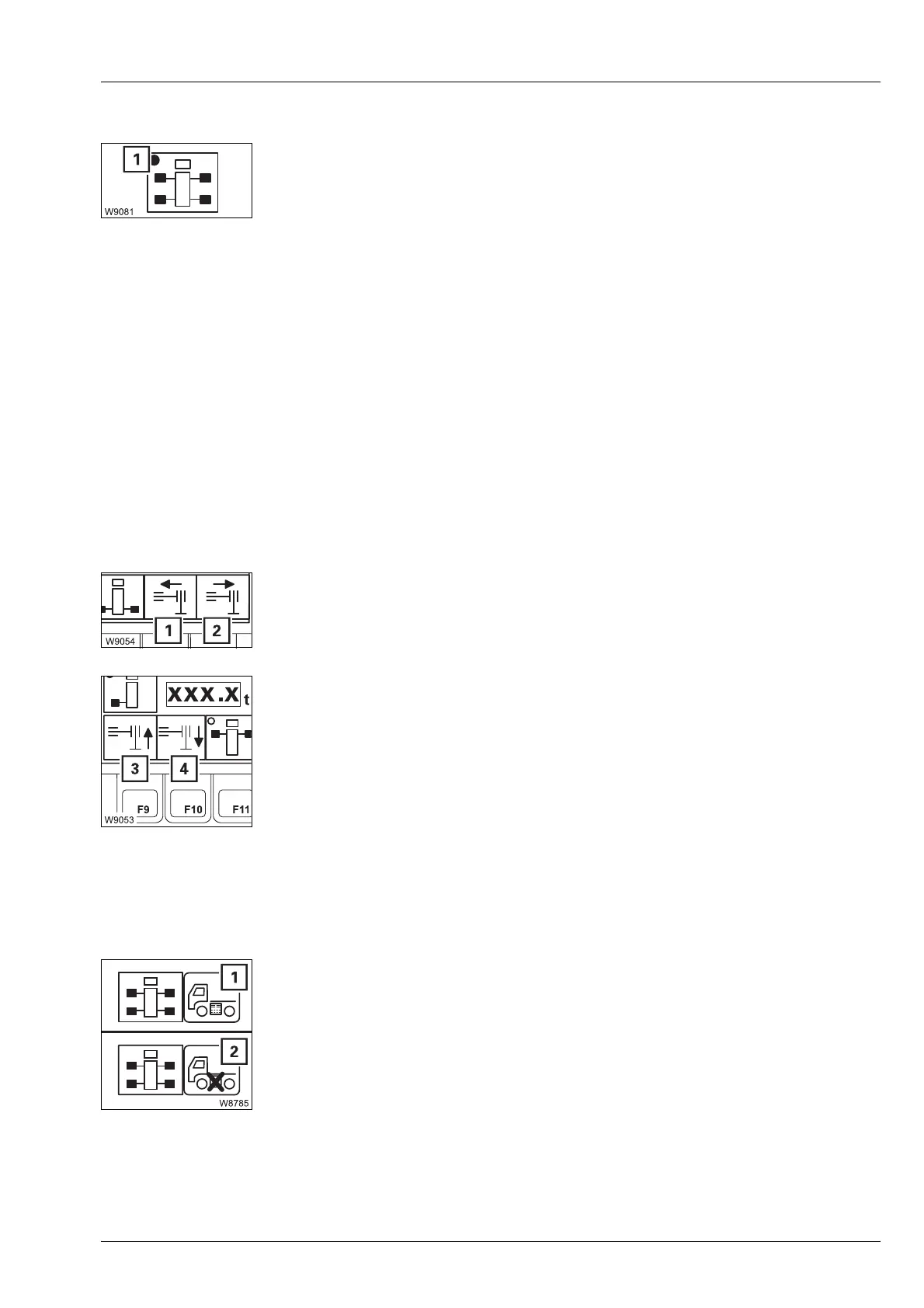

Operating elements for crane operation
9.2 Short description of the operating elements
Operating manual GMK 6400 3 112 993 en 9 - 67
12.07.2013
Pre-selecting the outrigger
All supporting cylinders
: / > 3
The following functions are pre-selected in the same way:
– Front left outriggers
– Front right outriggers
– Rear left outriggers
– Rear right outriggers
< 1 B 7
– Left supporting cylinder
– Right supporting cylinder
– Front supporting cylinder
– Rear supporting cylinder
Retracting/extending supporting cylinders
Slewing gear is switched off – outrigger pre-selection on.
Movement stops after the button is released and when an end position is
reached.
In the Settings
submenu
Outrigger control units on/off
s
– Pre-select: Press button 1 x – dot (1) turns green – pre-selection on
After 10 seconds – dot (1) turns black – pre-selection off
1 To retract: Press button – outrigger beam retracts
2 To extend: Press button – outrigger beam extends
à p. 12 - 41
3 To retract: Press button – supporting cylinder retracts
4 To extend: Press button – supporting cylinder extends
à p. 12 - 48
– Switching on: Press button until symbol (1) appears
– Switching off: Press button until symbol (2) appears
à p. 12 - 33
