Operating elements for crane operation
9.2 Short description of the operating elements
9 - 94 3 112 993 en Operating manual GMK 6400
12.07.2013

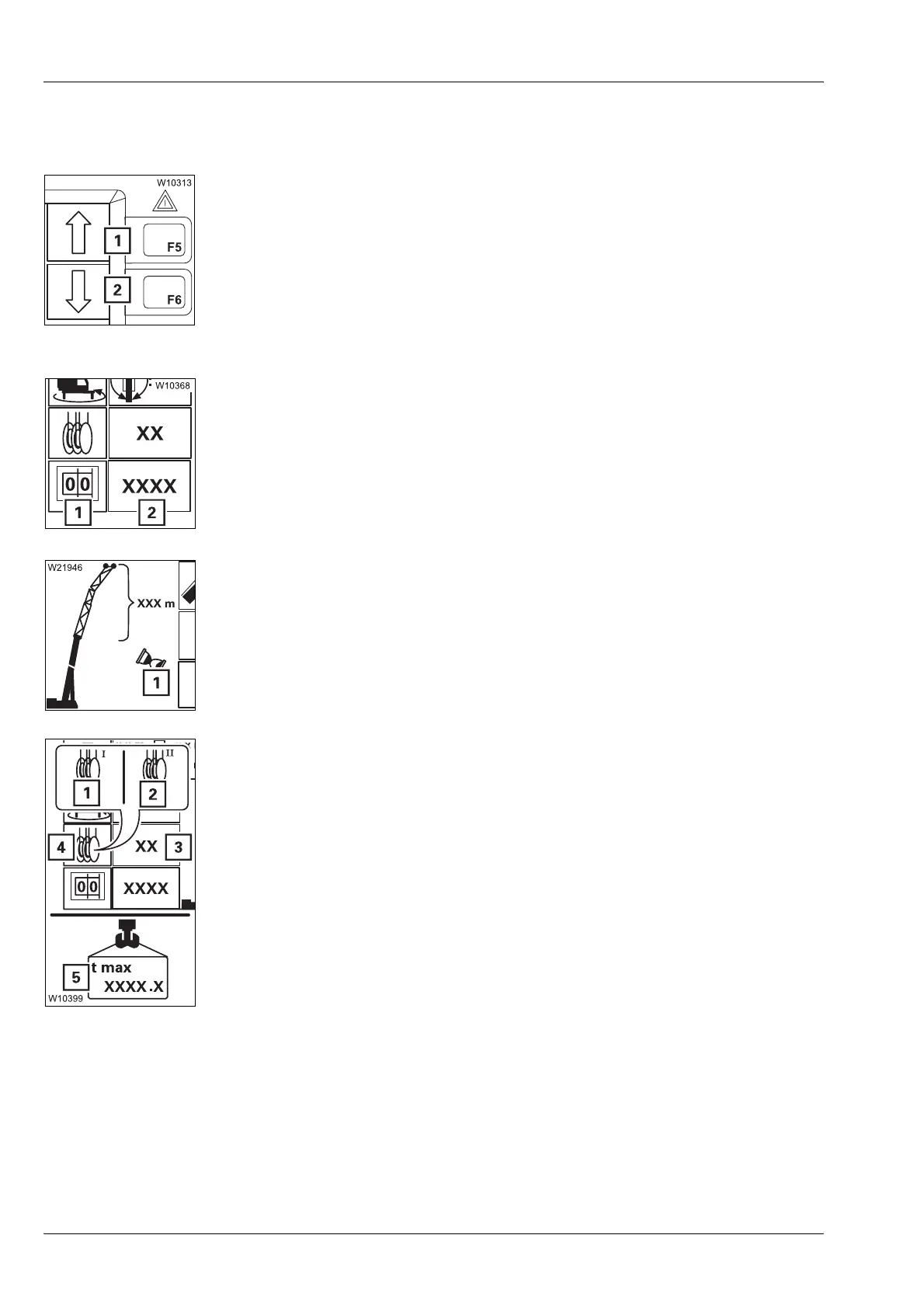

Rigging mode
entry submenu
à Entering the rigging mode, p. 11 - 23
Selection
In input mode
RCL code entry
Determining RCL code display
Entering reeving
1 Press button 1 x – display next highest value
2 Press button 1 x – display next lowest value
– Input mode on: Press button (1) 1 x – symbol turns green
– Input: In input mode, press button
8 9 1 x – next RCL code
on display (2)
à p. 11 - 28
– Symbol (1): RCL code is determined after selecting Rigging mode
– No display: New RCL code is displayed
à p. 11 - 25
– Input mode on: – For main hoist:
Press button (4) until symbol (1) is green
– For auxiliary hoist:
Press button (4) until symbol (2) is green
– Input: In input mode, press button
8 9 1 x
– Reeving +1 on display (3)
– Relevant maximum load on display (5)
à p. 11 - 24
