MD Helicopters MD Explorer - Page 2142

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 406
Original
79-00-00
9G79-005
REF. FIREWALL
5 (NOTE)
10
5 (NOTE)
5
(NOTE)
10
5 (NOTE)
7
6
VIEW FROM TOP
8
9
14
15
13
12
11
12
12
13
11
12
2
2X 3
2X 4
1
12
13
12
11
VIEW LOOKING FORWARD
12
13
14
REF. 8 REF. 9
12
11
5 (NOTE)
5 (NOTE)
5 (NOTE)
5 (NOTE)
NOTE: TORQUE 18 in-lb (2.03 Nm)
1. ENGINE OIL BREATHER ADAPTER
2. ENGINE OIL BREATHER GASKET
3. NUT
4. WASHER
5. HOSE CLAMP
6. ENGINE OIL BREATHER HOSE, LEFT HAND
7. ENGINE OIL BREATHER HOSE, RIGHT HAND
8. ENGINE OIL BREATHER TUBE, LEFT HAND
9. ENGINE OIL BREATHER TUBE, RIGHT HAND
10. ENGINE OIL BREATHER HOSE, AFT
11. SCREW
12. WASHER
13. NUT
14. CLAMP
15. BRACKET

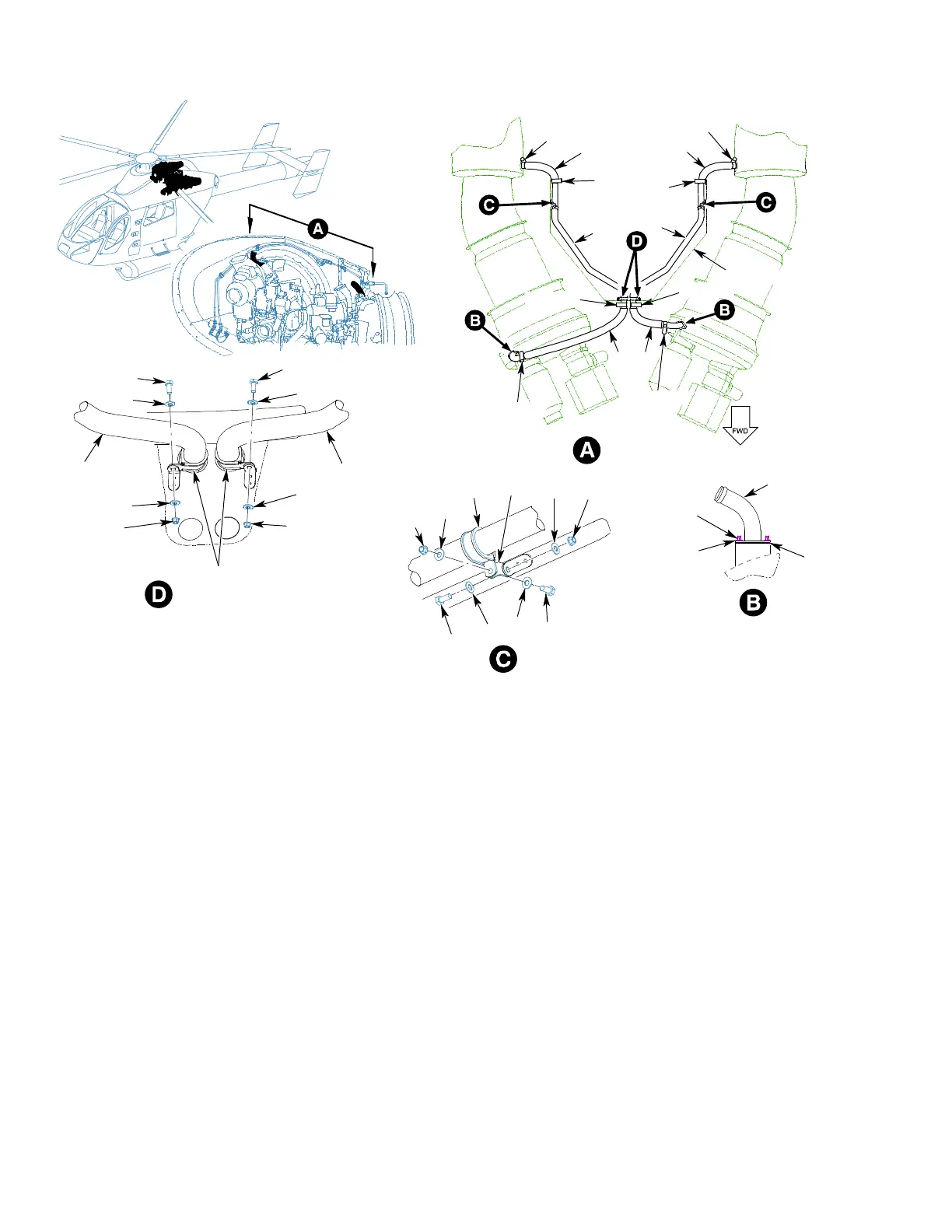

Figure 402. Engine Oil Breather System
