CSP−900RMM−2MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 213
Revision 35
06-00-00
9G06-005
B142
B178
B230

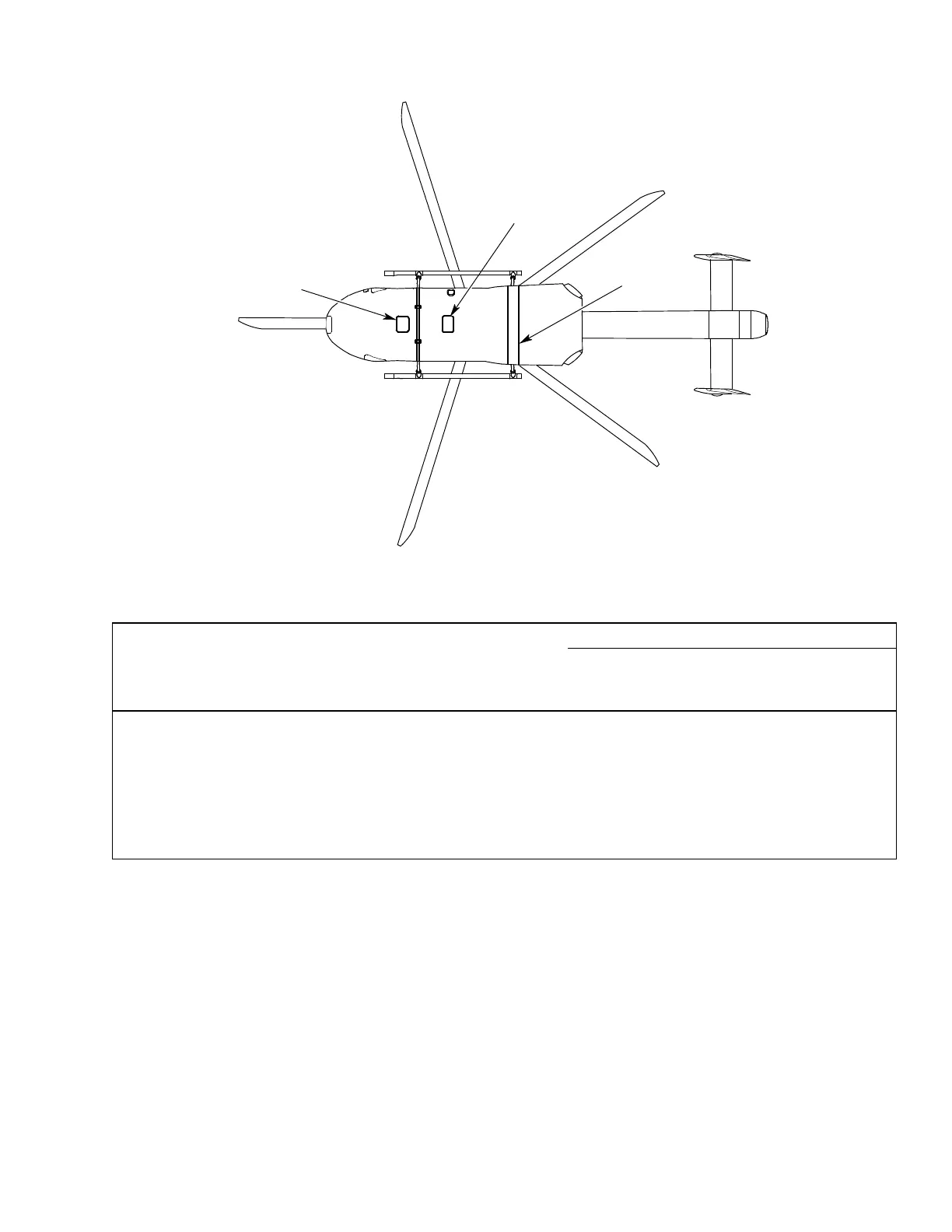

Figure 209. Bottom View Access Panels
Legend (Ref. Figure 209)
Item
No.
Name Permits Access To
Removal and Installation
Quantity Type
Method
Ref.
Figure 204
B142 Center Access Panel
Assembly
Throttle Interconnect Cable, RH
Collective
14 Screw L
B178 Sump Access Panel
Assembly
Fuel Sump Drain Valves 22 Screw L
B230 Crosstube Cover
Assembly (Aft)
Landing Gear Crosstube Aft 30 Screw L
