MD Helicopters MD Explorer - Page 320

CSP−900RMM−2 MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 204
Revision 26
11-00-00
THRU
THRU
THRU
THRU
4. MCDONNELL DOUGLAS LOGO
5. BATTERY ACCESS LOCATION
6. STATIC PORT
7. AVIONICS ACCESS
8. PUSH INFORMATION
9. NO PUSH INFORMATION
10. EXTERIOR COCKPIT
DOOR (RIGHT SIDE)
11. EXTERIOR COCKPIT
DOOR (LEFT SIDE)
12. 28 VDC LOCATION
13. JACK PAD
14. NO STEP INFORMATION
1. FUEL FILL LOCATION
9G11-001-2G
OPEN
SAFELOCK
SLAM
KEY
LOCK
SAFELOCK
key
lock
SLAM
OPEN
SAFELOCK
key
lock
SLAM
OPEN
2. REGISTRATION NUMBER,
WHITE, RH
3. REGISTRATION NUMBER,
WHITE, LH

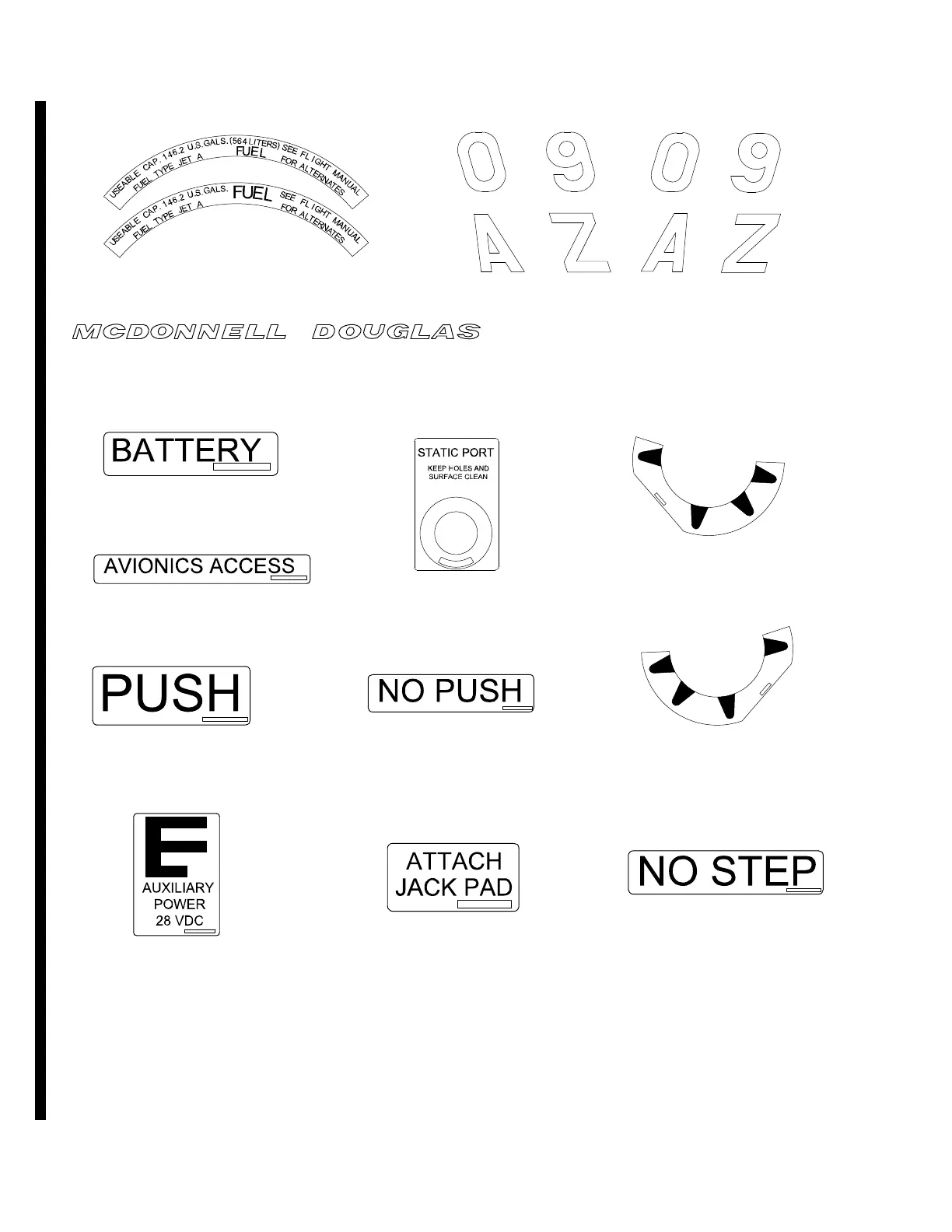

Figure 201. Exterior Decal Installation (Sheet 2 of 3)
