CSP−900RMM−2MD Helicopters, Inc.
Rotorcraft Maintenance Manual
Page 205
Revision 26
11-00-00
15. FUEL DRAIN 16. FUEL SHROUD DRAIN 17. COMMON DRAIN 18. FUEL DRAIN
CONTROLS
19. PLATE IDENTIFICATION
EXTERIOR, MDX, MISC
21. ELECTRICAL DISCONNECT
CAUTION
23. GROUND SYMBOL
22. EXTERIOR DOOR
INSTRUCTION, BAGGAGE
20. ENGINE OIL FILL
24. EXTERIOR CABIN DOOR
INSTRUCTION (RIGHT SIDE)
(NEW CONFIGURATION
LATCH MECHANISM)
26. FUEL CAP DECAL
25. EXTERIOR CABIN DOOR
INSTRUCTION (LEFT SIDE)
(NEW CONFIGURATION
LATCH MECHANISM)
27. RANGE EXTENDER
9G11-001-3
CAUTION
DISCONNECT ELECTRICAL WIRING
BEFORE REMOVING BOOM
28. FUEL FILL LOCATION
SUPPLEMENTAL FUEL SYSTEM
PROD CERT NO.
TYPE CERT NO.
SERIAL NO.
MODEL NO.
MESA, AZ.
HELICOPTER SYSTEMS
MCDONNELL
USEABLE CAP. 158.5 U.S. GALS.
WITH RANGE EXTENDER INSTALLED
24. EXTERIOR CABIN DOOR
INSTRUCTION (RIGHT SIDE)
(ORIGINAL CONFIGURATION
LATCH MECHANISM)
25. EXTERIOR CABIN DOOR
INSTRUCTION (LEFT SIDE)
(ORIGINAL CONFIGURATION
LATCH MECHANISM)

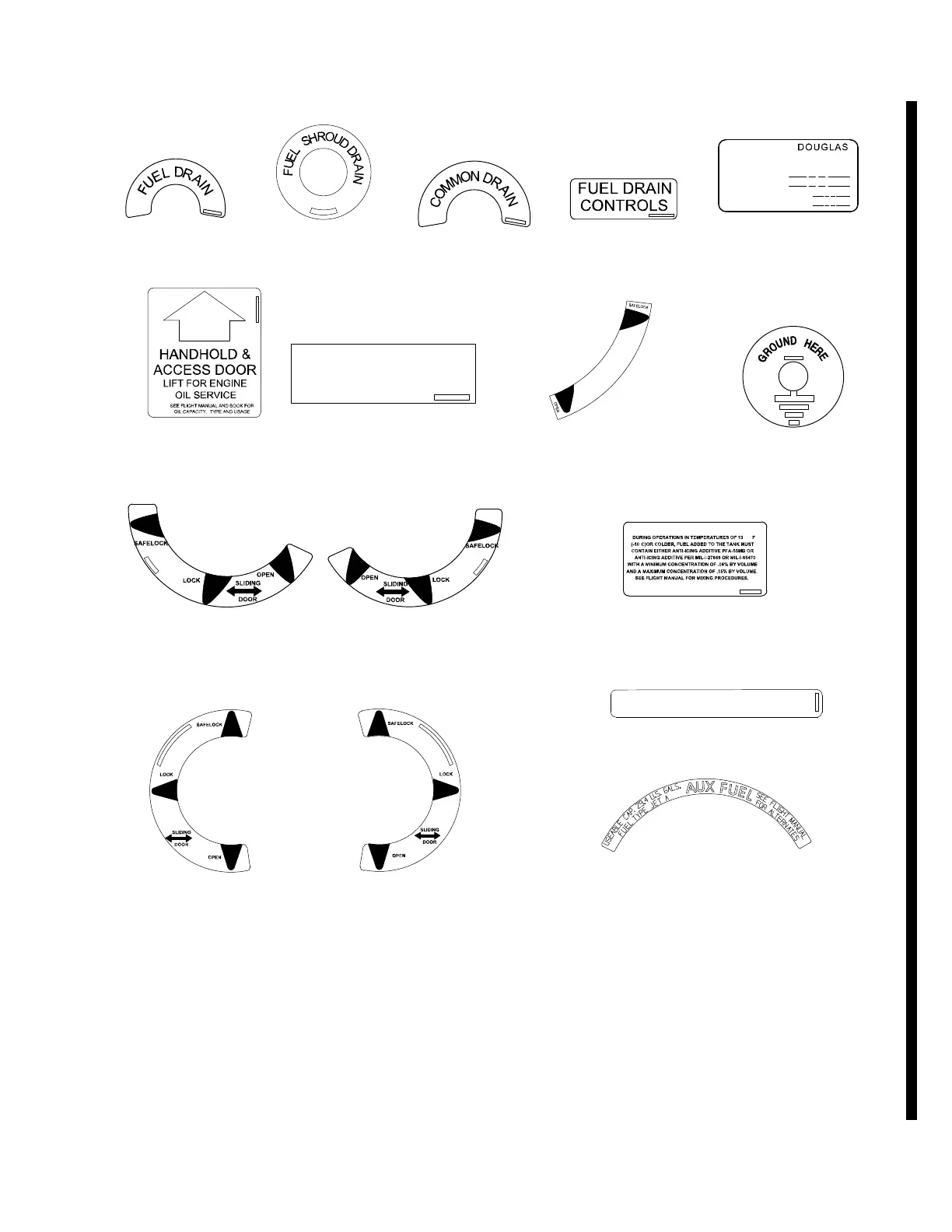

Figure 201. Exterior Decal Installation (Sheet 3 of 3)
