(g). Connect pump control hose (5) to
pump control port fitting. Torque
hose fitting.
(4). Service both hydraulic systems (Ref.
Section 12-00-00).
(5). Slowly loosen pump control hose (5)
fitting until fluid begins to seep from
fitting. Allow fluid to drain until air is
bled from line.
(6). Torque pump control hose (5) fitting.
(7). Safety all hose fittings with lockwire
(C702).
(8). If necessary, service both hydraulic
systems (Ref. Section 12-00-00).
(9). Pressure leak test both hydraulic
systems (Ref. Section 29-00-00).
(10). Install swashplate forward fairing
assembly T155. Install and close
forward access door L155 or R155 (Ref
Section 06-00-00).
9G29-007
NOTE: PUMP PORT FITTINGS AND ATTACHING HARD
WARE
9
8
1
2
3
4
5
6 (4 PL)
7 (4 PL)
8
1. PUMP PRESSURE HOSE
2. PUMP SUCTION HOSE
3. PUMP CASE DRAIN HOSE
4. FLEXIBLE DRAIN TUBE
5. PUMP CONTROL TUBE
6. NUTS
7. WASHERS
8. HYDRAULIC PUMP
9. PACKING

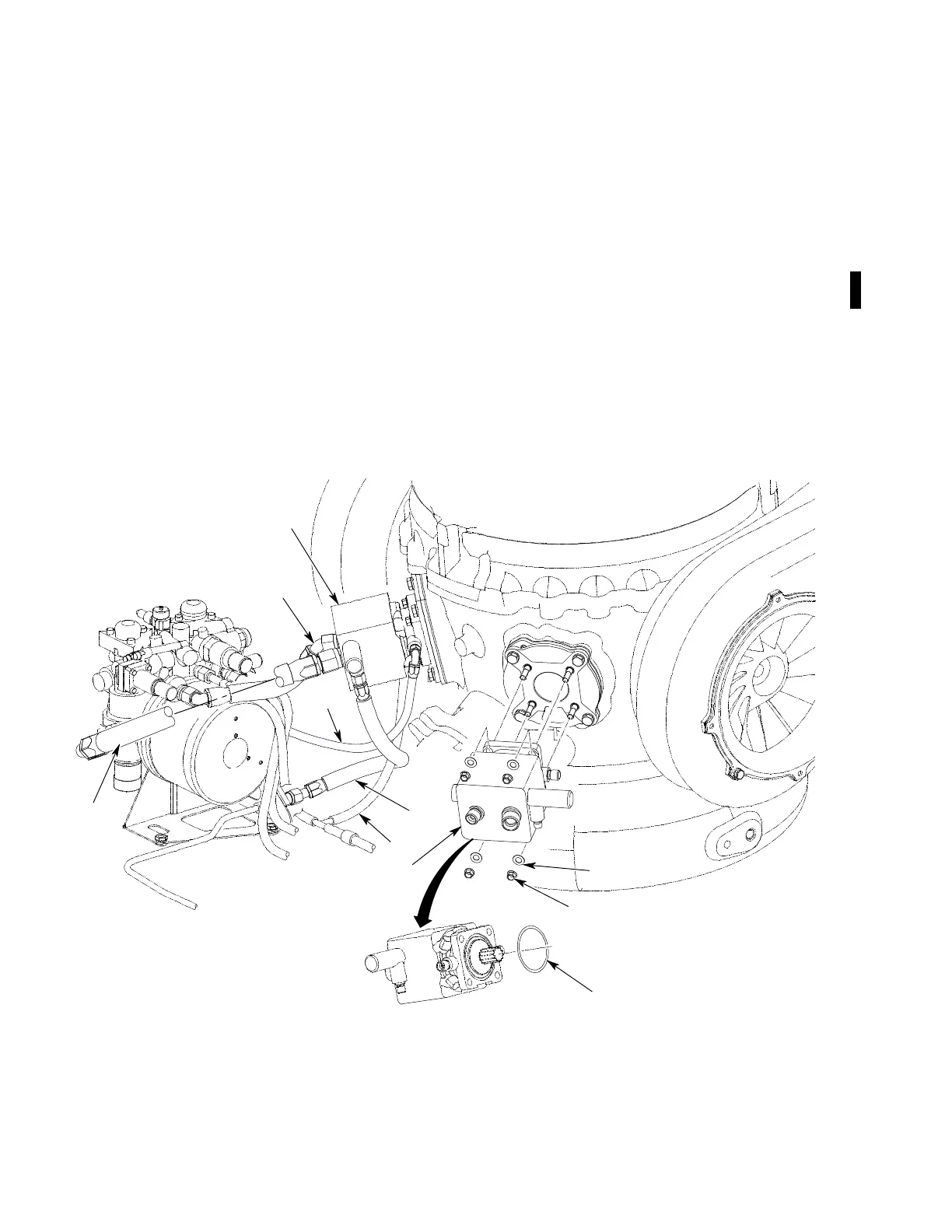

Figure 203. Hydraulic Pump Removal/Installation
