Probes and Biop
sy
18-12

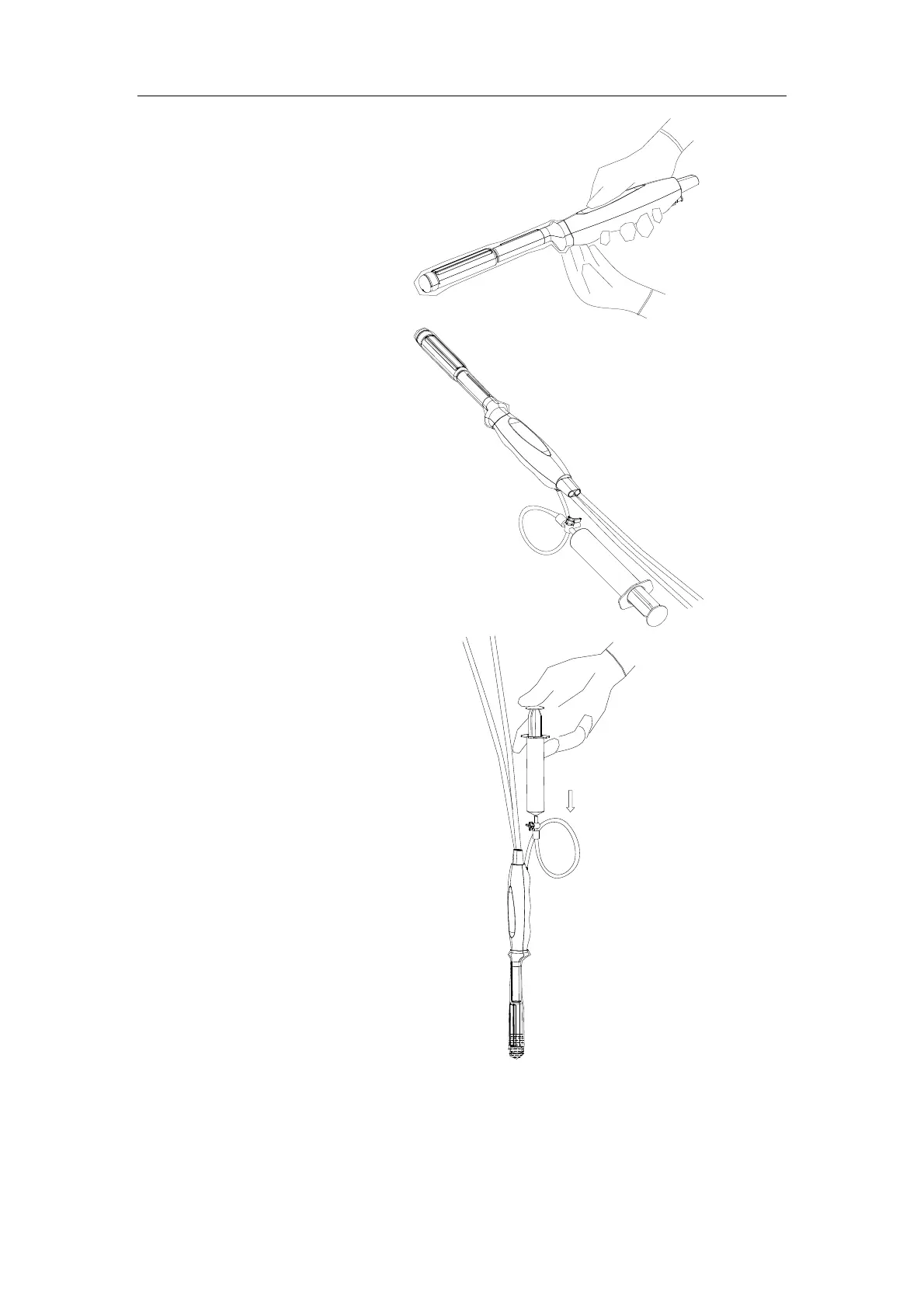

1.
Put on the transducer cover.
For the procedures of putting
on the transducer sheath, refer
to subsection above. Check
the transducer sheath for
wrinkles and gaps.
2.
Fill syringe with sterile water
and connect extension tube to
syringe, discharge all air in the
tube. Attach the syringe to
transducer fill port.
3.
Orientate the transducer
downward and inject sterile
water up to the level a few cm
above the end of the
transducer surface.
205
207
