7.1.5 Thumbnail Area of Images Saved
This area displays the thumbnails of saved images for the current patient.
7.1.6 Body Mark Area
In the body mark status, this area displays the available body marks.
7.1.7 Area of Help Information and Cursor Icon
The help information area displays various help information or progress bar in the current
status.
The status icon area indicates the current cursor status.
7.1.8 Soft Menu Area
The soft menu items displayed are related to image mode and preset.
To preset menu items displayed in soft menu in each image mode:
z Press [Setup] key on the control panel to show the [Setup] menu.
z Click [Key and Menu Preset] item to open the [Key and Menu Preset] screen.
z The [Image Params] page is opened by default.
z Select items in [Available Items] box on the left side.
z Move the selected items to the [Softkey] page for the soft menu.
z Click [OK] button.
The soft menu area displays the functions respectively corresponding to the soft menu
controls in the current mode. The menu items are operated through the soft menu
controls on the control panel. The soft menu items vary depending on the preset in each
image mode. The following is an example.

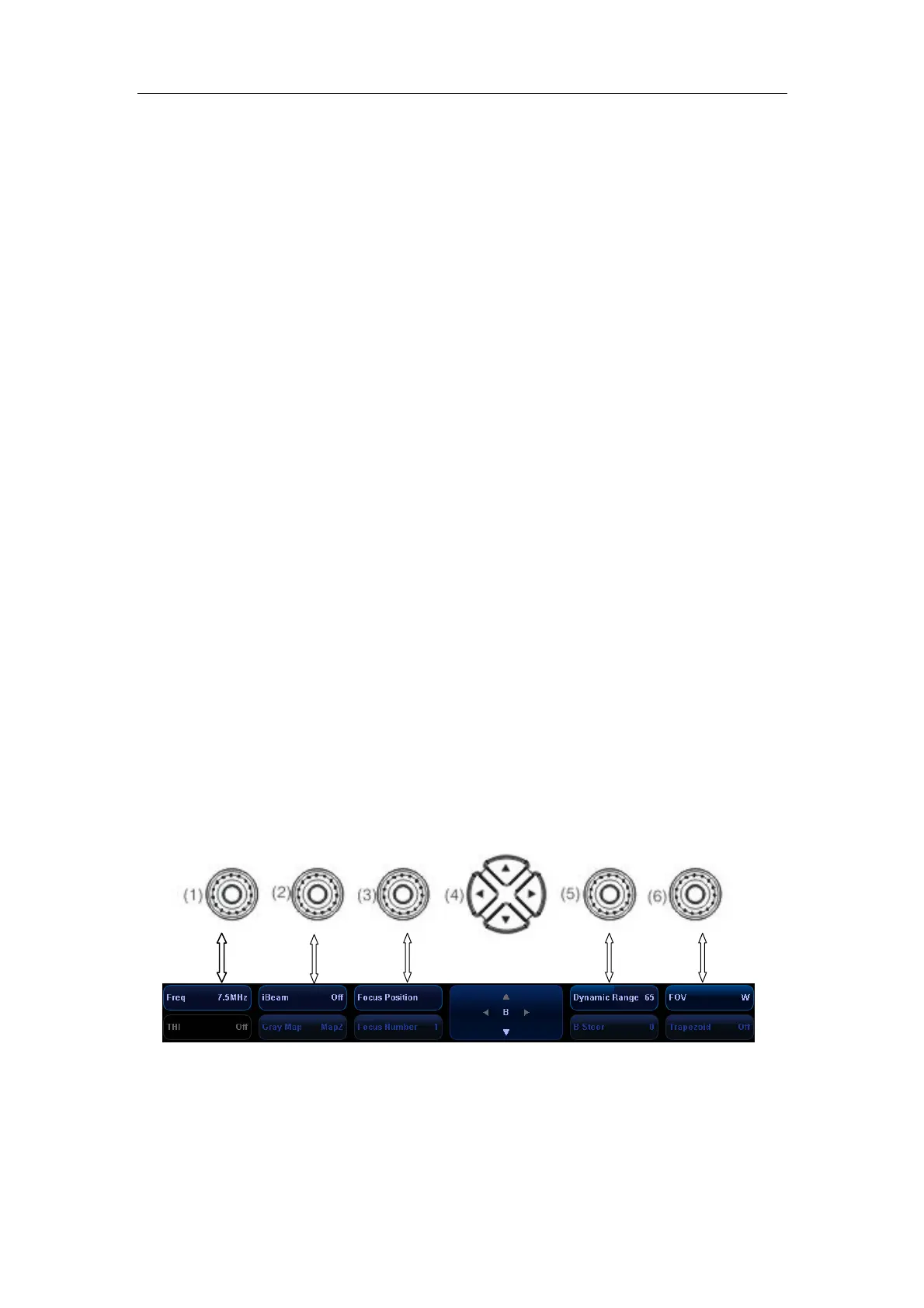

The soft menu controls are located at the top of the control panel, shown in the following
figure (Taking the B mode menu as an example).
The up / down keys in <4> are used to turn pages up or down when the soft menu has
multiple pages; the left / right keys in <4> are used to toggle between modes. You can
operate the items only when they are highlighted.
