The soft menu items vary depending on the menu. The menu navigation will cause the
change of the menu, while the change of the menu will cause the menu navigation.
The soft menu items are operated respectively through the five groups of soft menu
controls <1>, <2>, <3>, <5> and <6>. The soft menu items can also be adjusted by [Set]
or [Back] on the control panel. Move the cursor onto a soft menu item and press <Set> or
[Back] to change the parameter of the item.
When the current page of the soft menu is selected, all items are highlighted. After the
page is turned to another, the previous page is darkened.
7.1.9 System Status Area
This area displays the relevant system icons, such as USB memory device, printer,
network, Chinese / English entry, and current system time, etc.
7.1.10 Measurement Result Area
The measurement result area displays the results of recently performed measurements.
You can move this area within the whole screen.
7.2 Basic Operations of Screens

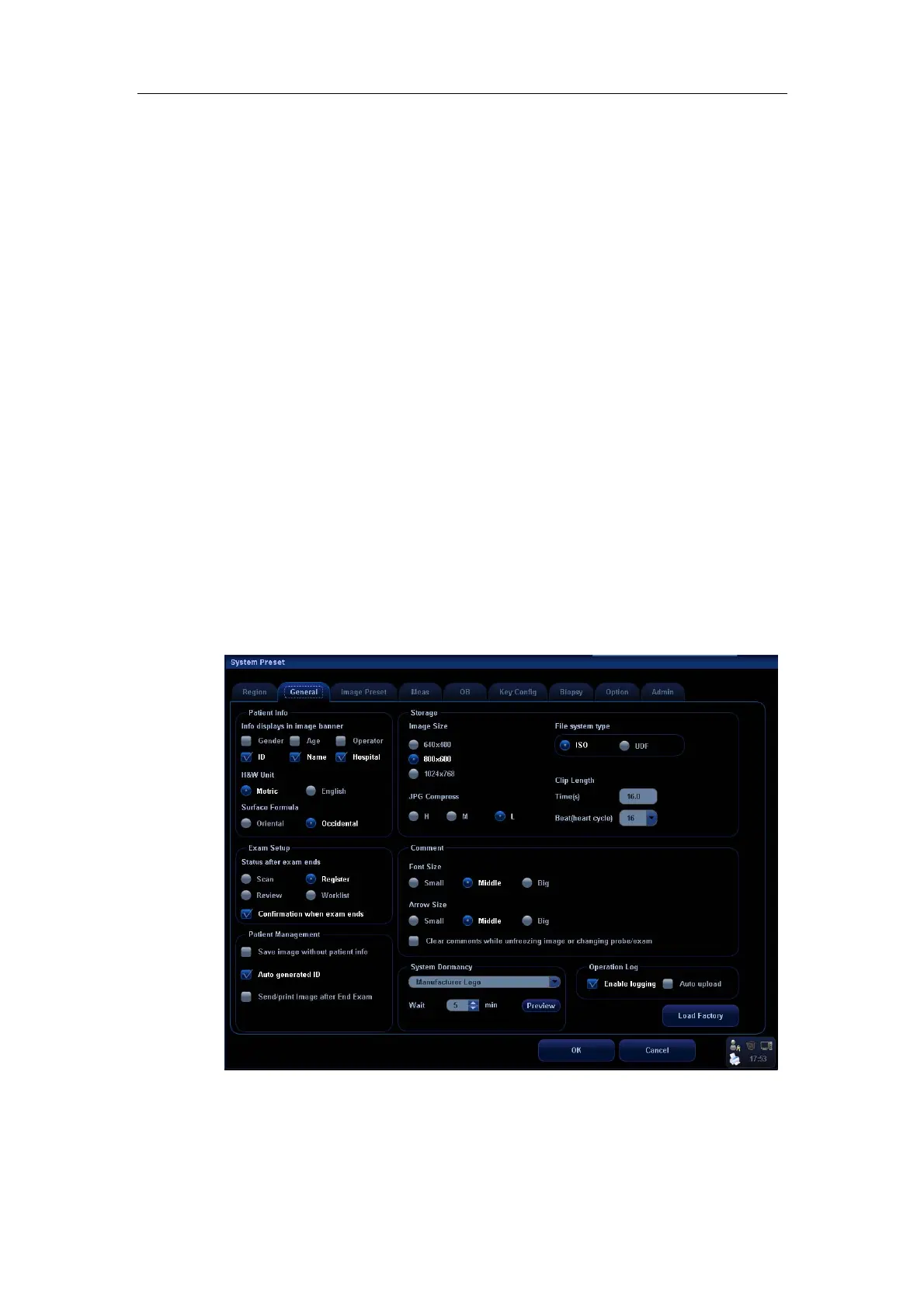

The schematic of a screen is shown in the figure below. A screen consists of title, page
tabs, content and buttons.
Title bar
Page tab
Content
Functional
buttons
To Next Page
