ECG
19-2
.
19.2 Displaying ECG Signal
To display ECG signal, press the ECG user-defined key on the control panel, or select
ECG through the menu title to enter the ECG menu.
îš„ ECG Display
Select [Display On] in the ECG menu to display the ECG waveform.
îš„ ECG Position
Select [ECG Position] in the ECG menu to change the baseline position of ECG
waveform.
îš„ ECG Gain
Select [ECG Gain] in the ECG menu to control the amplitude of ECG waveform.
19.3 ECG Triggering
19.3.1 ECG Triggering
ECG triggering means that image scanning is activated at some time points of ECG
signals, thus obtaining B images at these time points.
When ECG triggering occurs, some marks appear on the ECG waveform, indicating the
time points when the B images are captured.

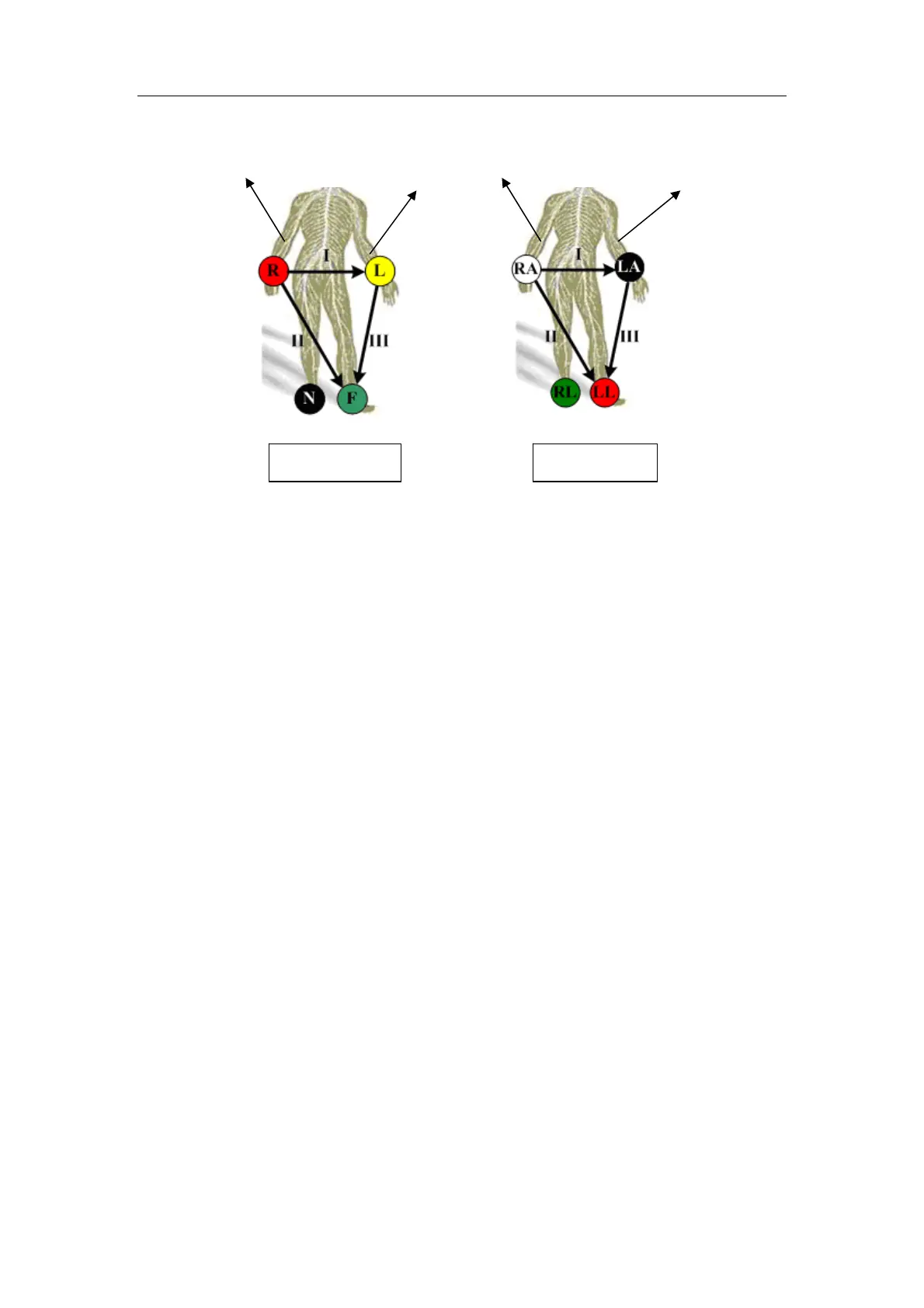

IEC standard AHA standard
Red
Yellow
Green Black
Black
Green Red
White
Left
Right
Left Right
