System Introduction
4-3

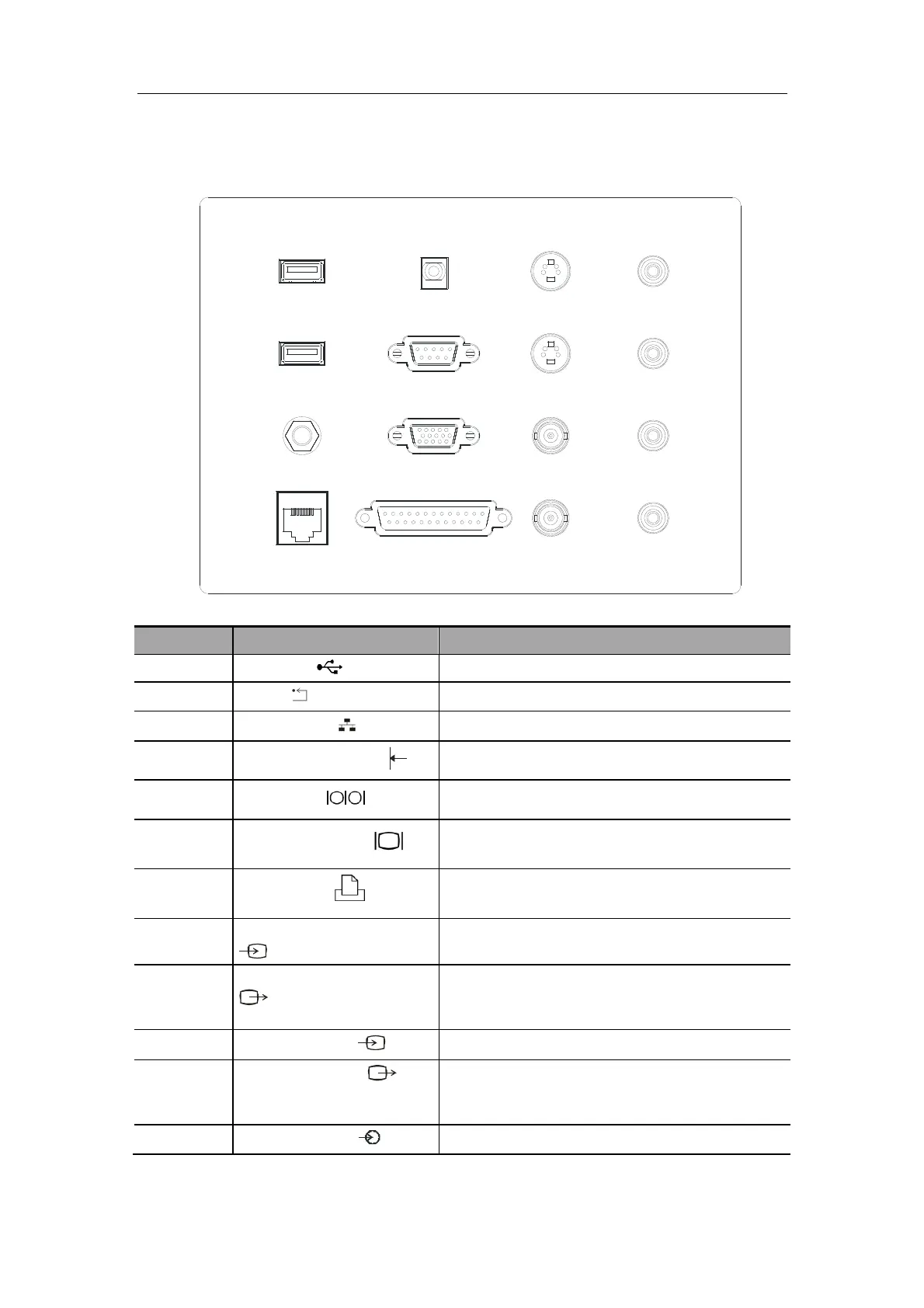

4.2 I/O Panel
No Name Function
(1), (2) USB ports Used for connecting USB devices
(3)
Reset
System reset
(4)
Ethernet port
Used for network connection
(5)
Remote control port
Connects the control port of the video printer
(6)
Serial port
Connects a serial port device
(7)
VGA output port
Connects a monitor or projector
(8)
Parallel port
Reserved.
(Connects a parallel port device)
(9) Separate video input port
Used for separate video signal input
(10) Separate video output port
Used for separate video signal output,
connecting VCR’s output format signals or
video printer
(11)
Video input port
Used for composite video signal input
(12)
Video output port
Used for composite video signal output,
connecting VCR’s output format signals or
video printer
(13), (14)
Audio input port
Used for audio signal input, left and right track
(1)
(5)
(9)
(13)
(2)
(6)
(10)
(14)
(3)
(7)
(11) (15)
(4)
(8) (12)
(16)
