Probes and Biopsy
18-11

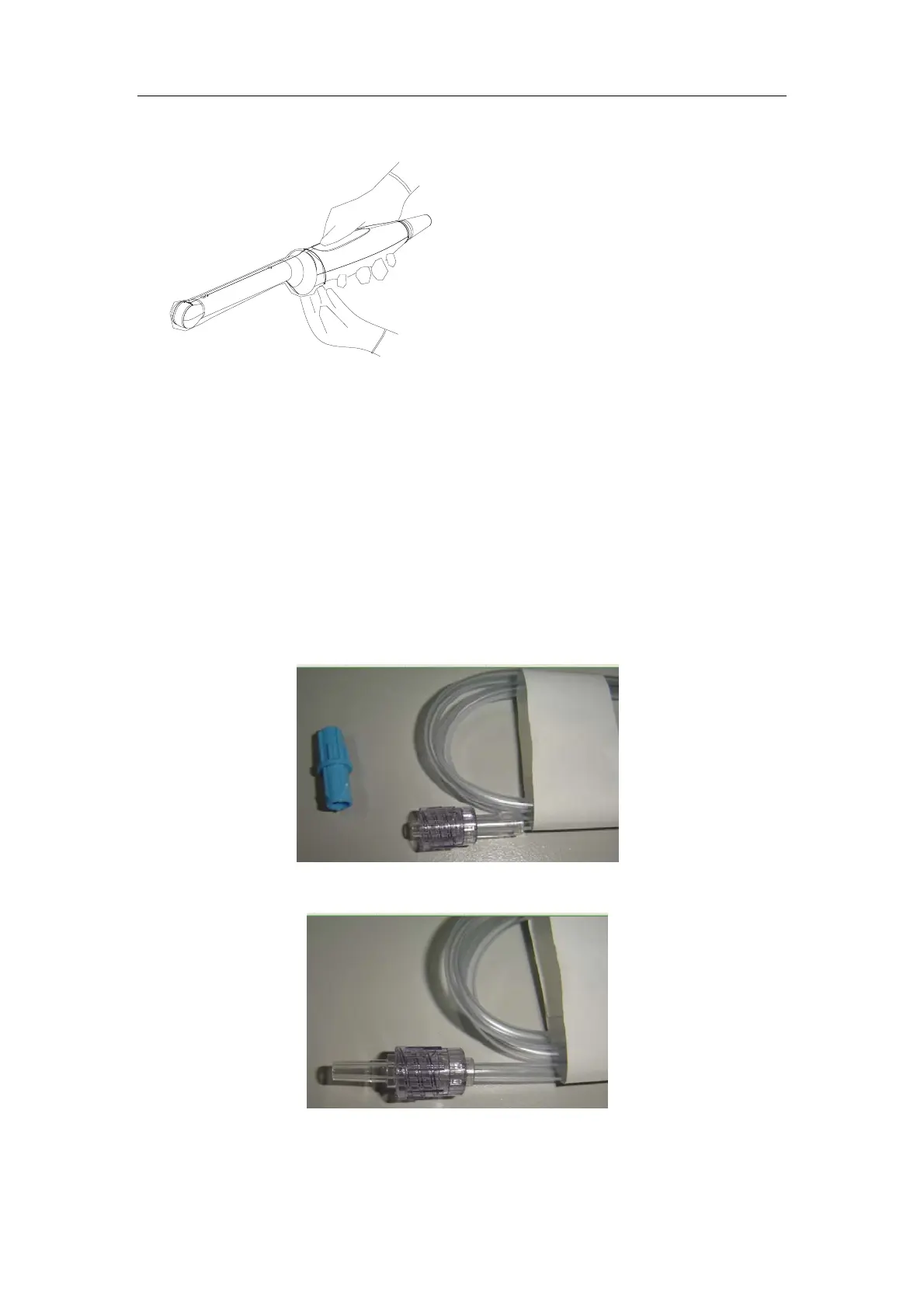

3. Secure the sheath with enclosed elastic
bands.
4. Inspect the sheath to ensure there is
no hole or tear.
18.1.5 When the Immersion Method is used (for 6LB7
and 6LE7)
The transducer manufacturer recommends a syringe: CIVCO 610-224. Here takes
transducer 6LB7 as an example to introduce the immersion method.
Please perform the following operations before using the syringe.
1． Open the syringe pack and take out the syringe.
2． See the following figure; take out the dustproof cap at the end of the syringe’s
extension tube.
3． See the following figure, push back the locking nut and make the connector come out.
The connector will be connected to the transducer’s injection/drainage port.
Please refer to the following operations when the immersion method is used.
