Probes and Biopsy
18-25
îš„ NGB-007

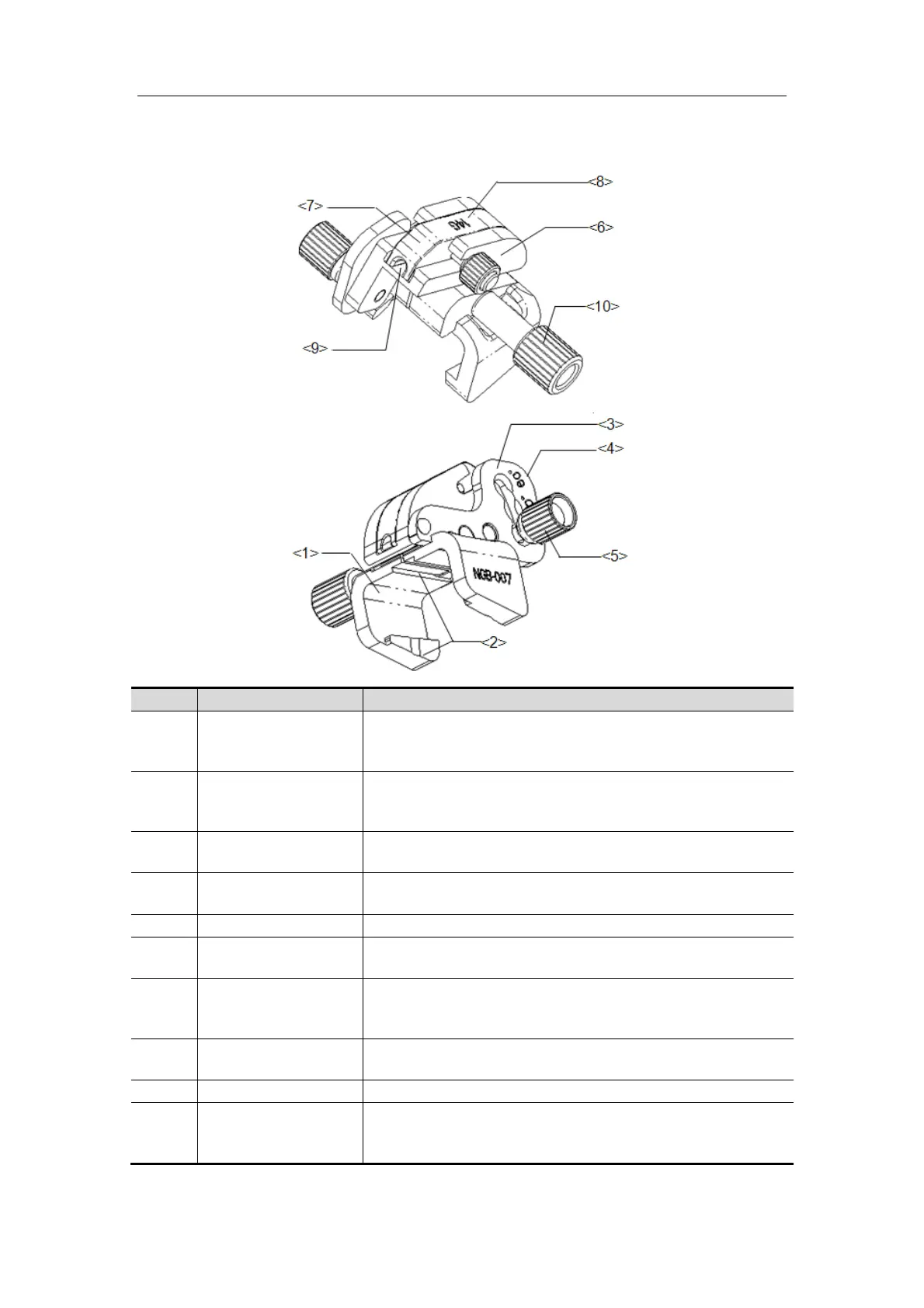

Metal/needle detachable needle-guided bracket:
No. Name Description
<1>
Support of
needle-guided
bracket
Used for installing the needle-guided bracket on the
probe.
<2>
Groove and tab of
the needle-guided
bracket
Respectively matched with the tab and groove of the
probe.
<3>
Angle adjusting
base
There are 3 types of angles available to be adjusted.
<4>
Angle shift sign (40°,
50°, 60°)
Matched with the biopsy angle (40°, 50°, and 60°).
<5> Angle pinch nut Used for fixing the angle lock at a chosen angle.
<6> Angle block
Used for determining the angle of the biopsy; different
specifications of blocks can be used.
<7> Guiding block
Used for installing biopsy needle; there are five
specifications of guiding blocks for different biopsy
needles.
<8>
Specification of
guiding block (14G)
Matched with the corresponding biopsy needle (14G).
<9> Needle guide hole Used for installing the biopsy needle.
<10>
Pinch nut of
needle-guided
bracket
Used for locking the needle-guided bracket and the probe.
