PROTOCOL-SPECIFIC INFORMATION
157
9
ii) If “Cache Connections” is enabled
(checked), the connection remains
open after transmission. If disabled
(unchecked), the connection is
opened before and closed after every
transmission. For efficiency, it is
recommended to enable “Cache
Connections”.
e) Click “OK” to close the MSG
Configuration dialog. At this stage,
MainRoutine should look like Figure 61.
5) Assign a tag to the XIO element.
a) Double-click on the XIO element located
to the left of the MSG block. In the drop-
down box, double-click on the
“connection.EN” field. Refer to Figure 62.
This configuration causes the MSG
instruction to automatically retrigger itself
when it completes. While this is
acceptable for the purposes of this
example, it can produce high network
utilization. In actual practice, it may be
desirable to incorporate additional logic

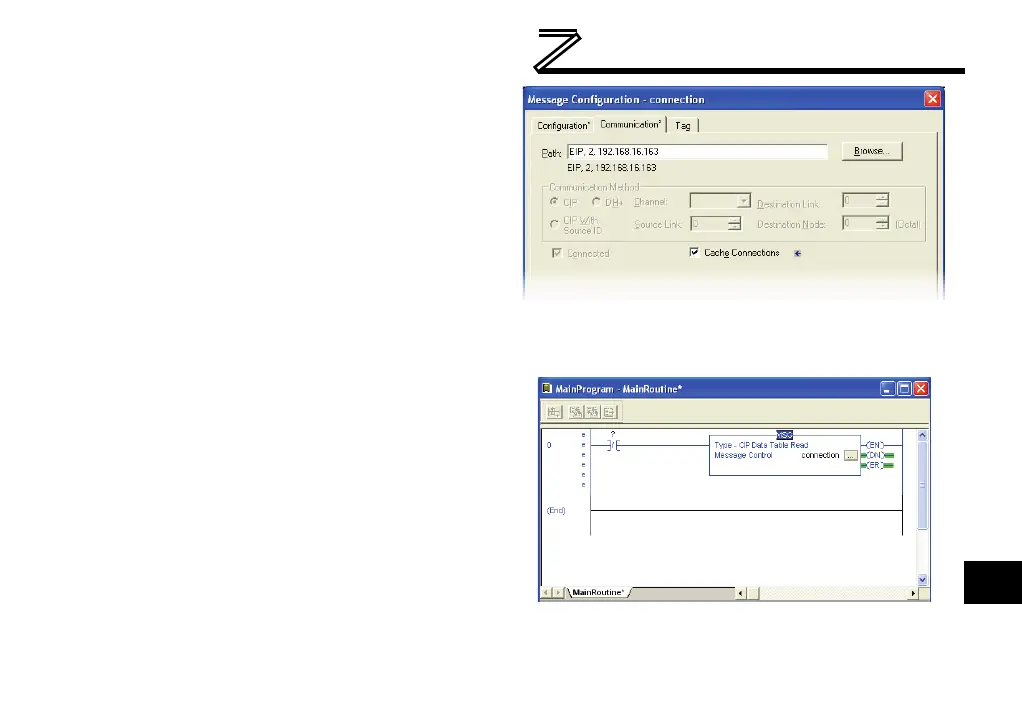

Figure 60: Setting the Communication Path
Figure 61: MainRoutine

Mitsubishi 700 Series Specifications

General

Control Method	Vector Control
Overload Capacity	150% of rated current for 60 seconds
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short circuit
Communication Options	RS-485, Profibus, Ethernet
Output Power Range	0.4 kW to 630 kW
Cooling Method	Forced air cooling (fan) (Varies by model)
Operating Temperature	-10 to +50°C (Varies by model, may be derated at higher temperatures)
Storage Temperature	-20 to +65°C
Humidity	95% RH or less (non-condensing)
Altitude	Up to 1000 m above sea level (Derating may be required above 1000 m)
Enclosure Rating	IP20
Model	FR-A700, FR-F700, FR-E700, FR-D700, FR-S700
