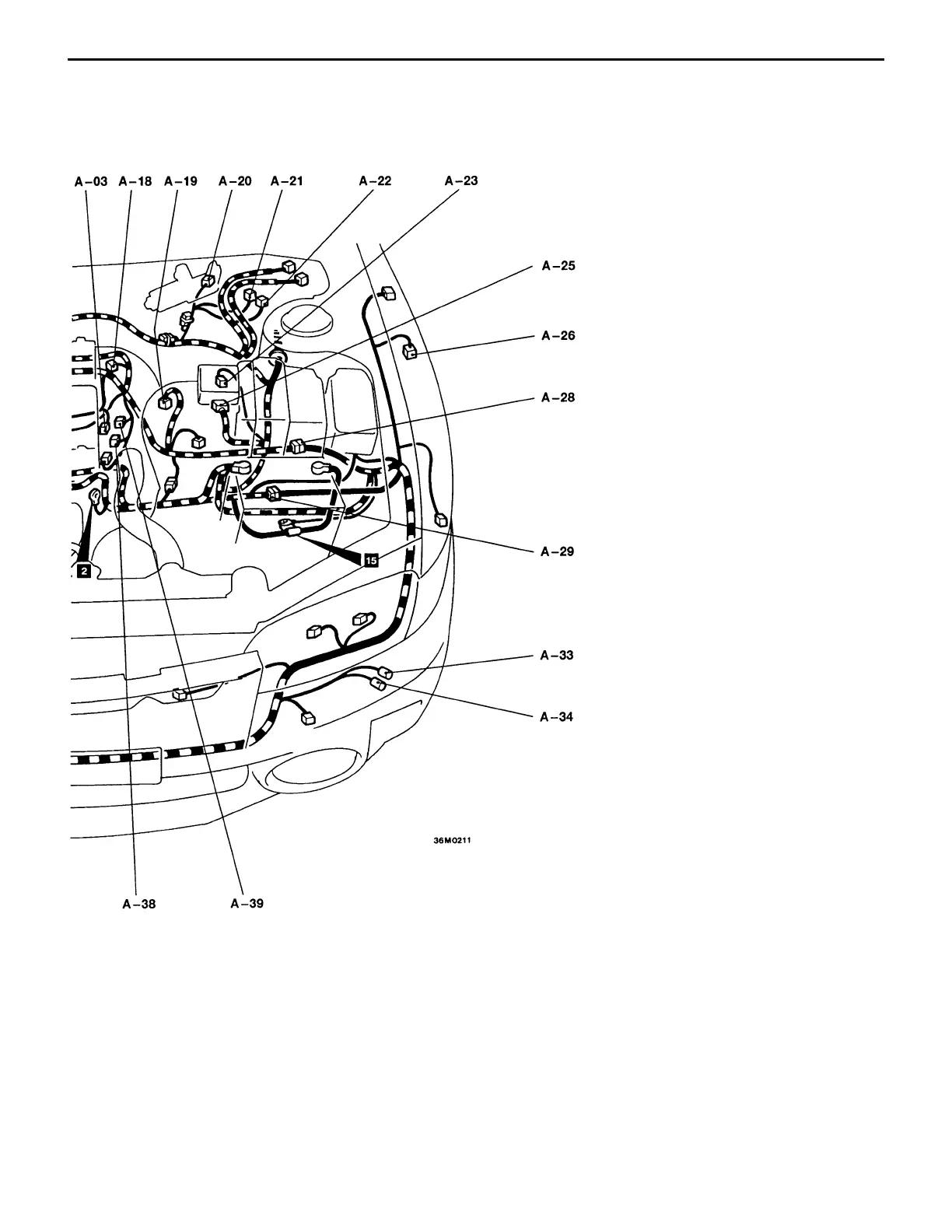

– Engine Compartment
WIRING HARNESS
CONFIGURATION DIAGRAMS
C-3
A-29 (2-B) Front harness and battery harness
combination
A-33 (1) Horn (LH)
A-34 (1) Horn (LH)
A-35 (2-BR) Outside air temperature sensor <vehicles
with fully automatic air conditioner>
A-38 (2-B) Engine coolant temperature sensor
A-39 (1-B) Engine coolant temperature gauge unit
A-45 (1) Horn (RH)
A-46 (1) Horn (RH)
A-47 (2-G) Rear washer motor
A-48 (2) Windshield washer motor
A-49 (2-BR) Dual pressure switch
A-50 (2-B) Front speed sensor (RH) <vehicles with
ABS>
To Next Page
