MANUAL TRANSMISSION – Transmission Assembly
22A-7
TRANSMISSION ASSEMBLY
REMOVAL AND INSTALLATION
Pre-removal Operation
(1) Transmission Oil Draining (Refer to P.22A-3.)
(2) Transfer Oil Draining (Refer to P.22A-3.)
(3) Under Cover Removal
(4) Front Exhaust Pipe Removal (Refer to GROUP 15.)
(5) Battery and Battery Tray Removal
(6) Air Cleaner Assembly Removal
Post-installation Operation
(1) Air Cleaner Assembly Installation
(2) Battery and Battery Tray Installation
(3) Front Exhaust Pipe Installation
(Refer to GROUP 15.)
(4) Under Cover Installation
(5) Transfer Oil Supplying (Refer to P.22A-3.)
(6) Transmission Oil Supplying (Refer to P.22A-3.)
(7) Shift Lever Operation Check
(8) Speedometer Operation Check
1
2
3
4
5
6
7
8
8
Unit: Nm {kgf@m}
49 {5.0}
98 {10.0}*
88 {9.0}
19 {1.9}
48 {4.9}
19 {1.9}

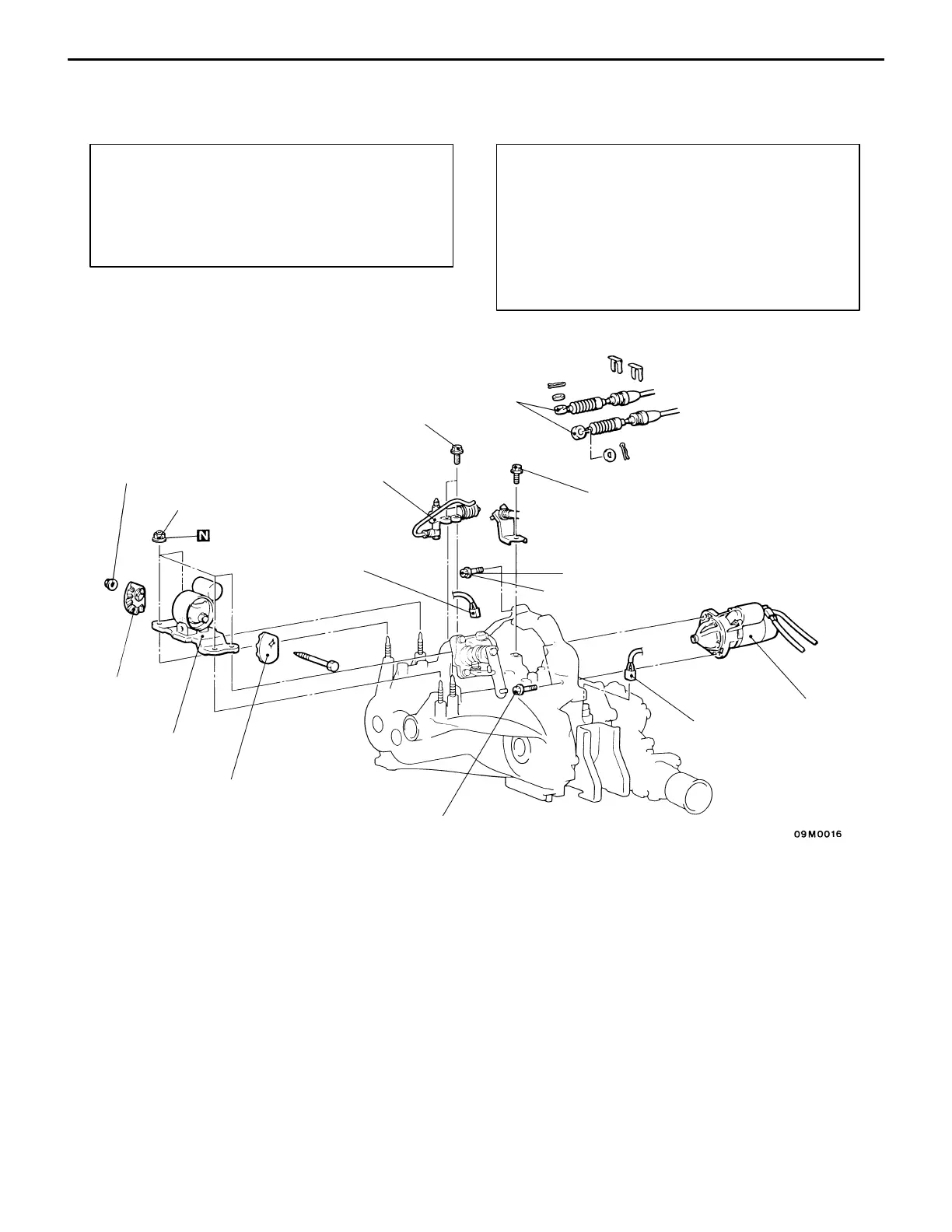

Removal steps
1. Shift cable and select cable con-
nection
2. Backup lamp switch connector
3. Vehicle speed sensor connector
AA" 4. Starter motor
5. Clutch release cylinder connection
6. Transmission assembly upper part
coupling bolts
7. Transmission mount bracket
8. Transmission mount stopper
D Engine assembly supporting
Caution
Mounting locations marked by * should be
provisionally tightened, and then fully tightened
when the body is supporting the full weight of the
engine.
To Next Page
