BODY – Hood
42-2
HOOD
REMOVAL AND INSTALLATION

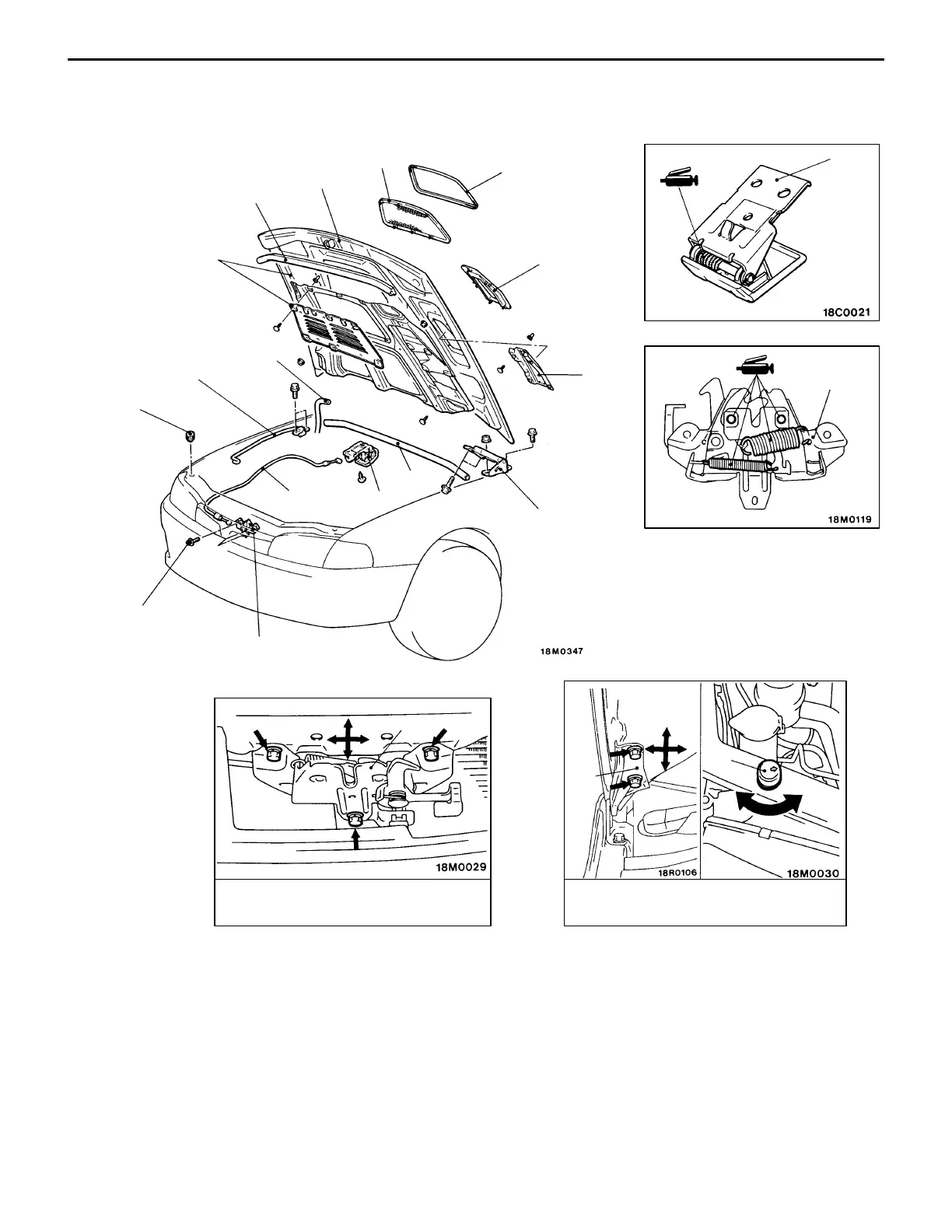

Adjustment of hood step and hood
striker linkage
Adjustment of clearance and height
around hood
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Unit: Nm {kgf@m}
9 {0.9}
1
2
15
6
1
1. Hood latch
2. Hood lock release handle
3. Hood weatherstrip
4. Hood weatherstrip
5. Hood insulator
6. Bumper
7. Hood support rod
8. Hood outlet garnish weatherstrip
9. Hood outlet garnish
10. Hood inlet garnish, upper
11. Hood inlet garnish, lower
Hood lock release cable removal
steps
D Splash shield <Driver’s side>
12. Hood lock release cable
Hood and hood hinge removal
steps
13. Washer hose connection
14. Hood
15. Hood hinge
Caution
For hood hinge and hood mounting, use only
specially surface-treated bolts.
