MANUAL TRANSMISSION OVERHAUL – Center Differential
22B-46
CENTER DIFFERENTIAL

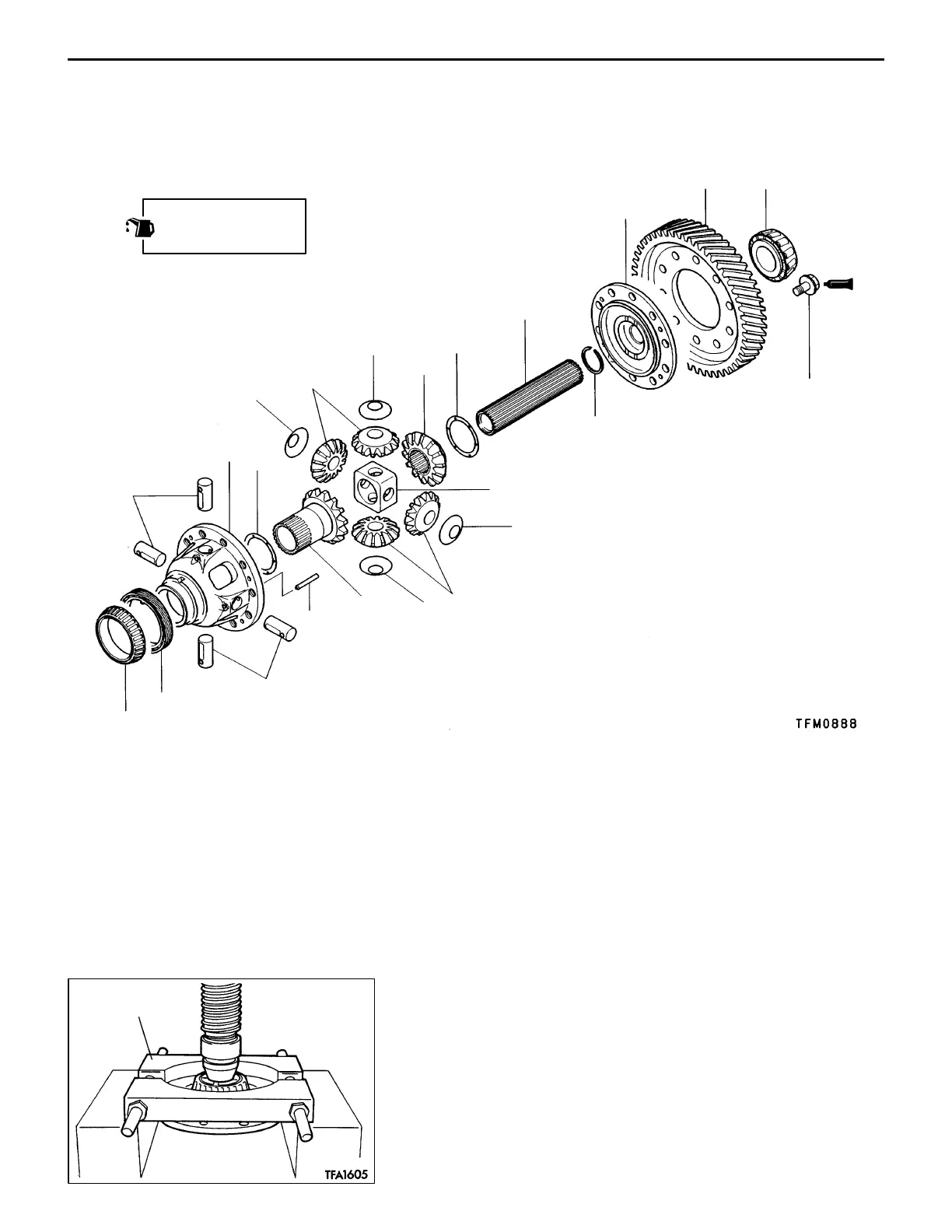

DISASSEMBLY AND REASSEMBLY
5
4
3
2
1
6
15
16
17
7
8
9
10
11
12
13
14
12
11
12
9
12
Apply gear oil to all
moving parts before
installation.
132 {13.5}
Unit: Nm {kgf@m}
Disassembly steps
"DA 1. Center differential drive gear
"CA 2. Center differential flange
AA""BA 3. Taper roller bearing
"CA 4. Snap ring
"CA 5. Front output shaft
"CA 6. Spacer
"CA 7. Side gear
"CA 8. Lock pin
"CA 9. Pinion shaft
"CA 10. Pinion shaft holder
"CA 11. Pinion
"CA 12. Washer
"CA 13. Side gear
"CA 14. Spacer
AB""AA 15. Taper roller bearing
16. Speedometer drive gear
17. Differential case
DISASSEMBLY SERVICE POINTS
AA" TAPER ROLLER BEARING REMOVAL
Use the special tool to remove the taper roller bearing.
MD998917
