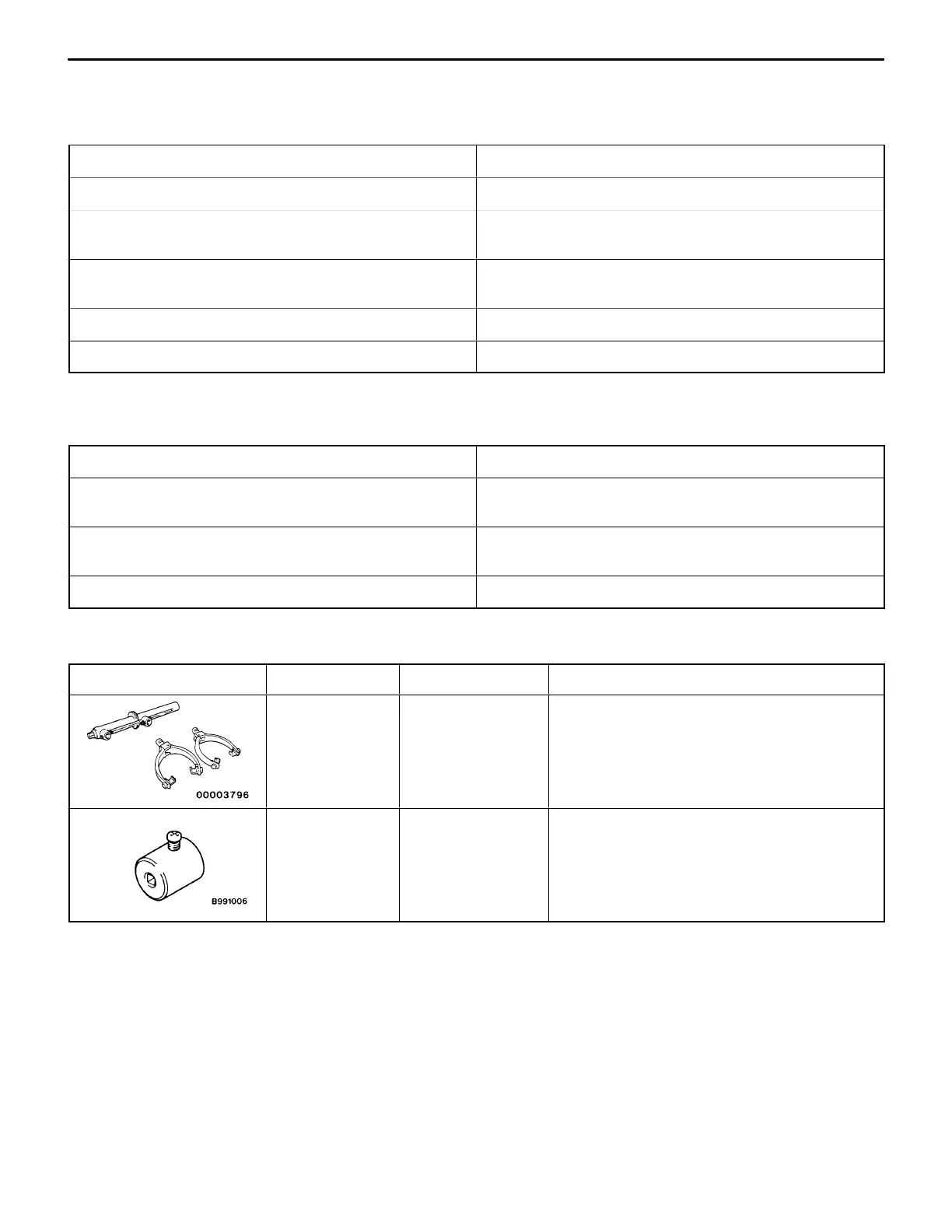

FRONT SUSPENSION – Service Specifications / Special Tools
33A-2
SERVICE SPECIFICATIONS
<EVOLUTION-IV>
Items Standard value
Toe-in mm –3 X 3
Camber –1_00’ ± 30’
(difference between right and left wheel: less than 30’)
Caster 3_50’ ± 30’
(difference between right and left wheel: less than 30’)
Kingpin inclination 13_25’
Lower arm ball joint rotation starting torque Nm {kgf@cm} 2.0 – 8.8 {20 – 90}
<EVOLUTION-V>
Same as EVOLUTION-IV except for following.
Items Standard value
Camber (selectable from 2 options) –1_00’ ± 30’ or –2_00’ ± 30’
(difference between right and left wheel: less than 30’)
Caster 3_54’ ± 30’
(difference between right and left wheel: less than 30’)
Kingpin inclination 14_18’
SPECIAL TOOLS
Tool Number Name Use
A
B
A: MB991237
B: MB991238
A: Spring
compressor
body
B: Arm set
Coil spring compression
MB991006 Preload socket Lower arm ball joint rotation starting torque
measurement
